Specifications
1. 2 Fiber + 6 copper;2.Multi-mode/Single-mode;
3.ST/SC/FC port could be choosen.

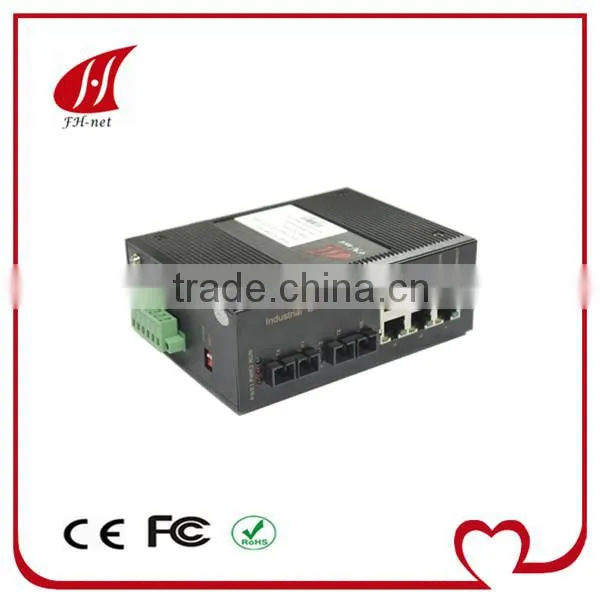

FHC2006E Industrial Ethernet Switch 2 Fiber + 6 copper
Overview
Managed Industrial Rail Switch is based on networking topology and comes with a special management
function, V2.0 management, which is developed by FH-NET. With the terminal management software, It
can realize the integrated management for the whole network. It also has 24V redundant power inputs. It
offers two fiber ports, and six TP ports.
Features
High-performance Industrial Ethernet Switch
•10/100Base-T/TX Ethernet ports, adaptive, full/half duplex, auto MDI/MDI-X connection
•100Base-FX fiber ports, single mode/multimode, full duplex
•High speed redundant ring with recovery time < 100ms
•Supports VLAN to control broadcasting domain and segment flow.
•Alarm relay output power supply and port link.
•Broadcast storm control
Powerful Management Function
•Integral management platform for the entire network based on RS232 standard. The
management system is immune against the attack of virus or hacker since the management
channel is independent to service channel.
•Special-designed management software for upper PC realizes the auto-configuration of IP
address for networking devices and auto-scan/spanning of network topology.
•Individual naming for each devices in the network.
•Setting and query of VLAN.
•Setting and query for alarm of power and ports link.
•Setting and query for port working mode, prioritization, and rate
Industrial Power
•Industrial power input of DC24V(DC18V~36V).
•Reliable protection for EMC and against over-current/over-voltage.
•Redundant power input.
Rugged Design
•Ribbed heat-removal design (fanless); operation at -35°C to +75°C
•Solid IP40 housing
Easy DIN-Rail mounting or optional wall-mounting
Parameters
Product Description
Description Managed Industrial Ethernet Rail Switch, networking topology
based, store and forward switching mode, Ethernet (10 Mbit/s)
and Fast-Ethernet (100 Mbit/s)
Port Type and Quantity 2 x 100Mbit/s, optical fiber, redundant
6 x 10/100Base-T/TX, TP cable, RJ45 Socket (shielded),
auto-negotiation, auto-polarity
More Interface
Power Terminal 2 x DC power terminal, 3-core
Alarm Terminal 1 x alarm output terminal, 2-core
RS232 interface 1 x RJ45 socket
Network size - length of cable
Twisted pair (TP) 100m
Multimode fiber Distance: 2-5km
Wavelength: 1310nm
Optical power: >-20dbm
Single mode fiber Distance: 40km(60km, 80km for special requirement)
Wavelength: 1310/1550nm
Optical power: >-13dbm
Network size – cascadibility
Line - / star topology Any
Ring structure (DT-Ring) 50 switches (recovery time < 300ms
Power requirements
Power input 18V – 36V redundant DC power input
Power consumption <6W
Performance
Transfer Rate 148810pps
MAC Address Table Size 1K
Service
Diagnostics LEDs (power, link status, port rate, management status), fault
relais (24VDC/1A)
Configuration
Security Port security (MAC based and IP based)
Other services Prioritization (IEEE 802.1D/p), VLAN (802.1Q),
broadcastlimiter, flow control (IEEE802.3x)
Redundancy
Redundancy functions DT-Ring (ring structure), redundant power input
Ambient conditions
Operating temperature -35°C to +75°C
Storage/transport temperature -45°C to +85°C
Relative humidity (non-condensing) 10% to 95%
MTBF 10years
Mechanical construction
Dimensions (W x H x D) 55.4mm x 142mm x 120.5mm
Mounting DIN-Rail or Wall mounting
Protection class IP40
EMC interference immunity
EN 61000-4-2 electrostatic discharge (ESD) +4 kV contact discharge, +8 kV air discharge
EN 61000-4-3 electromagnetic field 10 V/m (80 - 1000 MHz)
EN 61000-4-4 fast transients (burst) +2 KV power line, +1 kV data line
EN 61000-4-5 surge voltage Power line: +2 kV (line/earth), +1 kV (line/line), +1 kV
data line
EN 61000-4-6 conducted immunity 3 V (10 kHz - 150 kHz), 10 V (150 kHz - 80 MHz)
EMC emitted immunity
FCC CFR47 Part 15 FCC CFR47 Part 15 Class A
EN 55022 EN 55022 Class A
Approvals
Certificate FCC, CE
Application
