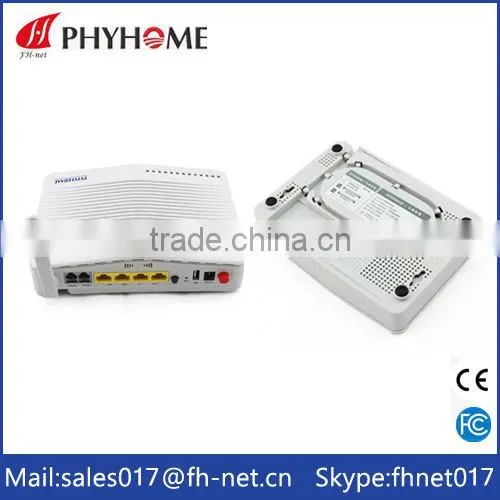

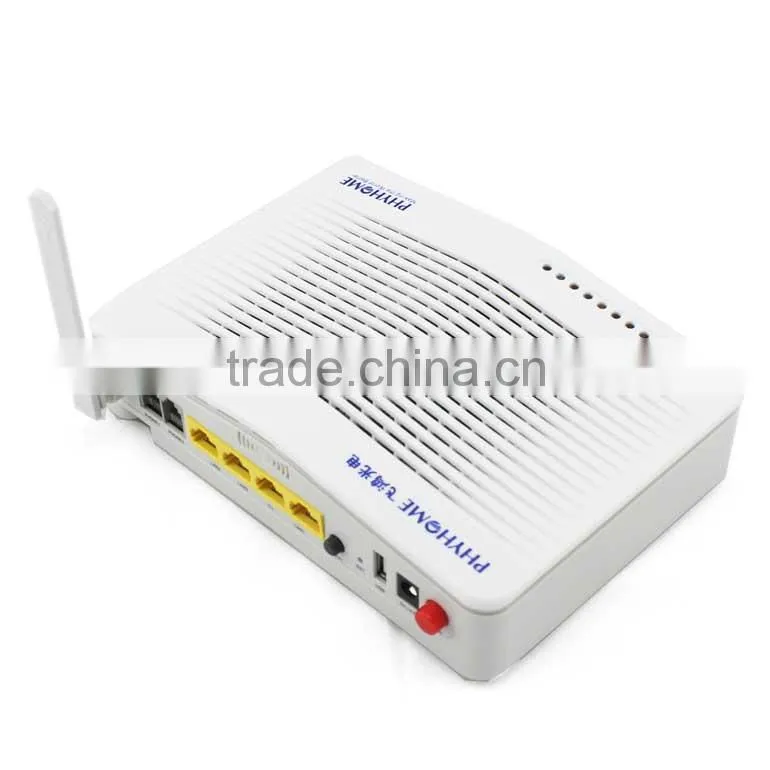

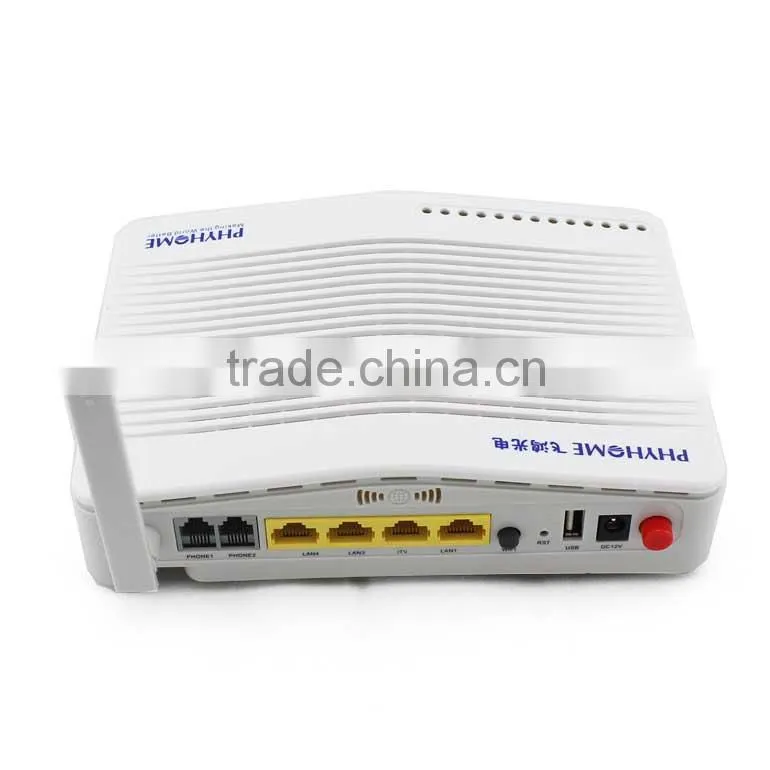

FHR2421B GPON ONT/HGU
Introduction
GPON ONT/HGU is designed for FTTH and networking service providers. FHR2421B is developed by FH-net Optoelectronics based on the Gigabit EPON technology, has a high cost performance, it supports the 802.11n wireless networking technology(T/R), support 2 layer, 3 layer or more layer VoIP. It is high stability and easy to maintain, has multi-service QoS quality guarantee. And It is fully compliant with technical regulations such as IEEE802.3ah and technical requirement of GPON Equipment from China Telecom, China Unicom.
Characteristics
- Main service: 1GE+3FE+2VOIP+1WIFI
- Plug and play, integrate auto detection, auto configuration and auto firmware upgrading
- Integrate OMCI and TR-069 remote configuration and maintenance
- Support flexible QinQ VLAN,DHCP server/relay and IGMP/ MLD multicast monitoring function
- Support diagnostic monitoring and remote disabling of fiber optical
- Compatible with Huawei,ZTE and Fiberhome OLT
- Support 802.11n WiFi(T/R)function
- Support NAT and firewall function
- Support IPv4 and IPv6 dual stack
- POTS integrated circuit test complies GR-909
- WAN support networking bridge, router and bridge/router mixed mode
Specification
Technical items |
Descriptions |
Fiber port |
1 GPON interface, SC single-mode/single-fiber, Downstream rate 2.5Gbps, Upstream rate 1.25Gbps |
Wavelength |
Tx 1310nm, Rx 1490nm |
Fiber interface |
SC/PC |
RX sensitivity |
<-27dBm (1490nm) |
WLAN |
IEEE802.11b/g/n,300Mbps, a built-in antenna |
LAN |
1*10/100/1000Mbps+3*10/100Mbp adaptive Ethernet ports, full/half duplex, RJ45 interface |
Throughput |
Throughput can reach 900Mbps or more |
POTS |
2*FXS, RJ11 connector |
DC power |
12V 1.5A, external AC-DC power adapter |
Button |
Reset, power, WIFI |
Power |
≤10W |
Operation |
Working temperature: -5~+55℃ working humidity:10~90%(non-condensation) |
Storage |
Storage temperature: -30℃~+60℃ storage humidity: 10~90%(non-condensation) |
Dimension |
185*145*50mm(length*width*height) |
Net weight |
≤0.4Kg |
Data Service Functions
- Full speed 1G non-blocking switching
- 2048 MAC address table
- 16 LAN
- Support VLAN QinQ, transparent, tag, translation, trunk, etc.
- Integrated port monitoring, port mirroring, port rate limiting, port SLA, etc
- Support auto polarity detection of Ethernet ports (AUTO MDIX)
- Integrated IEEE802.1p QoS with four level priority queues
- Support IPv4 IGMP snooping and IPv6 MLD snooping
- Support bridging, router and bridging/router mixed mode
POTS service function
- support SIP voice protocol
- support H.248 voice protocol
- SIP protocol: ISP provide the port number of the main SIP proxy server and terminal VOIP
- Value range is 1-65535, system default value is 5060
- H.248 protocol: ISP provide port number of the spare MGC server and VOIP terminal
- Value range is 1~65535, system default value is 2944
- Port ringing current voltage: 50±10VAC,30±10H
- Port type POTS(VOIP)
- Support G.711 A-Law/u-Law,G729A/B,G.723.1-5.3/6.3,G.726.etc.voice coding/compressed technology
- Support auto switch in main interface and standby interface by the software
Wi-Fi service
- Support Integrated 802.11b/g/n, 300Mbps
- Support 64 connections
- Support WEP and WPA/WPA2 security protocols.
Application chart
Popular Models

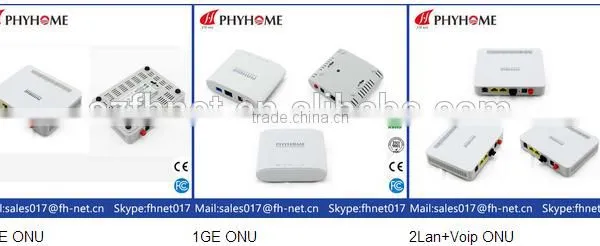

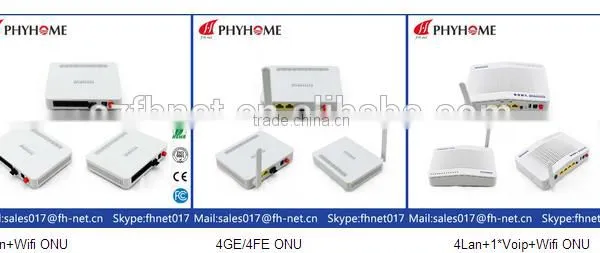

GPON EPON ONU 2LAN(1GE+1FE)+1WIFI
GPON EPON ONU 1GE
GPON EPON ONU 4GE/4FE
GPON EPON ONU 2LAN(1GE+1FE)+1POTS
GPON EPON ONU 4LAN(1GE+3FE)+1POTS+1WIFI

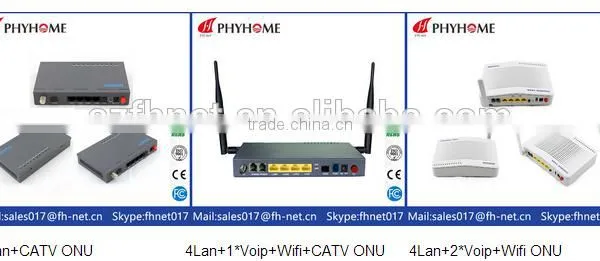

GPON EPON ONU 4GE+1CATV
