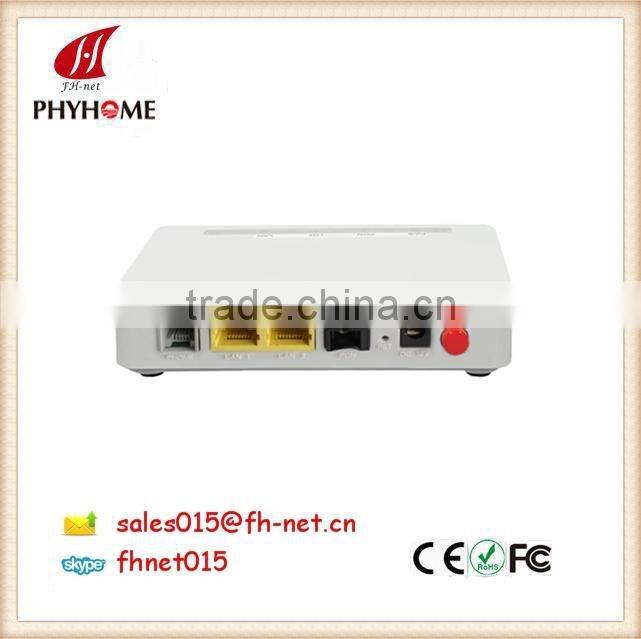

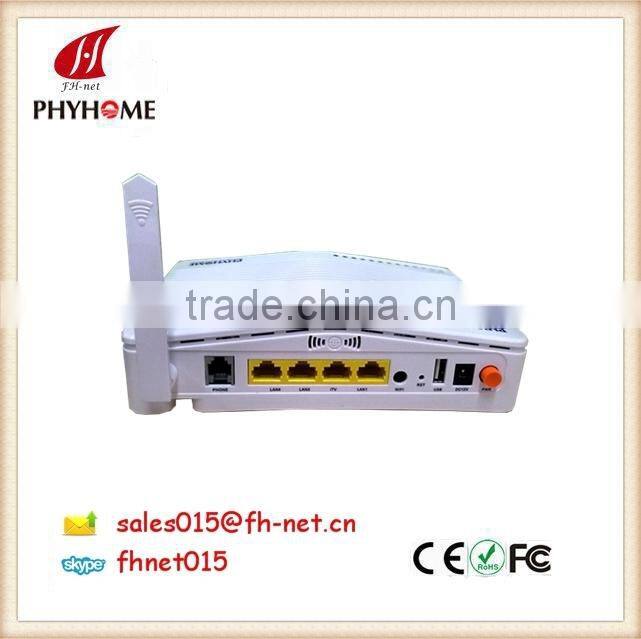

EPON ONU 2 Ethernet port +1VOIP/POTS compatible with huawei/zte OLT

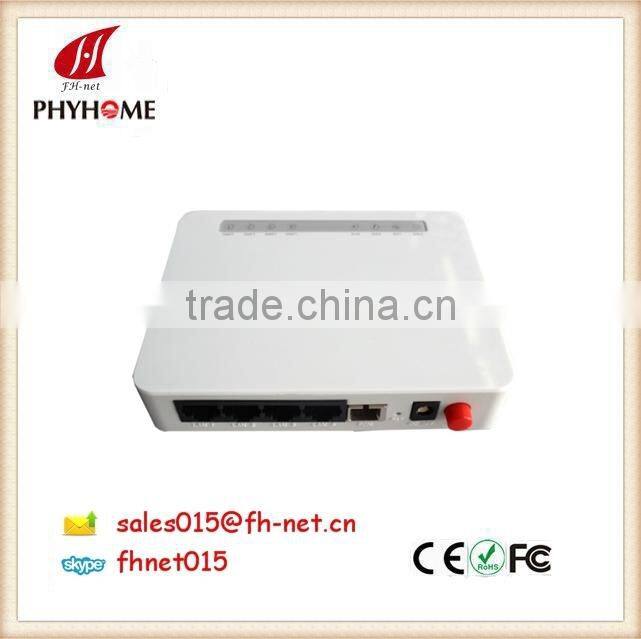

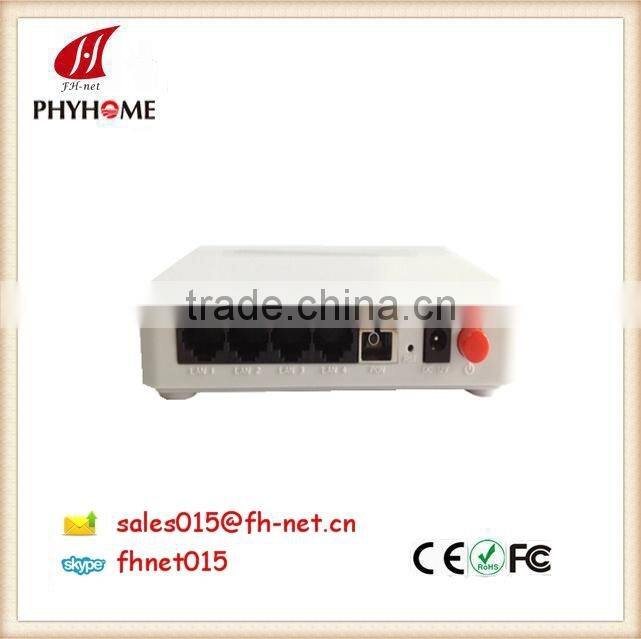

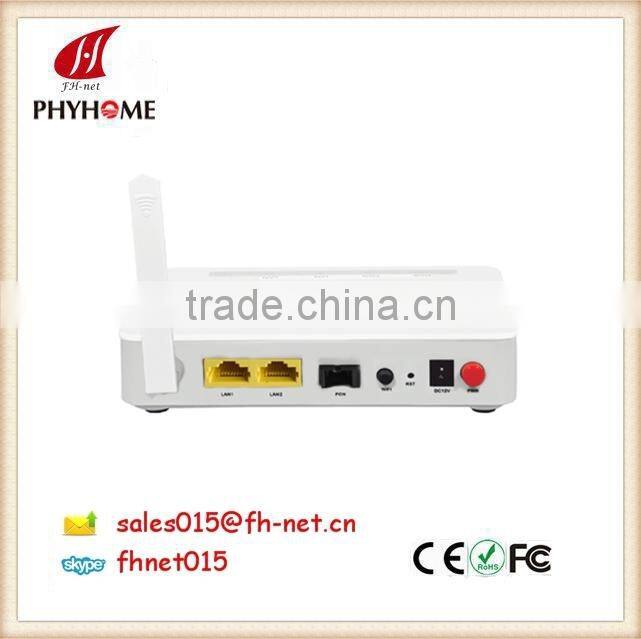

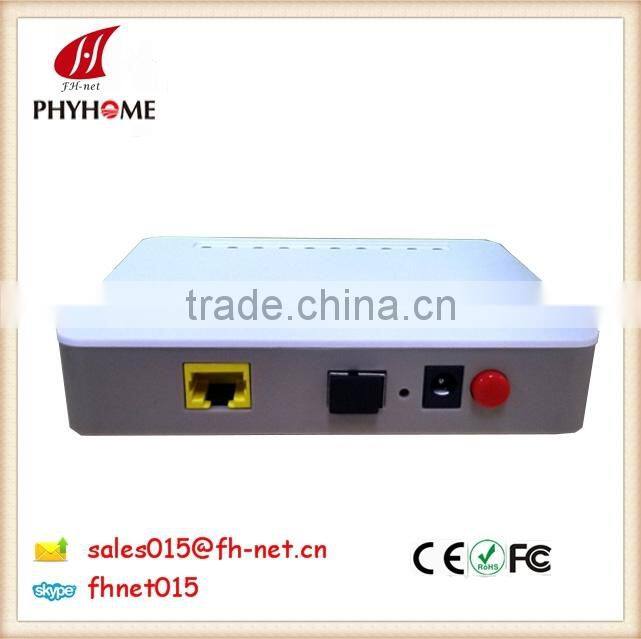

        EPON 1GE ONU               EPON 4FE/4GE ONU         EPON 2LAN+VOIP ONU        EPON 2LAN+WIFI ONU

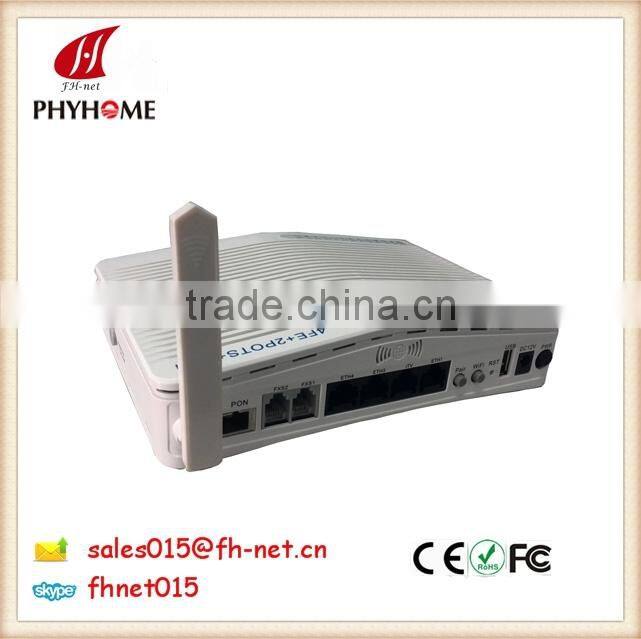

EPON 4+1VOIP+1WIFI        EPON 4+2VOIP+2WIFI+CATV      EPON 4LAN+1CATV            EPON 4LAN+1WIFI

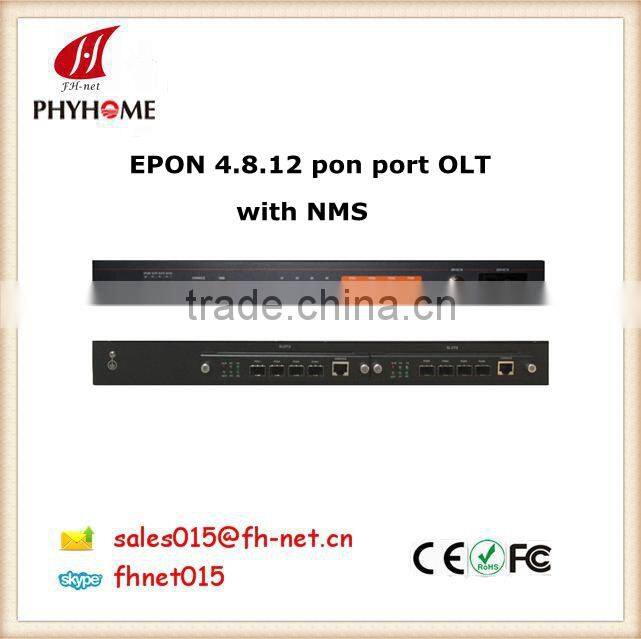

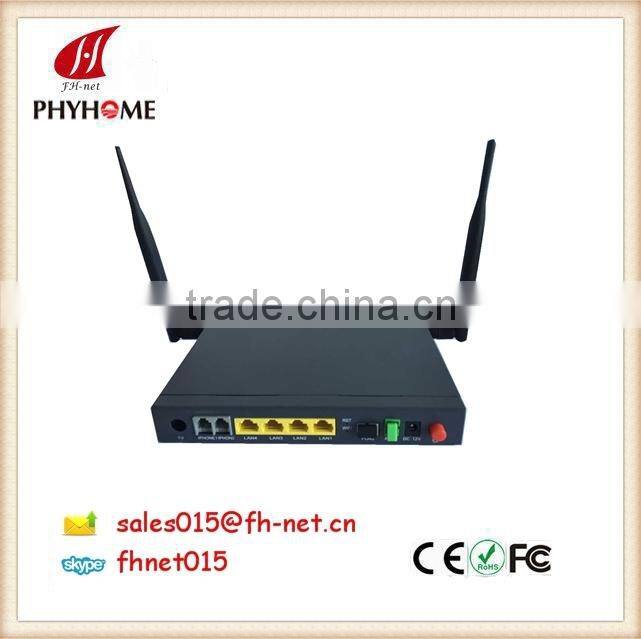

EPON 4LAN+2VOIP+WIFI     EPON 4.8.12 PON PORT OLT

Introduction

EPON FHR1210K EPON ONT/HGU is wholly designed by Shenzhen FH-Net Optoelectronics Co., Ltd, to fulfill FTTH (Fiber To The Home) and the demand of fixed network operators. It is based on the Gigabit EPON technology and has high cost performance. It complies with the technology of Layer 2&3 and even higher layer VoIP as well. It is high-reliable and easy to maintain, support multiple QoS service guarantees. And It is fully compliant with IEEE802.3ah and technical requirement of EPON Equipment from China Telecom, China unicom.

Special features

l         Main services:1GE+1FE+1VOIP

l         Plug and play, integrated technology of auto detecting, auto configuration, and auto firmware upgrade.

l         Integrated technology of OMCI, TR069 remote configuration and maintenance.

l         Support flexible QinQ VLAN, DHCP Server/Relay and IGMP/MLD multicasting and monitoring.

l         Support fiber transceiver diagnostic monitoring, fiber transmitter remote disable.

l         Fully compatibility with OLT of Huawei, Fiberhome, ZTE, etc.

l         Support NAT, Firewall function.

l         Support IPv4 and IPv6 dual stack.

l         Port’s Integrated circuits testing complies with GR-909.

l         The WAN port supports bridge, router and bridge/router mixed mode.

Technical parameters

Data Service Functions

1)         Full speed 1G non-blocking interchange.

2)         2048 MAC address table.

3)         16 VLAN IDs

4)         Support VLAN QinQ, transparent, tag, translation, trunk, etc.

5)         Integrated port monitoring, port mirroring, port rate limiting, port SLA, etc.

6)         Support auto polarity detection of Ethernet ports (AUTO MDIX).

7)         Integrated IEEE802.1p QoS with four level priority queues.

8)         Support IPv4 IGMP snooping and IPv6 MLD snooping.

9)         Support bridging, router and bridging/router mixed mode.

POTS Service Functions

1)         Support SIP protocol

2)         Support H.248 protocol

3)         SIP protocol: Provided by the ISP, the port number of communication between SIP proxy server and VOIP terminal. It ranges from 1 to 65535, the system defaults is 5060.

4)         H.248 protocol: Provided by the ISP, the port number of communication between alternate MGC and VOIP terminal. It ranges from 1 to 65535, the system defaults is 2944.

5)         Port ringing voltage: 50±10VAC, 30±10H

6)         Port type is POTS(VOIP)

7)         Support voice coding/compression G.711 A-Law/u-Law,G729A/B,G.723.1-5.3/6.3,G.726 etc.

8)         Support standby software interchange and auto switching
