Specifications
Carbon epoxy resinFrom an ISO certified Company
Quick Delivery

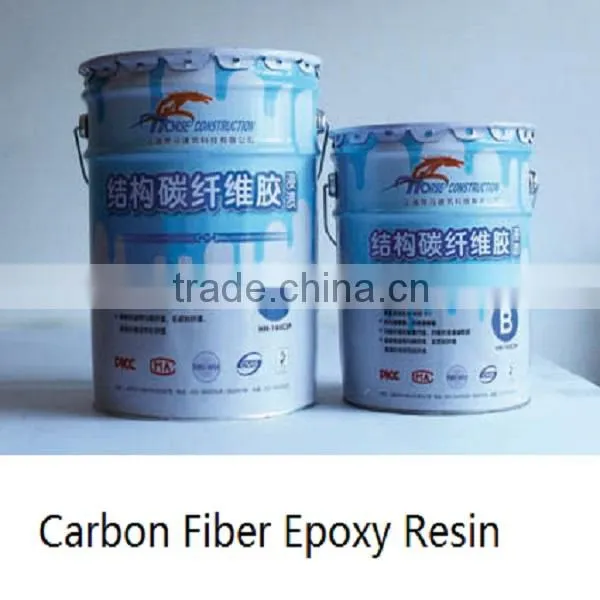

Carbon Epoxy Resin

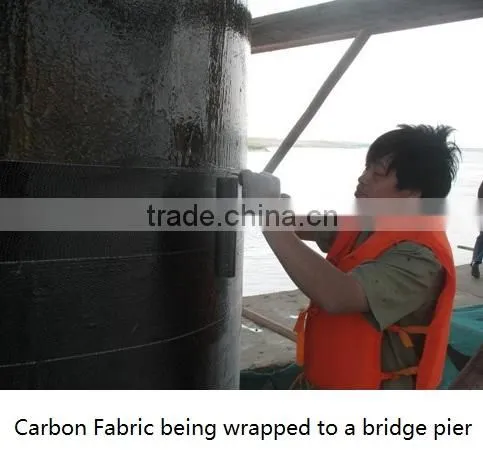

We've three models of Epoxy resin used during the wrapping of carbon fabrics to concrete structures like walls, peirs etc..
| HM-180 Primer | Used in priming the base subsrate |
| HM-180CE Leveling Adhesive | Used in leveling of the base |
| HM-180C3P Fabric Impregnator/ Adhesive | Used in impregnating the carbon fabric and pasting it to the substrate |
Mostly the use of HM-180 and HM-180CE is skipped.
HM-180 primer
Appearance |
Component A: transparent viscous liquid |
Operable time (min) |
>30 |
Component B: brown viscous liquid |
Finger touch dry time(20 °C,h) |
1-2 |
|
Bonding strength |
C60 concrete damage |
Mixture ratio |
2:1 |
HM-180CE leveling adhesive
Appearance |
Component A: viscous paste |
Operable time (min) |
>40 |
|
Component B: viscous paste |
Operating temperature (°C) |
5-40 |
||
Steel – steel bonding strength (MPa) |
shear |
20 |
Finger touch dry time(20 °C,h) |
1-2 |
tensile |
35 |
Mixture ratio |
2:1 |
|
HM-180C3P Fabric impregnator/adhesive
Appearance |
Component A: viscous liquid |
Operable time (min) |
>30 |
|
Component B: viscous liquid |
Operating temperature (°C) |
5-40 |
||
|
Finger touch dry time(20 °C,h) |
1-2 |
||
Basic properties after pasted carbon fiber cure | ||||
Standard value of tensile strength (MPa) |
≥40 |
Ultimate elongation (%) |
≥1.5 |
|
Elastic modulus (MPa) |
≥2500 |
Mixture ratio |
2:1 |
|
All the above mentioned products are ideal for Carbon fiber fabric baseconcrete reinforcement.
In case you need epoxy resins for making prepregs or carbon laminates please do contact us.
We can modify the product as per your needs.. We can adjust its viscosity, curing time as per your requirement.

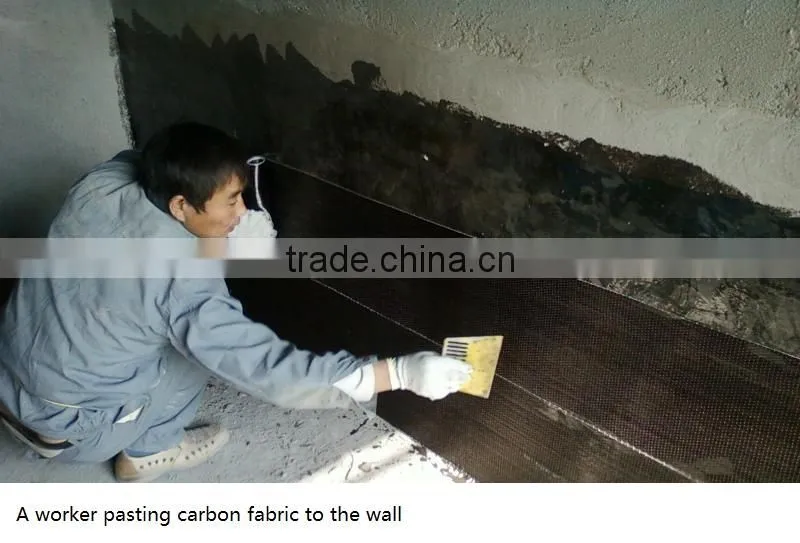

Application of Carbon fiber fabrics and Epoxy adhesives
