Outdoor Highbar Light,led High Bay Light for Outdoor

Outdoor Highbar Light,led High Bay Light for Outdoor photo-1

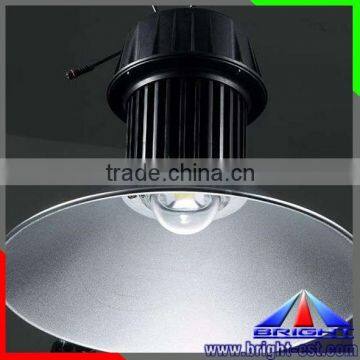

Outdoor Highbar Light,led High Bay Light for Outdoor photo-2
Outdoor Highbar Light,led High Bay Light for Outdoor photo-3
Outdoor Highbar Light,led High Bay Light for Outdoor photo-4
Outdoor Highbar Light,led High Bay Light for Outdoor photo-5
Outdoor Highbar Light,led High Bay Light for Outdoor photo-6
US$ 1 - 25 MOQ: 1 Piece
Key Specifications
Get Latest Price
LED Light Source:
Epistar Chip/Bridgelux Chip
Warranty(Years):
3
Input Voltage(V):
AC85-265V
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
LED Light Source Epistar Chip/Bridgelux Chip
Warranty(Years) 3
Input Voltage(V) AC85-265V
Lamp Power(W) 40
Lamp Luminous Flux(lm) 2900 Lm
Lamp Luminous Efficiency(lm/w) 90
Color Temperature(CCT) Other, white
Working Temperature(℃) -40, 60
Working Lifetime(Hour) 50000
Lamp Body Material Aluminum
IP Rating IP67
Certification CE
Place of Origin Guangdong, China
Brand Name BRIGHT highbar light
Model Number BG-1001-40W highbar light

Outdoor highbar light,led high bay light for outdoor

1.3 years warranty
2.waterproof high bay light
3. high bay light no UV,no IR
4.fast delivery time

5.T/T,Western Union,Paypal ect

Material

High-purity Aluminium reflector, heat sink and hanging hook
Aluminium alloy housing
Acrylic glass cover high bay light
High powerful LED light source
High efficiency imported LED driver

Features

· Use single powerful LEDas the light source,using our proprietary LED encapsulation.

· Utilizes the special design of multichip single module. Imported high brightness semiconductor chips.

· High heat conductivity, low luminous decay, pure light color and no ghosting.

· Integrative design for heat sink and housing; The LED is closely connected to the surface.The heat from the LED is removed through the heat dissipation wing and also by air ventilation. This ensures 50,000 hours life-span for the LED. If it works 11-12 hours per day, it can work over 10 years.

· The surface is passed through anodic oxidation treatment.Its structure is compact and beautiful. It can meet the requirement of IP65. It has good capacity like antisepticising, waterproofing, and dust prevention.

· Obvious power-saving efficiency. Use powerful LED light source and high efficiency imported LED driver. Compare with sodium lights, it can save electricity around 60%.

· Environment friendly. Do not have lead, hydrargyrum and any other contamination. No pollution to the air.

· Can present the original color of the objects, it has varies of colors to choose which can meet the requirements in different environments. It eliminates the dullness of environments caused by the lower color temperature, like sodium lamp, or higher color temperature, like mercury lamp. This could satisfy the feeling of those who appreciate the lighting.

· The industrial light is controlled by constant current and constant voltage. Its working voltage (AC85V-265V) can overcome the electrical grid, noise pollution and unstable light caused by ballast. It can also eliminate the glare and fatigue.

· Can be a good decoration light. Its surface is specially treated. The housing can be with different kinds of colors.

· Easier to be installed and to be unloaded; Can be used in different places.

Product Description

 LED Parameter

Physical parameter

Input Power Rating

40W

Qualitative Chimney

Aluminum

LED Quantity

1PCS

size

285*235*160mm

Color

Black,Silvery white

Weight

5.0kg

Optical parameters

*Luminous Flux

4000-4400Lm

*



*Light Effect

80lm/W±5%

*Color Temperature

6500K-7500K

*Color Rendering Index

73.5±5%

**Beam Angle

60°   120°

 Illuminance Area

8M

55.83/203.0Lux

10M

23.93/90.22Lux

12M

13.46/50.75Lux

Electrical parameters

***Input Voltage

100~240VAC+/-10%

***Supply Current

0.434A@230VAC

***Power Factor

0.97@230VAC

***Power Efficiency

88%

Others

   Connect Wire

Brown

Blue

Yellow/Green

Ambient Temperature

-25°C ~  +60°C

Storage Temperature

Normal temperature

Working Life-span

>30000H

Pack

Paper skin

******NOTE:there will be light effect difference with different color temperature led, deviation<5%******



Product Application Considerations

· This product is aluminum items, during the replacement process do not squeeze hardly so as to avoid shell deformation and rupture of the glass mask.

· Do not store this product in environment of high temperature and humidity, prohibit directly submerged in water.

Product picture:

Outdoor highbar light,led high bay light for outdoor



Outdoor highbar light,led high bay light for outdoor



Outdoor highbar light,led high bay light for outdoor



Outdoor highbar light,led high bay light for outdoor



Outdoor highbar light,led high bay light for outdoor



Outdoor highbar light,led high bay light for outdoor

Our Services

1. Your inquiry will be reply within 24hours.

2. Well-trained ans experienced staffs to answer all your inquiries in English.

3. OEM service, customized lighting

4. Update quotation monthly

Packaging & Shipping

Package:

Outdoor highbar light,led high bay light for outdoor

express delivery

Outdoor highbar light,led high bay light for outdoor

Company Information

Our company:

Outdoor highbar light,led high bay light for outdoor



Outdoor highbar light,led high bay light for outdoor

Any questions, please don't hesitate to contact me, you're always welcome!
