CARTRIDGE PACKED 390ML Chemical anchoring adhesive

Specifications

Chemical anchoring adhesive
Simple Packaging/Easier to use
Quicker Delivery

Chemical anchoring adhesive

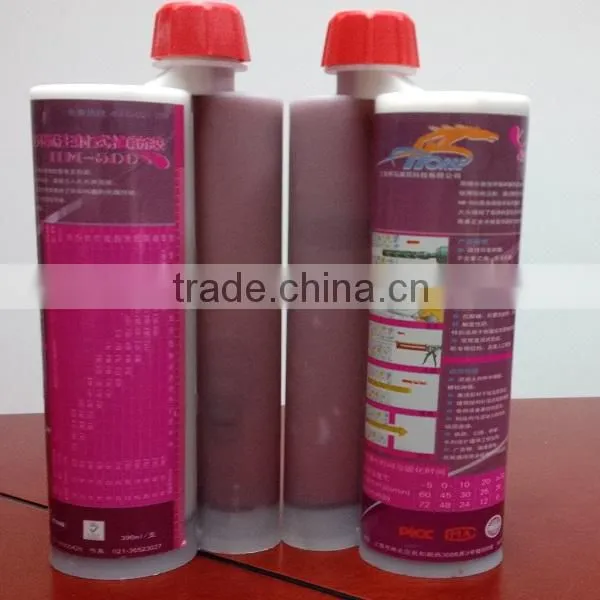

HM-500 Injectable Cartridge Packed Anchoring Adhesive



• Made from modified epoxy resin, free from styrene and toxicity
• Highly resistant to aging, temperature, acids, alkalis, seismic shocks, expansion etc.
• Lower moisture sensitivity and remains stable even in a damp environment
• Thixotropic, better suited to anchoring on the walls and ceilings.
• Cartridge packaged, comes with nozzle and proprietary dispensing gun

Technical Details

Volume: 390ml

Appearance: A (main agent): white paste
                        B (Hardener): red or black paste

Mixture ratio: 3:1

Viscosity: 18-22 Pa.S

Density of curing material: 1.50±0.10 g/cm3

Solvent Content: Less than 0.5%

Shelf life: 12 months



Operation and Curing period at different temperatures

Working Temperature in Celsius	-5	0	10	20	≥30
Operating Time in Minutes	60	45	30	25	20
Curing Time in Hours	72	48	24	12	6

Performance Details



Colloidal performance	Splitting tensile strength	≥8.5 Mpa
	Bending Stress	≥50MPa
	Compressive stress	≥60 Mpa
Adhesion performance	Steel-steel Bond Tensile anti-shear strength	≥16 Mpa
	Under the constraint drawing condition, ribbed steel bars and C30(φ25, L=150mm )	≥11 Mpa
	Adhesion strength of concrete C60(φ25, L=125mm)	≥17 Mpa



Application Range

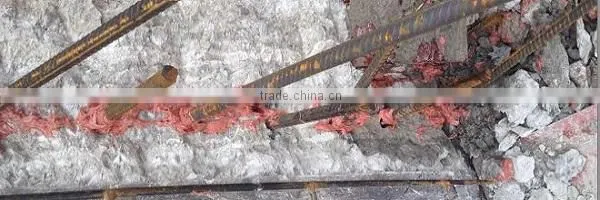

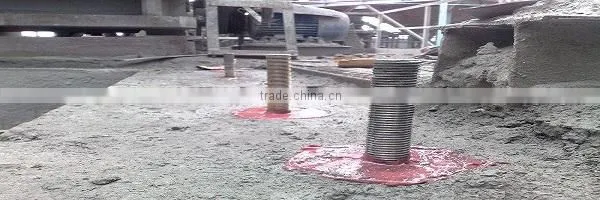

Used in anchoring of threaded rods, bolts, reinforcing bars and dowels into concrete base

Operation Process

Drill hole in accordance to industry regulations

Blow out the floating dust in the hole using gas reservoir first, then brush out the dust attached to the hole walls with brushes,

repeat many times, until the hole is completely clean

Install static mixer in the glue bottle, squeeze out the rubber compound without uniform mixing in the front part using the glue gun first,

and then inject glues into the hole;

Ensure the order of injecting glues from the hole bottom to the hole top, try not to mix into gas bubbles,

the rubber compound should fill over 2/3 depth of the hole;

The screwing of steel bar or screw: screw the steel bars or screws into the hole, and immediately twitch up and down

several times to ensure the glue evenly.

At normal temperature (25 °C), the curing time is 24 hours, the rod should not be touched during this period,

and it can bear immediately after curing.



Cautions

Drill holes in accordance with the required pore size and depth strictly

Clean the holes thoroughly

Inject the glue from the bottom, and pull out slowly;

Wait until complete curing before use

The construction workers of this product should take necessary productive measures (such as wearing masks, gloves, goggles)

notify fire prevention unit and maintain good ventilation on scene

If accidentally swallowed or splashed into the eyes, seek immediate medical help

Packaging/Storage/Transportation

• Thirty 390 ml cartridges packed in a carton.
• Each carton contains 10 nozzles
• Store in a cool, dry, ventilated place.
• Shelf life is 12 months only
• This product is non-toxic, belongs to non-dangerous category and can be transported as a general chemical building material.
