Full Height Turnstile Buy Direct From China Supplier With Low Price With Access Control Rfid Card Reader Stainless Steel Surface
- Tianjin Ningbo Dalian Shanghai Guangzhou .
You May Like
-
KBB Automatic Folding Door/ Tempered Glass CE/UL
-
Largest Automatic Folding Door/ Customized Door/tempered Glass CE/UL
-
KBB Automatic Folding Door/ Customized Door/tempered Glass CE/UL
-
ATM Curved Sliding Door With Dunkermotoren Motor
-
ATM Security Curved Door With Dunkermotoren Motor
-
ATM Security Curved Door With ce Certificate
Product Details
| Place of Origin | Beijing, China | Brand Name | KBB | |
| Model Number | KM027 | Open Style | Automatic | |
| Position | Commercial | Surface Finishing | Finished | |
| Type | Security Doors | Door Material | Aluminum Alloy |
Product Description
full height turnstile import direct from china supplier with low price access control rfid card reader stainless steel surface
* KBB Automatic Door Group is the largest automatic door manufacturer in China, even in Asia, also famous in the world .
* Our Doors had already sold to more than 70 countries in the world, the tallest building in South America called Titanium installed 4 units of our revovling door, others such as Hilton, Marriott, IKEA, the Shard are also our clients.
* Our after sale service team extend all over the world, the supports such as installation, maintenance, malfunction treating could be provided timely and perfectly .
KBB high efficiency security turnstiles is one of the best entrance control in the world, which could be equipped with almost any system of different buildings, such as access control, time and attendance, visitors, card transceivers, tickets and biometrics, as well as being able to handle CCTV and other additions.
KBB Full Height Turnstile
Full height turnstiles offer the ultimate in unmanned perimeter security and are available in several versions. Hollow section and solid stainless steel bars are used for the rotor arms and are arranged in a Y shape (three bar turnstile) or cross shape (cross turnstile) that rotate on a fixed central axis.
According to the requirements on site, passages can be divided into single, double, triple and quadruple versions. All full height turnstiles can be configured for single or bi-directional traffic flow.
Full height turnstiles offer exceptional high security and are often used in unmanned locations.
Their stainless steel construction allows use in indoor and outdoor locations, and they can be combined with various control systems. An option for canopy lighting is available on request, as well as mounting panels to allow the use of access control systems and intercoms.
No. | Parameter | Data | No. | Parameter | Data |
1 | Power supply | AC220V±10%,50HZ | 14 | Traffic flow | Normally close: 35 person/minute Normally open: 45 person/minute |
2 | Power | Work status less than 50W /channel,standby status less than 20W /channel | 15 | Working voltage | DC24V |
3 | Size of each case | 1630× 1230×2300 mm | 16 | Motor | DC Motor, DC24V |
4 | Passage width | Less than 700mm | 17 | display mode | High light LED |
5 | Weight | 200 - 350Kg. | 18 | Traffic mode when power failure | A: No Entry. B: Free traffic (customized). |
6 | Length of swing arm | 600 mm | 19 | Anti locked rotor function | support |
7 | Material of case | Stainless Steel 304# ,1.5mm thickness | 20 | Anti-strike function | Support |
8 | Material of arm | Stainless Steel 304#, diameter 38mm | 21 | Ambient temperature | -20℃ - 70℃ |
9 | The rotation angle | 90º ,120º, 180º | 22 | Max. relative humidity | ≤95% |
10 | Fire alarm signal | Support | 23 | Mechanical noise | lower |
11 | The anti tail function | Support | 24 | Protection level | Better than IP54 |
12 | Normally open/close function | Support | 25 | Driving method | DC12V pulsing signal,signal time more than 100MS, MODBUS communication signal . |
13 | Traffic mode | two way traffic / one way traffic | 26 | Trouble free time | More than 5,000,000 times . |
General Discription
1. Appearance and design . Specially designed according to operational environment and tailored to the building style .
2. Material . Stainless steel ,Glass , Acrylic ,Wood ,Stone ,Titanium alloy .
3.Assage width . 400mm ~ 3000mm .
4.Dimension . Designed according to specific project dimensions .
5. Surface finish . Hair brushed , Satin brushed , Polished , Electroplated coating , Watermarked .
6. Environment .
Suitable for environments, +80 degree~ -45 degree .
Humidity >95% .
Protection: IP11 ~ IP67 .
KBB Advantages
1. Advanced safety features . Equipped with more than 10 pairs of military specification infrared sensors, which accurately monitor safety and security functions, including anti- passback, tailgating, illegal access, anti squeeze and orientation identification.
2. Speed Technology. Adjustable Opening/closing time for swing gates and wing gates can be as low as 0.35s
3. Appearance. Class leading breakthrough on curved design appearance and surface treatment ahead of competitors .
4. Complete product line . Capable of manufacturing 6 lines of products, KBB is one of the top 3 manufacturers in this competitive field. Our products are fully compatible with all major worldwide projects and we offer a fast response be spoke service platform.

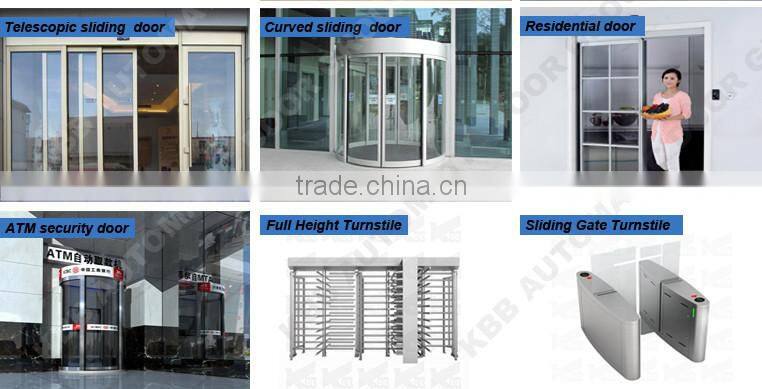

As one of the biggest automatic door suppliers in the world, we KBB specialized in automatic door field for more than 20 years ,supplied automatic revolving door, sliding door , sliding door Operator, medical hermetic door, swing door with higher quality and competitive price.

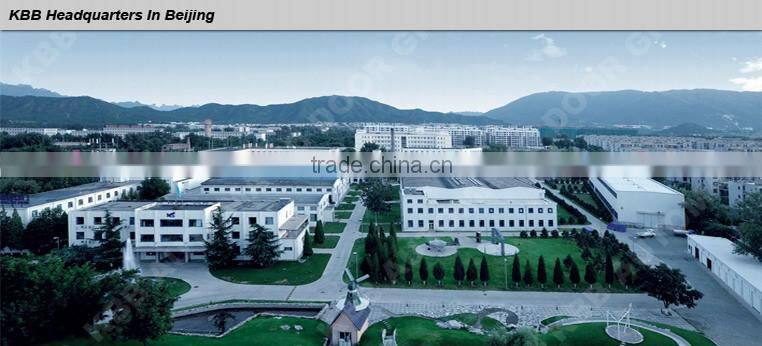

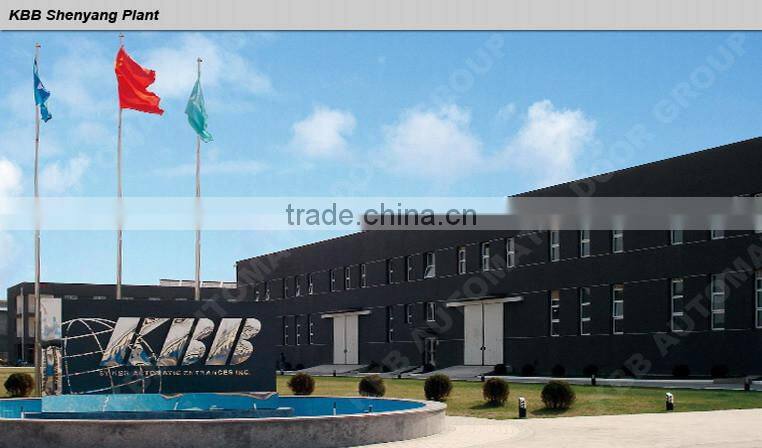

We have 3 plants in China located in Beijing, Shenyang and Ningbo , pocess the biggest prodcution capacity in automatic door field in China .
Up to now, our doors had already got many certificates such as ISO 9001, ISO14001, CE, UL, TGA, GOST, UKAS etc.

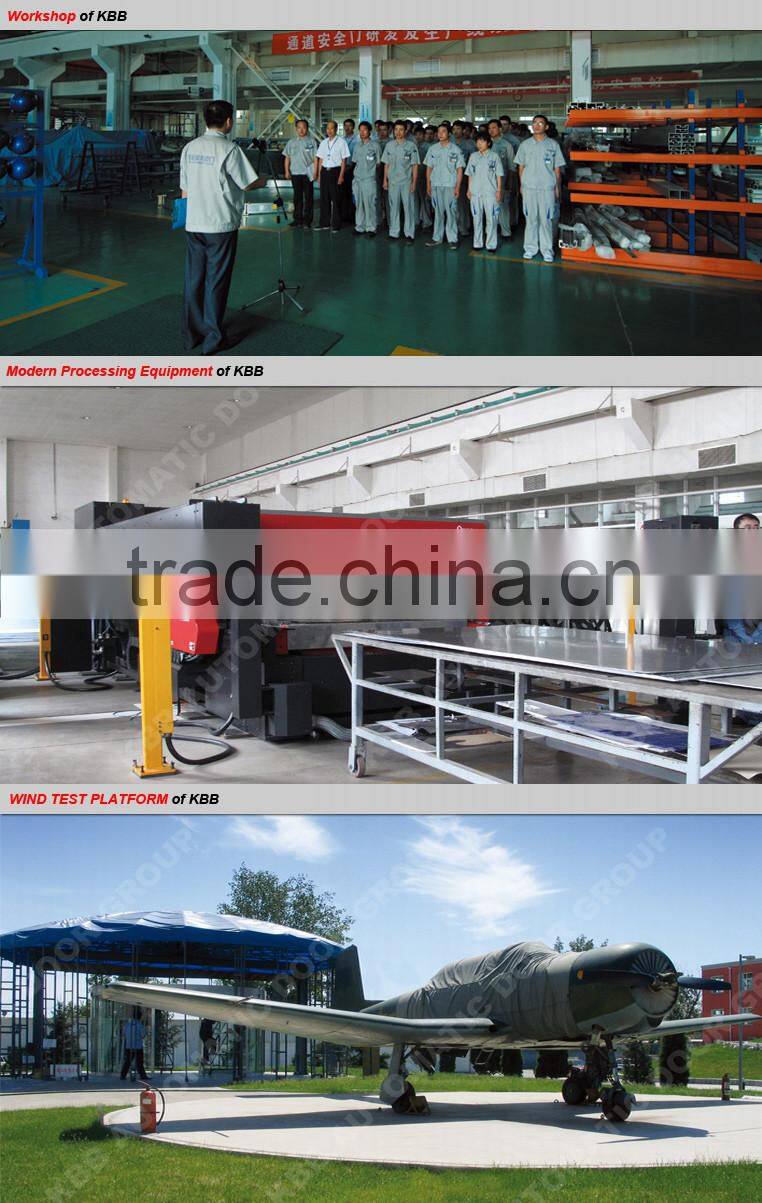

We have the most modern workshops for automatic door producing .

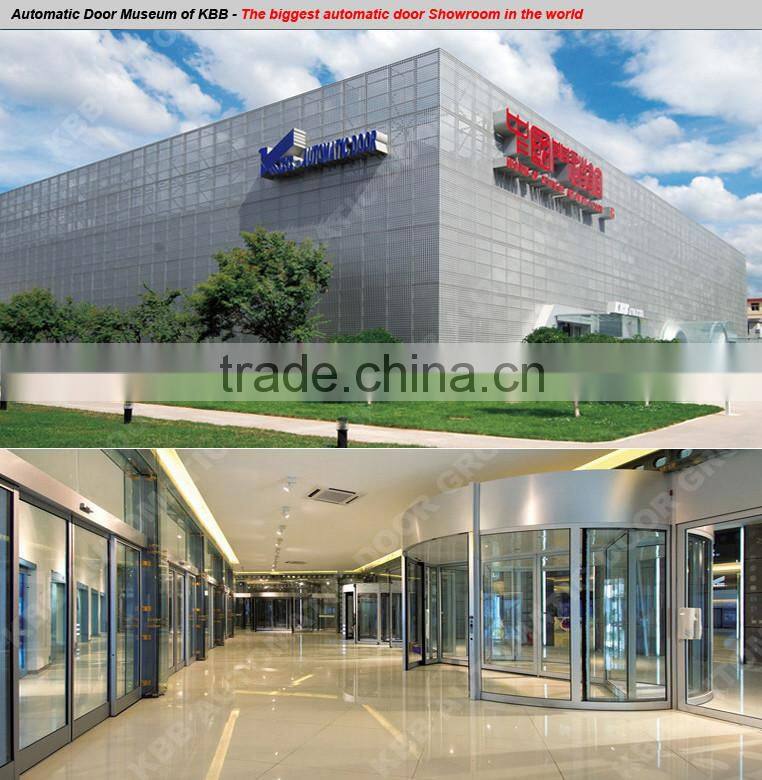

We have the biggest automatic door showroom in the world .

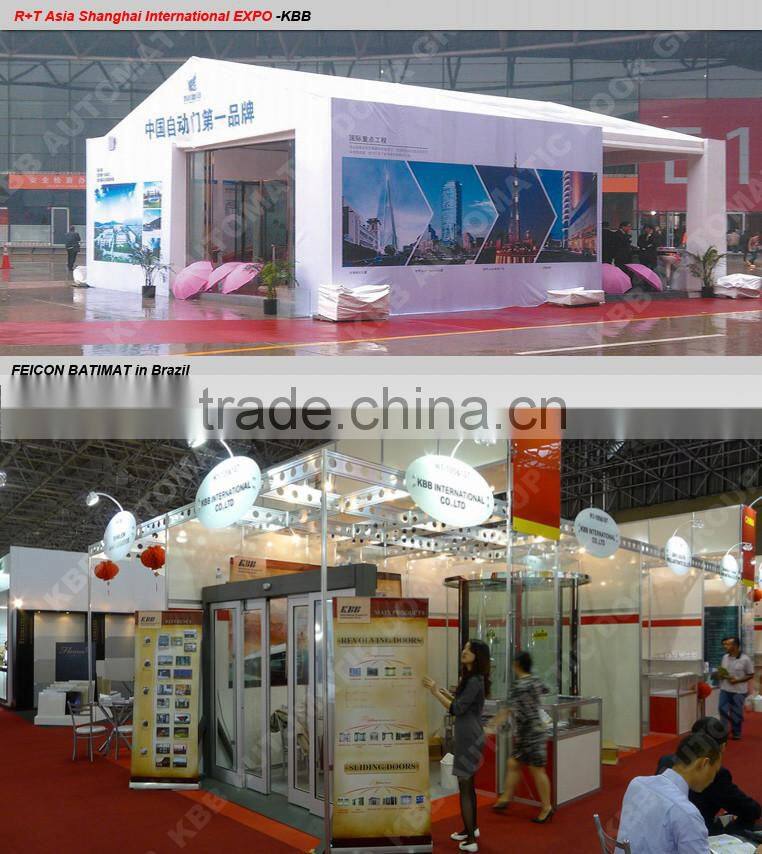

We often go to attend the most famous automatic exhibitions in the wolrd, such as FEICON BATIMAT, R+T EXHIBITION etc..
There are lots of automatic door clients from the wolrd visit KBB to communicate the cooperation every year .
20,000 units sliding doors and 2,000 units revolving doors could be provided every year for the airport, hotel, shopping mall, office building projects. The 4 tallest towers in the world including the Khalifa tower in Dubai, The Titanium in Santiago, The global Financial Center tower in Shanghai and The Shard in London installed our doors.
