Swing Gate Turnstile With CE Certificate

KBB Swing gate turnstile with CE certificate

* KBB Automatic Door Group is the largest automatic door manufacturer in China, even in Asia, also famous in the world .

* Our Doors had already sold to more than 70 countries in the world, the tallest building in South America called Titanium installed 4 units of our revovling door, others such as Hilton, Marriott, IKEA, the Shard are also our clients.

* Our after sale service team extend all over the world, the supports such as installation, maintenance, malfunction treating could be provided timely and perfectly .

KBB high efficiency security turnstiles is one of the best entrance control in the world, which could be equipped with almost any system of different buildings, such as access control, time and attendance, visitors, card transceivers, tickets and biometrics, as well as being able to handle CCTV and other additions.

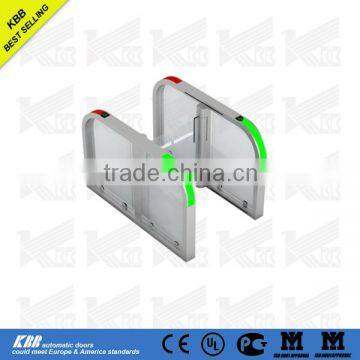

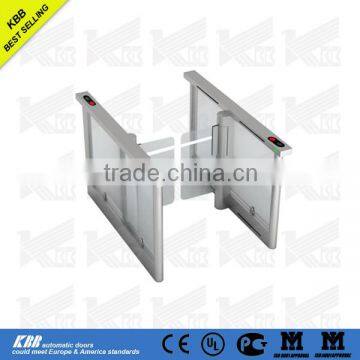

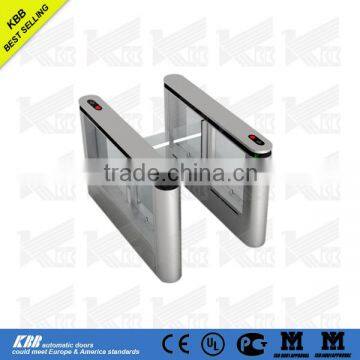

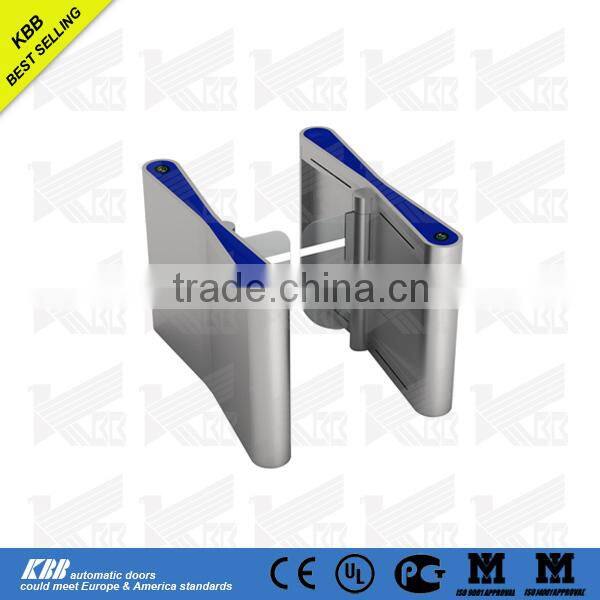

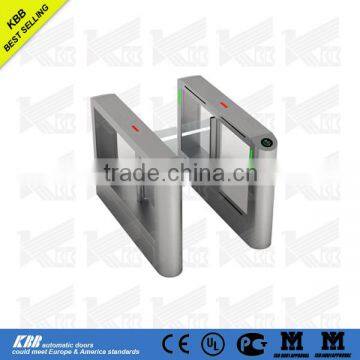

KBB Swing Gate Turnstile

The high strength paddle gate rotates on a fixed axis to allow controlled entry and egress.

This option allows the widest controlled turnstile walkway, with a passage width between 550mm-1000mm .

By shape, swing gate turnstiles can be divided into bridge type, vertical type and cylinder type.

Vertical and cylinder types required reduced space, are easy to install, but have a short passage length offering limited pedestrian detecting features.

Bridge type swing gate turnstiles offer extended passage length, with stronger pedestrian detecting features and higher safety levels.

Compared to tripod turnstiles, bridge types include pedestrian detecting features monitoring pedestrians more effectively and with improved anti tailgating features.

They are also suitable when wide passage widths are required such as wheelchair access or pedestrians with large luggage or bicycles.

Technical Data

Power voltage : AC220V /AC85 ~ 230V

Working voltage : DC24V

Start power requirement : 210W

Working power requirement : 36W

Standby power requirement : 17W

Mechanical module :[Based on German technology] long lasting module

Drive motor : DC brushless motor

Communication interface : 1 route RS485 / 3 route RS232 / LAN network and Ethernet(optional)

General Discription

1. Appearance and design . Specially designed according to operational environment and tailored to the building style .

2. Material . Stainless steel ,Glass , Acrylic ,Wood ,Stone ,Titanium alloy .

3.Assage width . 400mm ~ 3000mm .

4.Dimension . Designed according to specific project dimensions .

5. Surface finish . Hair brushed , Satin brushed , Polished , Electroplated coating , Watermarked .

6. Environment .

Suitable for environments, +80 degree~ -45 degree .

Humidity >95% .

Protection: IP11 ~ IP67 .

KBB Advantages

1. Advanced safety features . Equipped with more than 10 pairs of military specification infrared sensors, which accurately monitor safety and security functions, including anti- passback, tailgating, illegal access, anti squeeze and orientation identification.

2. Speed Technology. Adjustable Opening/closing time for swing gates and wing gates can be as low as 0.35s

3. Appearance. Class leading breakthrough on curved design appearance and surface treatment ahead of competitors .

4. Complete product line . Capable of manufacturing 6 lines of products, KBB is one of the top 3 manufacturers in this competitive field. Our products are fully compatible with all major worldwide projects and we offer a fast response be spoke service platform.
