Full Height Turnstile, Access Control, Stainless Steel Structure, ISO9001 CE UL Certificate

KBB full height turnstile and access gate with stainless steel structure

* KBB Automatic Door Group is the largest automatic door manufacturer in China, even in Asia, also famous in the world .

* Our Doors had already sold to more than 70 countries in the world, the tallest building in South America called Titanium installed 4 units of our revovling door, others such as Hilton, Marriott, IKEA, the Shard are also our clients.

* Our after sale service team extend all over the world, the supports such as installation, maintenance, malfunction treating could be provided timely and perfectly .

KBB high efficiency security turnstiles is one of the best entrance control in the world, which could be equipped with almost any system of different buildings, such as access control, time and attendance, visitors, card transceivers, tickets and biometrics, as well as being able to handle CCTV and other additions.

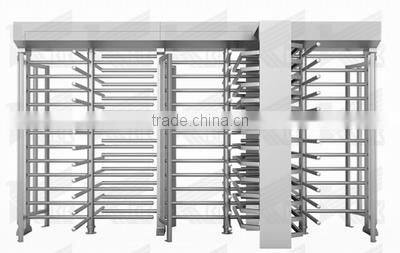

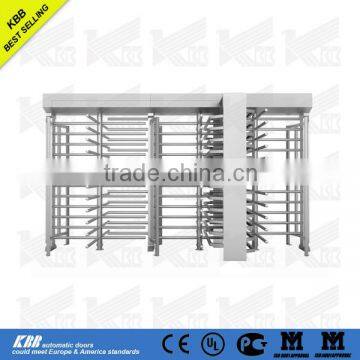

KBB Full Height Turnstile

Full height turnstiles offer the ultimate in unmanned perimeter security and are available in several versions. Hollow section and solid stainless steel bars are used for the rotor arms and are arranged in a Y shape (three bar turnstile) or cross shape (cross turnstile) that rotate on a fixed central axis.

According to the requirements on site, passages can be divided into single, double, triple and quadruple versions. All full height turnstiles can be configured for single or bi-directional traffic flow.

Full height turnstiles offer exceptional high security and are often used in unmanned locations.

Their stainless steel construction allows use in indoor and outdoor locations, and they can be combined with various control systems. An option for canopy lighting is available on request, as well as mounting panels to allow the use of access control systems and intercoms.

Technical Data

Power voltage : AC220V /AC85 ~ 230V

Working voltage : DC24V

Start power requirement : 210W

Working power requirement : 36W

Standby power requirement : 17W

Mechanical module :[Based on German technology] long lasting module

Drive motor : DC brushless motor

Communication interface : 1 route RS485 / 3 route RS232 / LAN network and Ethernet(optional)

General Discription

1. Appearance and design . Specially designed according to operational environment and tailored to the building style .

2. Material . Stainless steel ,Glass , Acrylic ,Wood ,Stone ,Titanium alloy .

3.Assage width . 400mm ~ 3000mm .

4.Dimension . Designed according to specific project dimensions .

5. Surface finish . Hair brushed , Satin brushed , Polished , Electroplated coating , Watermarked .

6. Environment .

Suitable for environments, +80 degree~ -45 degree .

Humidity >95% .

Protection: IP11 ~ IP67 .

KBB Advantages

1. Advanced safety features . Equipped with more than 10 pairs of military specification infrared sensors, which accurately monitor safety and security functions, including anti- passback, tailgating, illegal access, anti squeeze and orientation identification.

2. Speed Technology. Adjustable Opening/closing time for swing gates and wing gates can be as low as 0.35s

3. Appearance. Class leading breakthrough on curved design appearance and surface treatment ahead of competitors .

4. Complete product line . Capable of manufacturing 6 lines of products, KBB is one of the top 3 manufacturers in this competitive field. Our products are fully compatible with all major worldwide projects and we offer a fast response be spoke service platform.
