China manufacturer for automatic swing door opener, brushless motor
KBB automatic swing door operator which launched by KBB Group in 2014 is briefly in design and self-monitoring, also possesses kinds of multiple and additional functions, which could easily meet the requirements of the obstacle free passageway and fire protection design from the modern buildings, and widely used in many places such as office, meeting room, medical treatment room, workshop etc..
1. Device Description

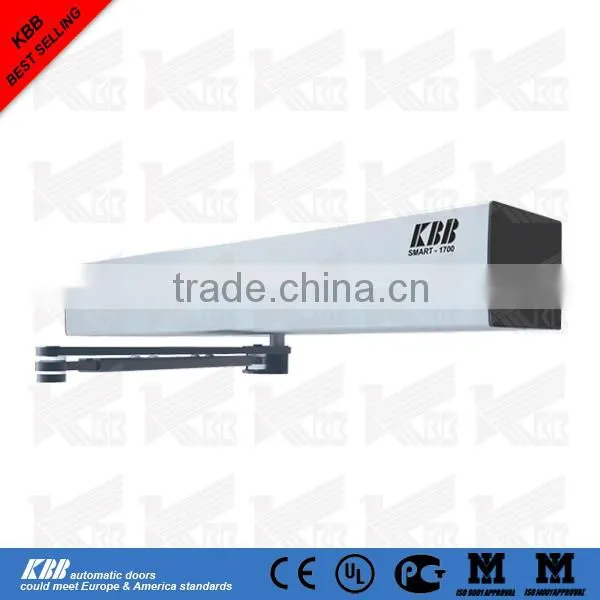

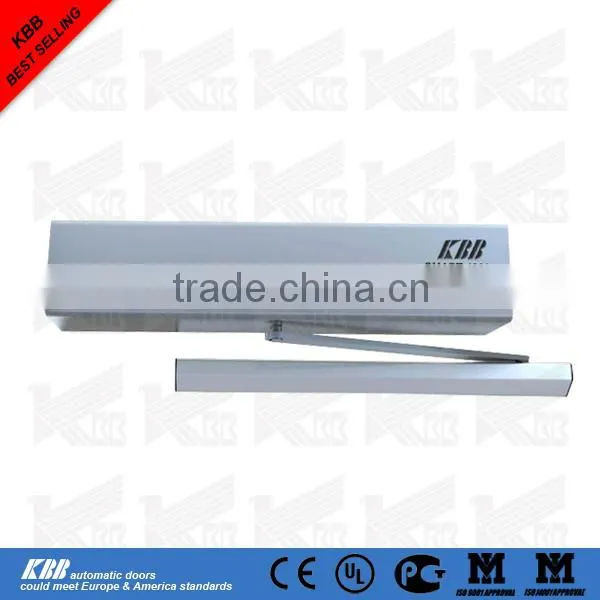

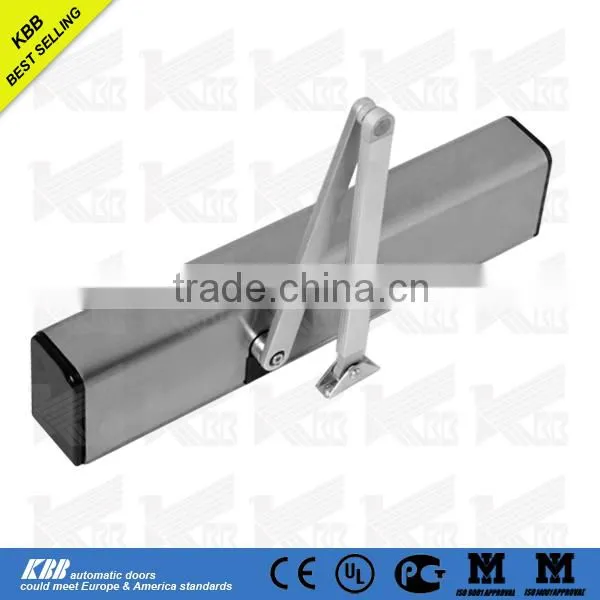

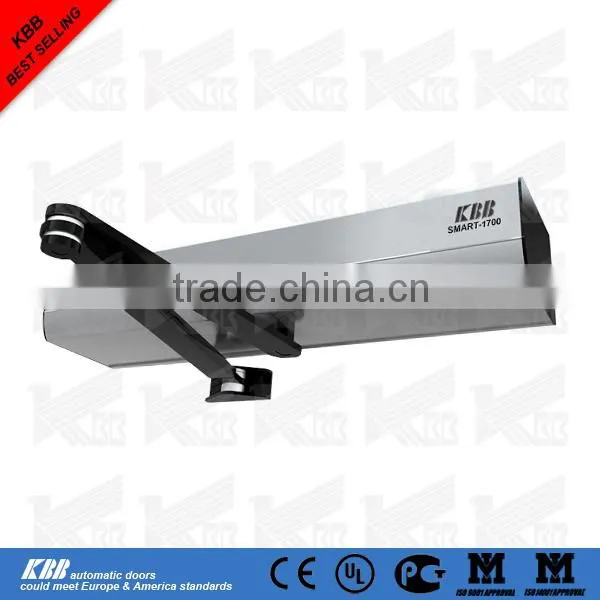

KP1000 is a kind of intelligent swing door Opener, during the running time, the microprocessor measure the door’s current position, speed and final position, after accurate calculation, then could get the most suitable movement method to control the moving path of each door. This could prevent the well-known problems of terminal point stop, emergency braking and sluggish speed etc. According to the door width, when power off, it could set spring tensile force of pulling open, and limited redundant force control could also increase safety level.
2. Security Features
A. Reverse Kinetic energy. KP1000 possesses the Reverse Kinetic energy ,the door could be open as power failure, it functions as manual swing door. Door can be closed at ease and opened with energy stored in spring, movement damper from motor works as generator.
B. Collision detection. When something blocks the door’s openning, the door stops immediately. Drive system tries to get to open position during buffering period. When buffering period finish, door closes. When door opens next time, it moves slowly until previous block position to avoid collision.
C. Reopen as block. Door reopens when it is blocked in closing process.
3. Structure
Introductions :
1.Connecting bus of terminal device
2.Fuse protector
3.Power Supply
4.Reduction drive
5.Control Unit
6.Connecting interface
7.Encoder
8.Drive Unit
9. Slide switch S1 (Rotation Direction )
10. Multi-function switch
11. Enclosing spring
12.Display panel, adjust the tension of spring
13.Adjustment screw of spring tension
14.Connector of the arm link (double-side )
15.Standard switch
16. Status signal and reset button
4. Operating
1. 3 digit mechanical BDI (control switch)
2. Reset button
3. Status signal
Four running types could be set to KP1000 .
Manual operation:
Operator shall function as a manual door closer in the direction of swing with or without electric power.
Automatic operation:
KP1000 will works automatically with the help of radar or other ACS .
Push and go :
We can push the door leaf with only little force, then the door will open automatically .
Connected with Access Control System :
Our operator could connect with many types of ACS, such as card reader system, fingerprint identification system etc.
Dimension: Controller 580* 124*84 mm ( Length*Width*Height )
Voltage: 110V
Maximum Torque:50Nm
Opening Range:70° ~ 95°
Hold Time:0~20s
Opening Speed:3~20s
Closing Speed:5~20s
Noise: < 60db
Environmental Conditions:
Temperature range: -20 to +50℃
Humidity Range:Relative Humidity <85%, no condensation
We KBB specialize in automatic door field for more than 20 years ,supplied automatic revolving door, sliding door , sliding door Operator, medical hermetic door, swing door with higher quality and competitive price.
Up to now, our doors had already got many certificates such as ISO 9001, ISO14001, CE, UL, TGA, GOST, UKAS etc.
20,000 units sliding doors and 2,000 units revolving doors could be provided every year for the airport, hotel, shopping mall, office building projects. The 4 tallest towers in the world including the Khalifa tower in Dubai, The Titanium in Santiago, The global Financial Center tower in Shanghai and The Shard in London installed our doors.
**
