8pcs/lot,Wireless dm Console,wireless DM512 Transmitter and Receiver Wireless dm

8pcs/lot,Wireless dm Console,wireless DM512 Transmitter and Receiver Wireless dm thumbnail-3

8pcs/lot,Wireless dm Console,wireless DM512 Transmitter and Receiver Wireless dm thumbnail-4

8pcs/lot,Wireless dm Console,wireless DM512 Transmitter and Receiver Wireless dm thumbnail-5

8pcs/lot,Wireless dm Console,wireless DM512 Transmitter and Receiver Wireless dm thumbnail-6

8pcs/lot,Wireless dm Console,wireless DM512 Transmitter and Receiver Wireless dm photo-1

8pcs/lot,Wireless dm Console,wireless DM512 Transmitter and Receiver Wireless dm photo-2

8pcs/lot,Wireless dm Console,wireless DM512 Transmitter and Receiver Wireless dm photo-3

8pcs/lot,Wireless dm Console,wireless DM512 Transmitter and Receiver Wireless dm photo-4

8pcs/lot,Wireless dm Console,wireless DM512 Transmitter and Receiver Wireless dm photo-5

8pcs/lot,Wireless dm Console,wireless DM512 Transmitter and Receiver Wireless dm photo-6

Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Brand Name:

Model Number:

HX-512

Contact Supplier Request Quote Chat Now

Shenzhen YXE Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Brand Name HX

Model Number HX-512

Seeking foreign partners

Long term cooperation, price concessions, please give me a message, leave your e-mail.

Website: www:

You can choose:

1pcs/Transmitter+2pcs/Receiver

1pcs/Transmitter+3pcs/Receiver

1pcs/Transmitter+4pcs/Receiver

1pcs/Transmitter+5pcs/Receiver

1pcs/Transmitter+6pcs/Receiver

1pcs/Transmitter+7pcs/Receiver

1pcs/Transmitter+8pcs/Receiver

1pcs/Transmitter+9pcs/Receiver

1pcs/Transmitter+10pcs/Receiver

1pcs/Transmitter+11pcs/Receiver

1pcs/Transmitter+12pcs/Receiver

1pcs/Transmitter+13pcs/Receiver

1pcs/Transmitter+14pcs/Receiver

2pcs/Transmitter+2pcs/Receiver

2pcs/Transmitter+4pcs/Receiver

2pcs/Transmitter+6pcs/Receiver

2pcs/Transmitter+8pcs/Receiver

2pcs/Transmitter+10pcs/Receiver

2pcs/Transmitter+12pcs/Receiver

2pcs/Transmitter+14pcs/Receiver

2pcs/Transmitter+16pcs/Receiver

You can choose any combination of transmitter and receiver.

Description

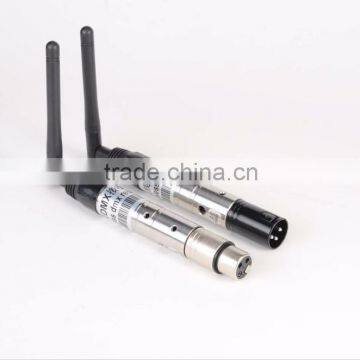

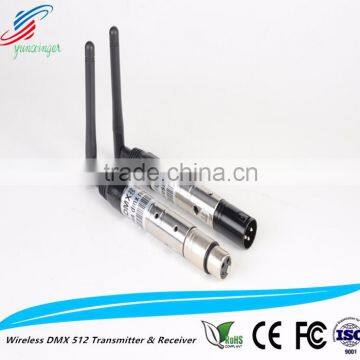

DM512 wireless receiver/transmitter transmits standard DM512 protocol data (generated by console) by wireless way.No time delay when signal data is transmitting, signal data is real time and reliably.This product adopts a 2.4G ISM frequency section.High effective GFSK modulate,communication design; 126 channels jumping frequency automatically, high anti-jamming ability. Advantages of the products

Compact in size:Dimension only: 13.5cm 2cm 2cm
It can operate either as transmitter or receiver and they are convenient in operating.
It can be mied to use with our other wireless dm products.
Using global free license 2.4GHz frequency band, from 2400MHz to 2525MHz, 126 automatically jumping frequencies to ensure smooth communications among transmitters and receivers. The standard reliable and safe communication distance between our transmitter and receiver is 700 meters.
Capable of setting up different configurations to meet different needs, like point to point, point to multiple or multiple to multiple. The listed item supports up to 7 universes of DM (5127=3584 receivers).

Application

Stage lighting, Disco hall, Large literature performance, Gymnasium lighting, Temporary stage performance, City lighting system, TV station, Conference center, Professional showplace, Theme parks, Bar lighting and so on.

Specifications

Frequency-Agile: 2.4Ghz Wireless DM system with 512 channels and 7 groups
Input Voltage: AC100/240V, 50/60Hz
Work Voltage: 5V/500mA
Clor LED for ease of programming
One transmitter can communicate with multiple receivers
Frequencies: 126 frequency band Selects strongest channel automatically
# of units: up to 7 units can be set on an ID address
Effective Range: 700 Meters
Ma. Emit Power: 20dBm
Receive Sensitivity: -94dBm
DM connector: 3pin
Size: 25 220 mm
Weight: 0.2KG

Operating manual
1).ID code and LED color corresponding relationship:
1:RED
2:GREEN
3:RED+GREEN
4:BLUE
5:RED+BLUE
6:GREEN+BLUE
7:RED+GREEN+BLUE
2). Press key 1 time to indicate ID setting,,Press again to set IC,then ID value adding 1 each time you

press the switch.
3). Working condition:
LED constant lit up:No DM or wireless signal.
Red LED flash:Transmitting.
Green LED flash:receiving
4) RF frequency 2.400 - 2.525G,total 126 channels,its searching automatically,
5). ID Code 1-7 groups ID code,press KEY for setting,it only can work under same ID code of transmitter

and receiver. (Same LED Color)

Establishing Communication

Power on DM512 wireless received board and transmitted board.
Press Key button to set same ID value of transmitted board and received board. Please use different ID value if you need use more than 1 group wireless universals at same time in same place.
The red LED flashes when transmitter transmits DM data by no interfered frequency section, then receiver changescommunicated frequency section. Green LED flash till received corrected same ID value, LED flash more fast once DM data more fast.
Communication was established correctly.

Caution:

Indoor use only.
1 year warranty, repair, free replacement ecept damaged artificially.
The manufacturer will not offer free service in warranty period if any repaired or uncapped had happened
It is better to return to manufacturer if repair is a must, do not do any repairing job unless qualified electrician.
The working condition should be under temperature -20~+45 degree, 10%~90%RH, no congelation, so as to ensure its lifetime.
It can not be covered by any superstratum, it should be swept periodical to prevent dust.
