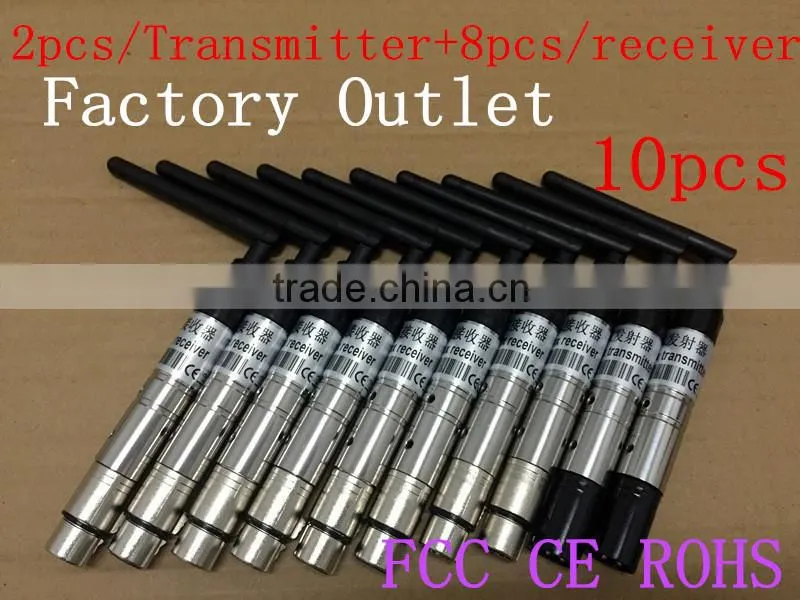

dmx transmitter stick dm receivers wireless transmitter 2.4G wireless transceiver radio console dmx dmx controller new

DM Signal Interface: 3-pin
Power Input: 5 VDC, 5%

Seeking foreign partners

You can choose:

1pcs/Transmitter+2pcs/Receiver

1pcs/Transmitter+3pcs/Receiver

1pcs/Transmitter+4pcs/Receiver

1pcs/Transmitter+5pcs/Receiver

1pcs/Transmitter+6pcs/Receiver

1pcs/Transmitter+7pcs/Receiver

1pcs/Transmitter+8pcs/Receiver

1pcs/Transmitter+9pcs/Receiver

1pcs/Transmitter+10pcs/Receiver

1pcs/Transmitter+11pcs/Receiver

1pcs/Transmitter+12pcs/Receiver

1pcs/Transmitter+13pcs/Receiver

1pcs/Transmitter+14pcs/Receiver



2pcs/Transmitter+2pcs/Receiver

2pcs/Transmitter+4pcs/Receiver

2pcs/Transmitter+6pcs/Receiver

2pcs/Transmitter+8pcs/Receiver

2pcs/Transmitter+10pcs/Receiver

2pcs/Transmitter+12pcs/Receiver

2pcs/Transmitter+14pcs/Receiver

2pcs/Transmitter+16pcs/Receiver



You can choose any combination of transmitter and receiver.

Advantages

• No time delay during data transmission
• 7 groups ID code settable
• Portable and easy to handle
• Economical
• small size: 13.5cm 2cm 2cm only
• one transmitter can control many receivers

Technical Parameters:

1. Tricolor LED displaying
2. 126 channels automatically jumping frequency, high anti-jamming ability to ensure working reliability.
3. 7 groups ID code settable, user can use 7 groups individual wireless system without any interference with each other in the same place.
4. Input voltage: 5VDC 500mA MIN
5. Communication distance: 700M
6. Work frequency section: 2.4GHz ISM band, 126 channels frequency section.
7. Ma transmitting power rate: 20dBm
8. Receiver sensitive: -94dBm
9. Signal port: 3 pin male plug (for transmitter) & female plug (for receiver

Product Outline:

Operating manual:

ID code and LED color corresponding correlation:

1: RED

2: GREEN

3: RED+GREED = YELLOW

4: BLUE

5: RED+BLUE = PURPLE

6: GREEN+BLUE = CYAN

7: RED+GREED+BLUE = WHITE

Press key 1 time to indicate ID setting, press again to set ID, then ID value adding 1 each time by press.

Working condition:

LED constant lit up: no DM or wireless signal

Red LED flash: transmitting

Green LED flash: Receiving

RF frequency------2. 400-2. 525G, total 126 channels, it is searching automatically.

ID Code------1-7 groups ID code, press "Key" for setting, it only can works under same ID code of transmitter and receiver.

Establishing Communication:

1. Power on DM512 wireless received board and transmitted board.

2. Press "Key" button to set same ID value of transmitted board and received board, please use different ID value if you need to use more than 1 group wireless system at the same time in the same place.

3. The red LED flashes when transmitter transmits DM data by no interfered frequency section, then receiver changes communicated frequency section. Green LED flash till received corrected same ID value, LED flash more fast once DM data more fast.
