Sliding Door Closer for Shopping Mall

KBB sliding door closer for shopping mall

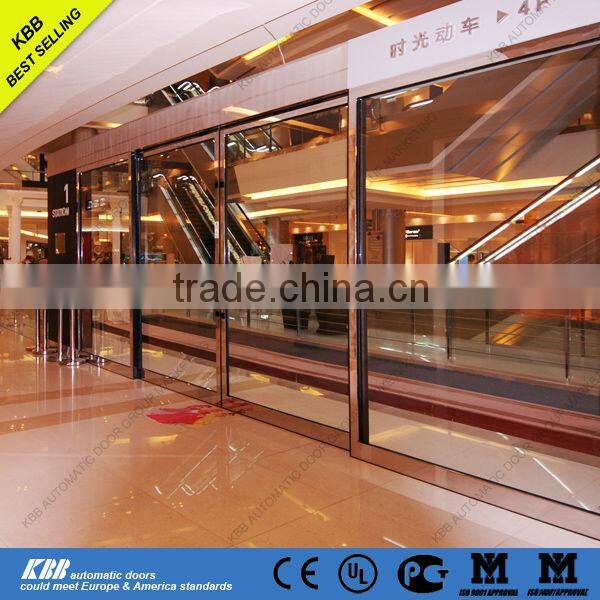

KS series sliding door system is one of KBB best selling products, at least 10,000 units could be installed in the hotels, airports, office buildings, shopping malls in the world every year, they possess leading technologies, multi- functions, dependable performance while being cost efficient.

Safety Features:

1. The Radars are all worldwide famous brands, such as BEA from Belgium, OPTEX from Japan, which are more sensitive, make people safe when they go through the door.

2. The safety beam which installed in the fix-door frame, keep people safe from squeezing.

3. UPS backup battery ensures the door operates 30 minutes normally if power fails.

4. Install an electro-mechanical lock to ensure the door be locked more safely.

5. The thickness of supporting rail was 5mm, which is much stronger than the industry average 3 to 4mm .

Technical Data:

1. Maximum Door Weight ( Single Parting ) : 1 × 150kg.

2. Maximum Door Weight ( Bi - Parting )  :  2 x 120 kg.

3. Opening Speed Range: 0.4 - 0.7m / s (adjustable).

4. Closing Speed Range: 0.3 - 0.6m / s (adjustable).

5. Keep Opening Time Adjustable Range : 5~10s (5s, Standard) .

6. Power supply: 220VAC±10%,50HZ ,10A .

7. Rated power: 100W .

8. Max. drive power (static): 150N .

9. UPS backup battery:  30min .

10. Ambient temperature: -30.C – 50.C

11. Max. relative humidity: 90% .

12. Protection level: IP23 .

Specifications:

Door width (DW)     : 2w+300mm

Opening width (W) : 800-3000mm

Opening height (H) :  ≤2600mm

Length of operator : 2500mm - 7000mm

Key Components:

1. Main control unit -Philips –Netherlands

2. Motor - Dunkermotoren – Germany

3. Radar - BEA (Belgium) /OPTEX(Japan)

4. Durable rail - Special nylon, durable, quiet and self-lubricated

5. PSA control Panel - 37 parameters could be set.

6. Supporting rails - High strength, 5mm thickness
