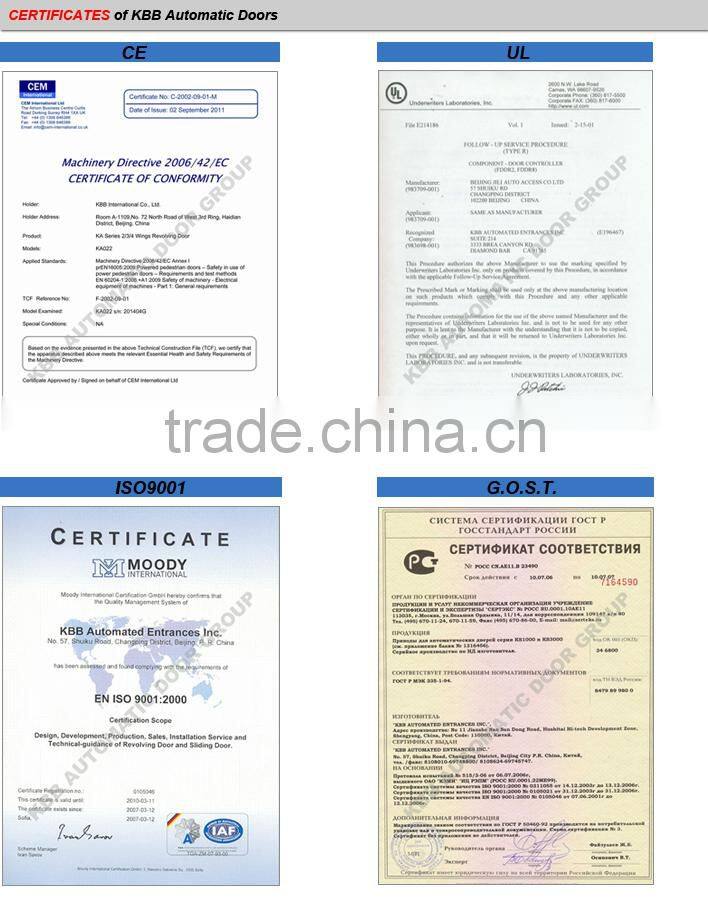

Automatic Door Opener, Europe Motor,sensor, Radar, Photocell, ISO9001, CE Certificate

KBB Automatic Door Opener, Europe motor,sensor, radar, photocell, CE certificate

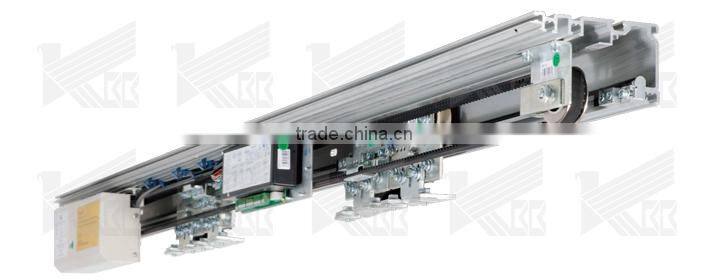

Sliding door opener also called sliding door operator, it's one of best selling products of KBB, at least 10,000 units were installed in the hotels, airports, shopping malls, office buildings in the world every year .

1. The supporting rail of KBB automatic sliding door opener is made from aluminum alloy, and the thickness of the rail is even 5mm which is much thicker than the industry average 3 to 4mm.

2. The motor of KBB automatic sliding door opener which is the heart of the drive unit is imported from Germany, work together with the supporting rail, our sliding door opener could assemble the door leaf with the weight even 150Kg.

3. Safety beam which installed on the fixed door leaf, make sliding door possess the anti-squeezefunction.

4. Backup battery ensures the automatic sliding door opener could run normally for at least 30 minutes when power fails.

5. The electro-mechanical lock could ensure the automatic sliding door opener more safely when there is no person pass.

6. Panic breakout system. All of KBB sliding doors could assemble this function, when there is something urgent happened, the moving panel even the fixed panel of the sliding door can open at 90 degrees, make the “passage way” wide enough for the people to escape.

7. All the radar and sensors of KBB automatic sliding doors are BEA from Belgium or OPTEX from Japan, more sensitive, can keep us safe from squeezing and striking

8. The main control chip of KBB automatic sliding door opener are made by Philips ,this 32-bit control chip can ensures higher processing speed.

1. Maximum Door Weight ( Single Parting ) : 1 × 150kg.

2. Maximum Door Weight ( Bi - Parting )  :  2 x 120 kg.

3. Opening Speed Range: 0.4 - 0.7m / s (adjustable).

4. Closing Speed Range: 0.3 - 0.6m / s (adjustable).

5. Keep Opening Time Adjustable Range : 5~10s (5s, Standard) .

6. Power supply: 220VAC±10%,50HZ ,10A .

7. Rated power: 100W .

8. Max. drive power (static): 150N .

9. UPS backup battery:  30min .

10. Ambient temperature: -30.C – 50.C

11. Max. relative humidity: 90% .

12. Protection level: IP23 .

Door width (DW)     : 2w+300mm

Opening width (W) : 800-3000mm

Opening height (H) :  ≤2600mm

Length of operator : 2500mm - 7000mm

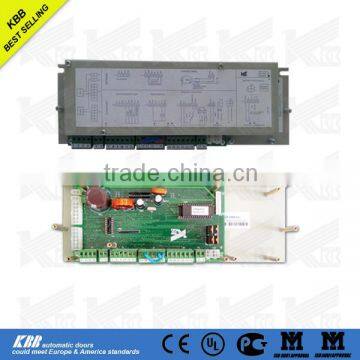

1. Main control unit -Philips –Netherlands

2. Motor - Dunkermotoren – Germany

3. Radar - BEA (Belgium)/OPTEX(Japan)

4. Durable rail - Special nylon, durable, quiet and self-lubricated

5. PSA control Panel - 37 parameters could be set.

6. Supporting rails - High strength, 5mm thickness
