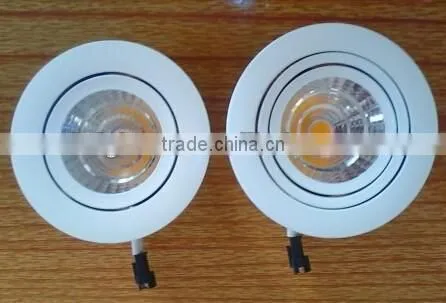

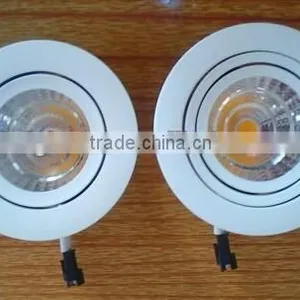

Revolve Led Downlight 10w, Rotation Led Downlight

Name: Revolve Led Downlight 10w, Rotation Led Downlight
Brand: BRIGHT-10w LED downlight
SKU: 110605995

US$ 10 - 26 MOQ: 1 Meter

Key Specifications

LED Light Source:

COB

Warranty(Years):

Input Voltage(V):

AC100-240V

Shenzhen Bright Technology Industrial Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

LED Light Source COB

Warranty(Years) 2

Input Voltage(V) AC100-240V

Lamp Power(W) 10

Lamp Luminous Flux(lm) 750-800 Lm

Lamp Luminous Efficiency(lm/w) 80

Color Temperature(CCT) Other, White

Working Temperature(℃) -20, 60

Working Lifetime(Hour) 50000

Lamp Body Material Aluminum Alloy

IP Rating Other, IP50

Certification CE

Model Number BG-643-C-10W

Place of Origin Guangdong, China

Brand Name BRIGHT-10w LED downlight

COB LED Downlight:

Model:

Item	Voltage	Power	Size(mm)	Hole size:	Luminous Lm	Color temperature	Beam angle
A:unadjustable. B: 180° adjustable. C: 360° adjustable.
BG-641-A-5W	AC100-240V	5W	Ø75*H53 mm	Ø68mm	380-410	2700-7500K	40°
BG-641-B-5W			Ø80*H53 mm	Ø70mm	380-410		40°
BG-641-C-5W			Ø85*H53 mm	Ø75mm	380-410		40°
BG-642-A-7W	AC100-240V	7W	Ø75*H63 mm	Ø68mm	520-560	2700-7500K	40°
BG-642-B-7W			Ø80*H63 mm	Ø70mm	520-560	2700-7500K	40°
BG-642-C-7W			Ø85*H63 mm	Ø75mm	520-560	2700-7500K	40°
BG-643-A-10W	AC100-240V	10W	Ø75*H73 mm	Ø68mm	750-800	2700-7500K	20°40°60°
BG-643-B-10W			Ø80*H73 mm	Ø70mm	750-800	2700-7500K	20°40°60°
BG-643-C-10W			Ø85*H73 mm	Ø75mm	750-800	2700-7500K	20°40°60°
BG-641-12W	AC100-240V	12W	Ø160*H82 mm	Ø145mm	900-970	2700-7500K	15° 24° 60°
BG-642-15W	AC100-240V	15W	Ø160*H98 mm	Ø145mm	1100-1200	2700-7500K	15° 24° 60°
BG-643-20W	AC100-240V	20W	Ø160*H110 mm	Ø145mm	1500-1700	2700-7500K	15° 24° 60°
BG-644-30W	AC100-240V	30W	Ø190*H115 mm	Ø170mm	1650-1850	2700-7500K	15° 24° 60°
BG-645-40W	AC100-240V	40W	Ø190*H123 mm	Ø170mm	2900-3100	2700-7500K	15° 24° 60°
