Specifications
all glass revolving doorpanic breakout system
security glass
stainless steel surface
ISO9001 CE UL GOST certificate
KBB all glass revolving door

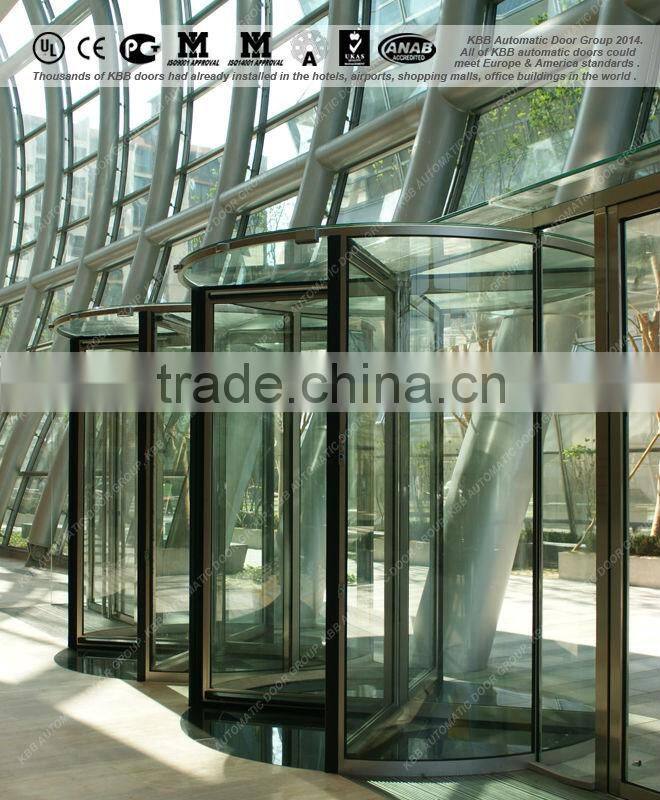

Project name : FKI office building .
Location : South Korea .

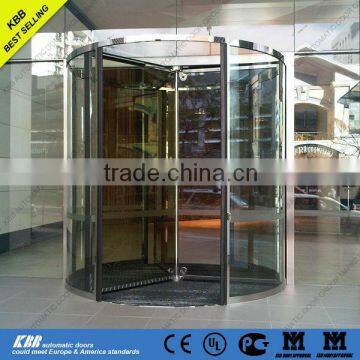

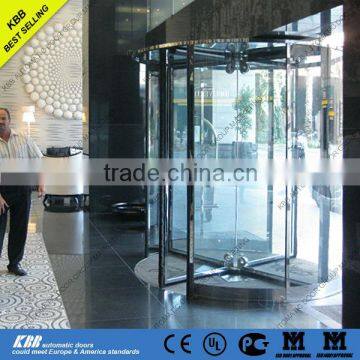

All glass revolver is one of KBB best selling doors, they are made of special safety glass, without a central column, and used underground drive structure, which make the whole door look totally transparent. With KBB’s unique music note style clamp, the revolver incorporates exceptional mechanics with aesthetics, increasing both safety and beauty.
Safety functions:
1, Vertical safety switch.
2, Horizontal safety light barriers .
3, Emergency stop button.
4, Force-sensitive Control.
5, Torque Control Function.
6, Panic breakout.
7, Night Security Door.
8, Disabled push button.
9,Glass Protective Door Clamp.
Types Of Installation:
The Installation including the “ Underground ” and “ Cross Slab ” types.
Drive and Control System:
We used the 1st class system in the world, SIEMENS main control unit, transducer, drive unit to ensure the stable door working.
Glass with Higher Quality:
All glass meets the requirements of the international standards.
1. Curved glass was 16mm(8+8) thick clear laminated glass.
2. Flat glass was 12mm thick toughened glass.
3. Ceiling was constructed of 16mm(8+8) semi-laminated and semi-toughened safety glass.

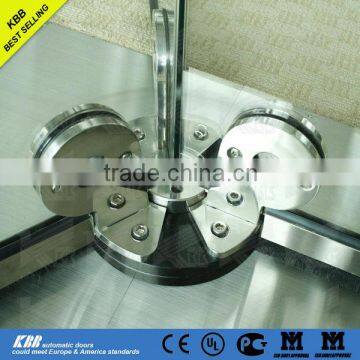

Music note style clamp:
The music note style clamp is one of KBB’s most distinguished patents. It’s similar to one of the musical notes. The clamp’s round shape makes the bearing points of the edge distribute pressure equally, keeping the door body steady and firm. This system has proven an impeccable safety record for KBB’s crystal doors.
Adjust Tool:
We use SIEMENS BOP and TD400 to ensure completely and exactly suit for our revolving doors.
Working Modes:
Continuous working mode.
Start/Stop working mode .
Technical Data:
Power supply: 220VAC±10%,50HZ
Power Consumption: 360W/AC
Main Fuse: 5A
Range of high speed adjust:1-4r.p.m.
Range of low speed adjust :0.5-2.5 r.p.m
Ambient temperature: -25°C~50°C
Ambient Humidity: <90%
Key Components:
1, Main control unit - SIEMENS
2, Operating programed software -KBB
3, Transducer - SIEMENS
4, Revolving door motor - SIEMENS
5, Revolving door gear box - Sewdrive
6, Mechanical lock - KBB
7, Reset button - KBB
8, Detection radar of revolving door -BEA
9, High precision speed/position radar - HENGSTLER
10, Safety anti-striking device -PEPPERL
11, Emergency stop button - KBB
12, Handicap button - KBB
13, Outer wall glass - YAOPI 8+8mm laminated glass
14, Door wing glass - YAOPI 12mm toughened glass
15, Top cap glass – YAOPI Safety glass toughened treatment
16, Aluminum frame profile -JIHUA
