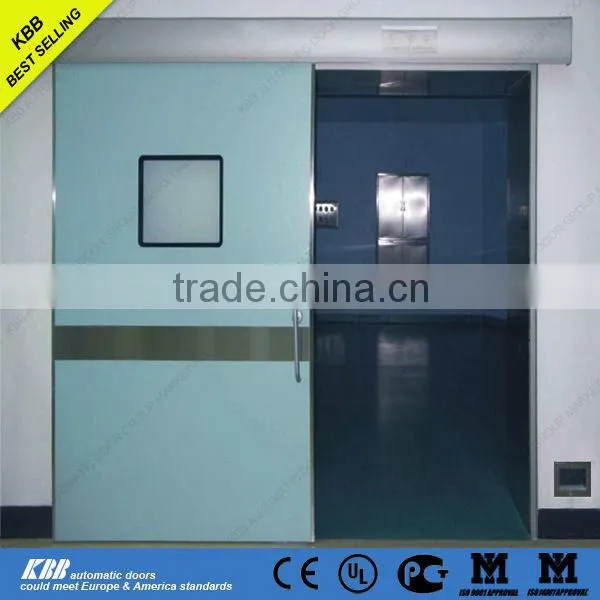

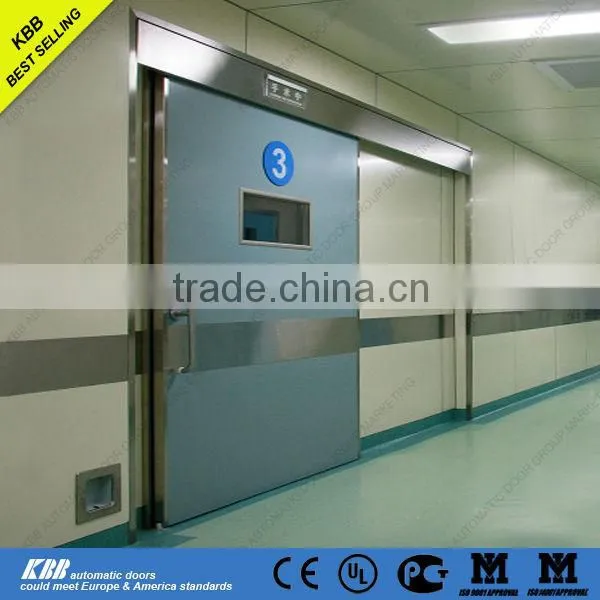

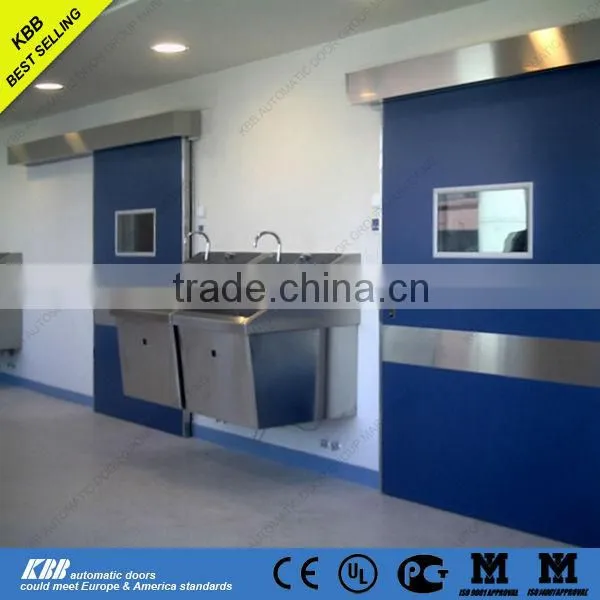

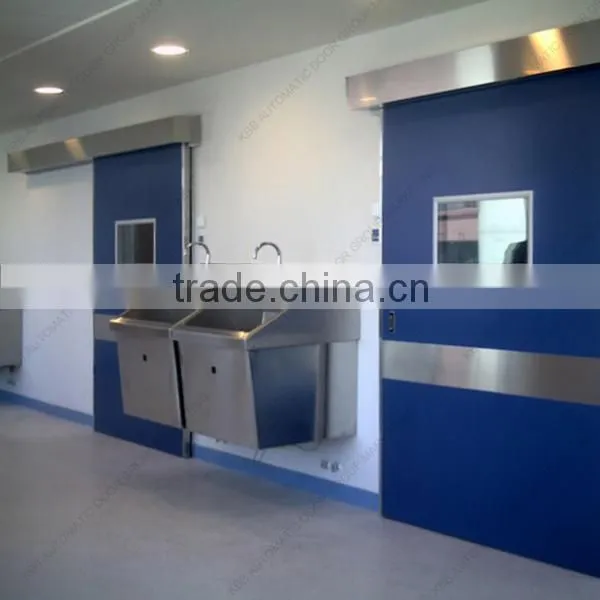

KBB hospital hermetic door for operation room, with CE certificate
The model KH1000 is a professional operating room door which developed by KBB, specifically designed for the special room which needs high quality cleanness and air tightness.
The operating room door is in high pressure polyurethane foaming process, which reduces the weight of the door and improves the sound insulation, thermal insulation and heat preservation effects.
Depending on the perfect design such as dustproof, fireproof, pressure difference resistance and anti-radiation, our hospital room door attracts wide attention since its release.
1 .Self-Test
When the operating room door is started, it establishes the self learning process and calculates the optimum open /close speed, acceleration/deceleration time etc.,ensuring the operation always in the optimized state.
In the running process, the leaf reverse immediately when it encounters barrier and then the system has a low operation with speed self test process, if there is no barrier, it runs normally, ensure the safety of pedestrians.
2 . Simple, Powerful Operation&Troubleshoot System
Through PSA, available operating states are Half open, Lock, Manual, One way and Automatic. Up to 37 parameters allow you to set the open/close speed, half open width, open time and close time, providing practical functions and simple operations.
KBB operating room door has a automatic troubleshoot system, monitoring the running state of the automatic door. If any part (mainly electric appliance parts) does not work, it will exam automatically: stops operating alarms, and displays the trouble information through PSA panel .
3 . Special Structure of Door Leaf
The body of KBB operating room door is made of aluminum alloy frame and painting panel. The observing window in the door uses double-layer glass to satisfy the requirement of special application.
The Intermediate plate is in high pressure polyurethane foaming process, which made the weight of the door much smaller, and improves the sound insulation, thermal insulation , dustproof, fireproof etc.

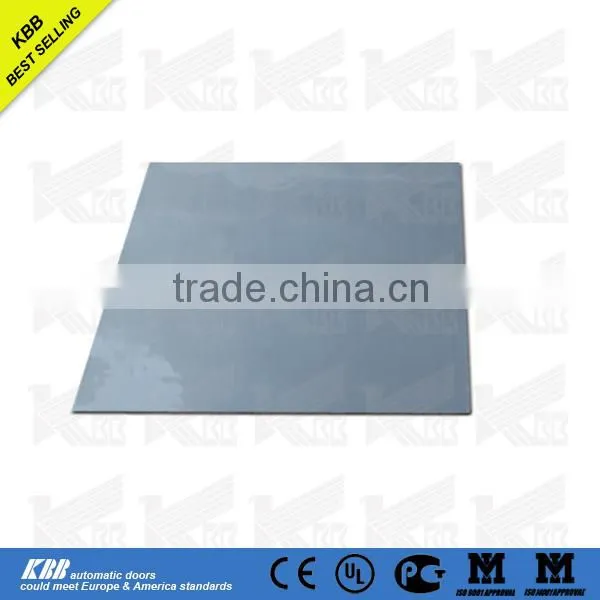

KBB operating room door also possess the anti-radiation function with the help of lead board.
4 . Perfect Air Tightness
The special V-shape concave arc rail and bearing roller design make the door leaf move along both inside and downward for 10mm separately, which ensure the whole hospital hermetic door possess the perfect air tightness .
5 . EMG solution
When power supply fail, the large capacity UPS can ensure at least 30 minutes normal operation of KBB operating room door, make people safe all the time .
6 . Advanced operating software
The operating software which was installed in KBB operating room door was the most advanced one in the hermetic door field .
We had our own software company who research and develop the software for automatic doors including Hermetic door, we can also provide the software according to our clients’ demand.
Operator Size :190(W)X200(H)mm
Clear Passage Width : 600 ~ 1500mm
Clear Passage Width : 2100 ~ 2600mm
Maximum Opening Force : 120Kg
Power Supply : 220V±10%
Rated Power : 100W (Single Drive)
Ambient Temperature : -15~55°C
Relative Humidity : <=85%
Operating Noise :<=50db
1, Drive unit- Dunkermotoren
2, Motor decelerator - Dunkermotoren
3, Control unit - PHILIPS chip, Module design
4, Foot induction switch - BEA
5, PSA control panel - KBB
6, Viewing window - KBB

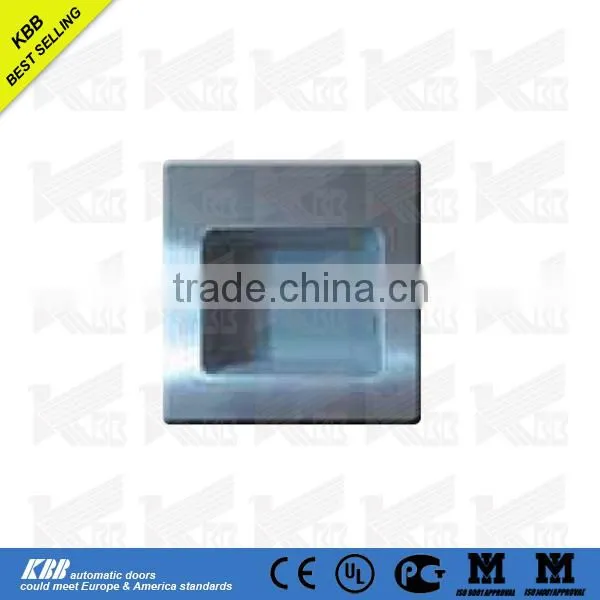

7, Invisible handle - KBB
8, Aluminum frame profile - JIHUA
9, Anty-squeeze safety beam - BEA - Optional
10, Backup battery- KBB - Optional
11, Hand induction switch-BEA - Optional
12, Lead protecting - Optional
13, Key switch - KBB - Optional
After Sales Service:
Customers always come first!
We provide 2 year warranty for all of our KBB doors.
Overseas engineer is avaliable!
If you have any requirement,just contact me without any hesitate!
Contact :Sara Tian
Mobile:0086 159 4006 3419(what’s app)
Skype:tian.sara
We KBB specialize in automatic door field for more than 20 years ,supplied automatic revolving door, sliding door , sliding door Operator, medical hermetic door, swing door with higher quality and competitive price.
Up to now, our doors had already got many certificates such as ISO 9001, ISO14001, CE, UL, TGA, GOST, UKAS etc.
20,000 units sliding doors and 2,000 units revolving doors could be provided every year for the airport, hotel, shopping mall, office building projects. The 4 tallest towers in the world including the Khalifa tower in Dubai, The Titanium in Santiago, The global Financial Center tower in Shanghai and The Shard in London installed our doors.
