Specifications

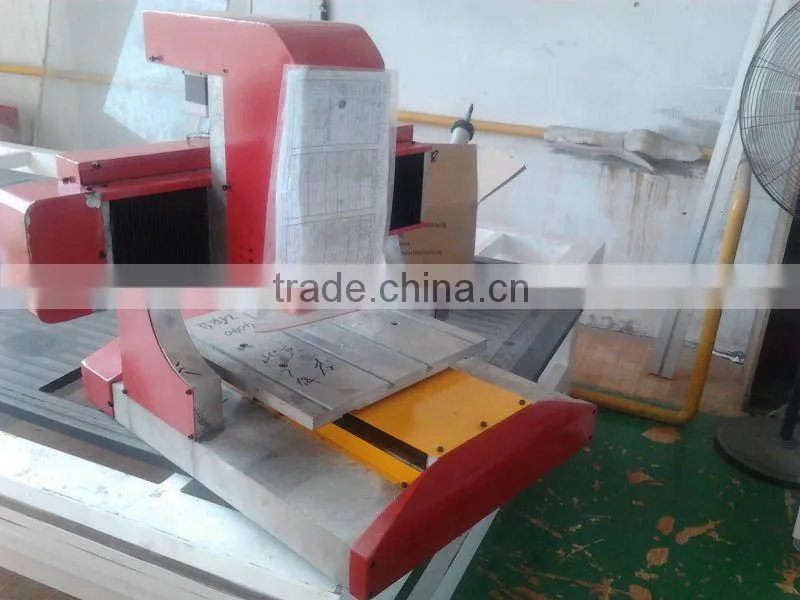

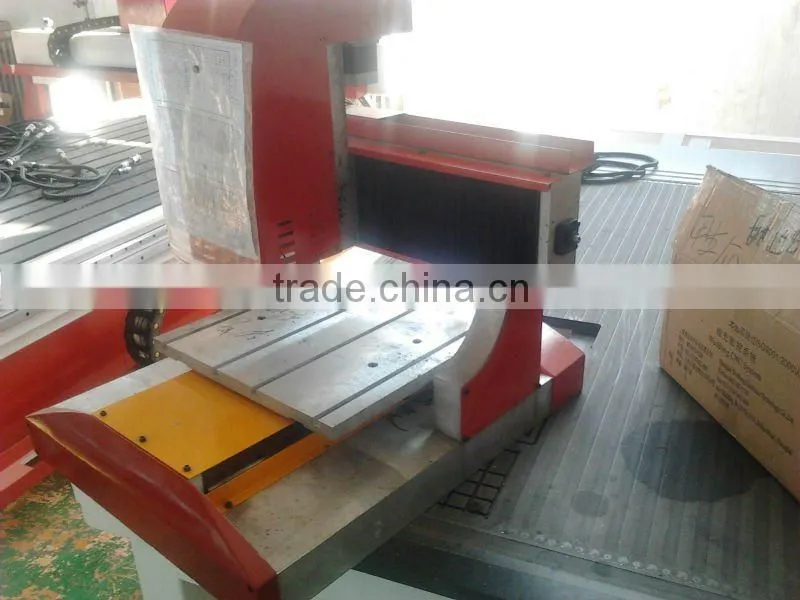

FANCH Super mini 3d CNC router for sign engraving /400*400mm working table /table moving /ball screw drive /stepper motorsFANCH Super mini 3d CNC router for sign engraving /400*400mm working table /table moving /ball screw drive /stepper motors
FC-4040S
Scope of application:
Widely used small nameplate, indicator drop , metal crafts engraving , billboard carving and small mould making line est..
Features:
1.Whole cast aluminum structure,hard,durable,non-deforming
2.There axis adopt original imported precision ball screw rod, steady operating, ensure high precision of the machine
3.The application of high performance subsection, ensure high speed and precision
4.Adopted domestic 800w water-cooling spindle, good circle, little noise, enough power
5.Humanity design ,can dismantle, transportation convenience
6.Ncstudio controll system,good compatibility, compatible type3 /artcam
/Castmate /artcut/CAD /CAM and other design software. Can control the completion of multi-dimensional 3Dprocessing, and can do fast, smooth, 3d processing, carving and cutting.
Performance parameter:
Outer dimension |
790*770mm |
X,Y axis travel |
400*400mm |
Z axis travel |
>80mm |
Max speed |
18m/min |
Max feed-in height |
80mm |
Command language |
G code, u00 , mmg , plt |
Software operating environment |
Windows98/2000/xp/Windows2007 |
Work voltage |
220v/50Hz |
Spindle power |
1.5kw |
Spindle rotating speed |
6000-24000rpm |
Work mode |
Stepper |
Control system |
DSP controller |
Design software |
UCANCAM V9 |
Sample :

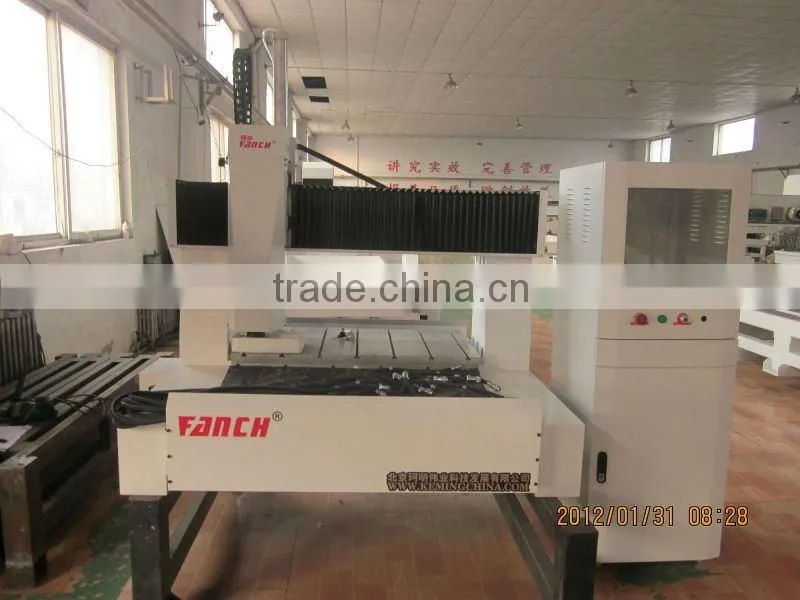

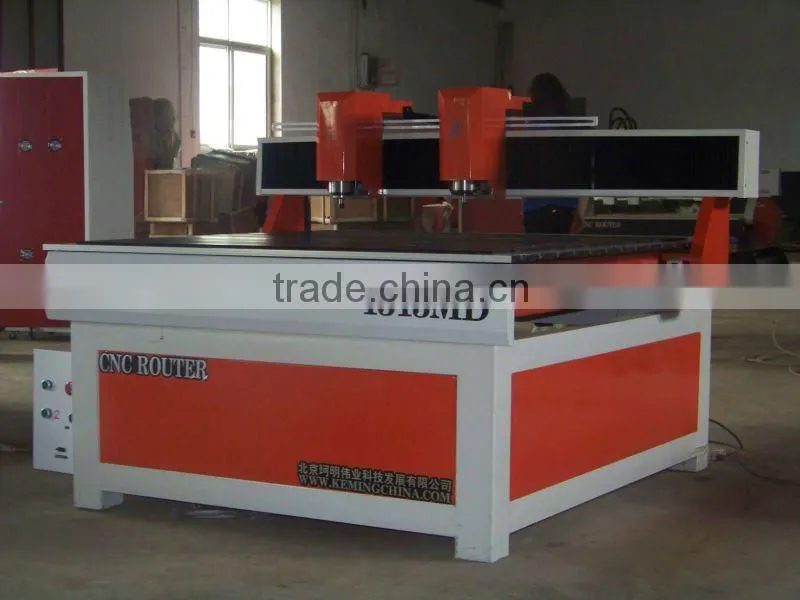

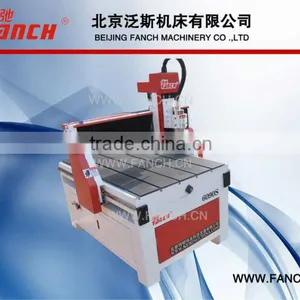

Similar model :
