Specifications

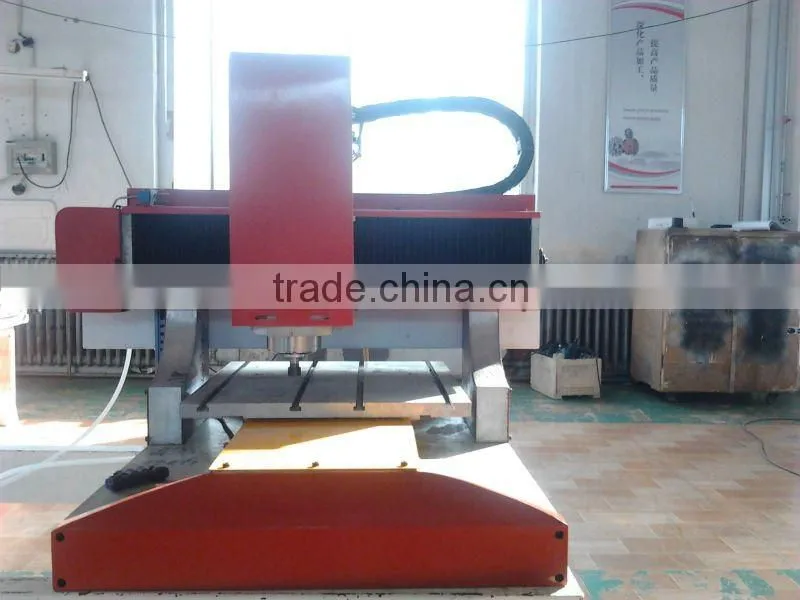

small cnc 6090 wood engraving machine /foundry table and parts /800W spindle /Stepper motorssmall cnc 6090 wood engraving machine /foundry table and parts /800W spindle /Stepper motors
Scope of application:
This machine is with multi-functions like engraving, cutting, milling, drilling, etc.Engraving and cutting, engrave on marble, granite, tombstone, jade and other stone material, also, glass, plastic, acrylic, metal and other non-metal material.
Features of the machine:
1. Adopts 1.5 kw water-cooling spindle with very good performance , fit for long time producing in the processing line and easy maintain, fit for long time producing in the processing line and easy maintain. And the sprinkler can cool down the tool and work pieces effectively.
2.The whole lathe is heavy duty structure,scientific welded,
3.The gantry structure, Y,Z axis uses Ball Screw drive systen, X, Y axis all use 20 mm Taiwan PMI dual-straight rail that make the machine driving smoothly with high-precision.
4. Adopt big torque stepper motors and Leadshine driver
5 . Use Original DSP controll system,good compatibility, compatible type3 /artcam /Castmate /artcut/CAD /CAM and other design software. Can control the completion of multi-dimensional 3Dprocessing, and can do fast, smooth, 3d processing, carving and cutting.
6.the Z,Y axis adopts Taiwan TBI original coarse pitch precise rubbing screw rod
7.Equipped with standard America industrial aviation plugs links, soft metal cable sheath .
8.The cable lines adopt imported high soft shielding machine cable reciprocating motion can reach 12 million times.
9. UCANCAM software

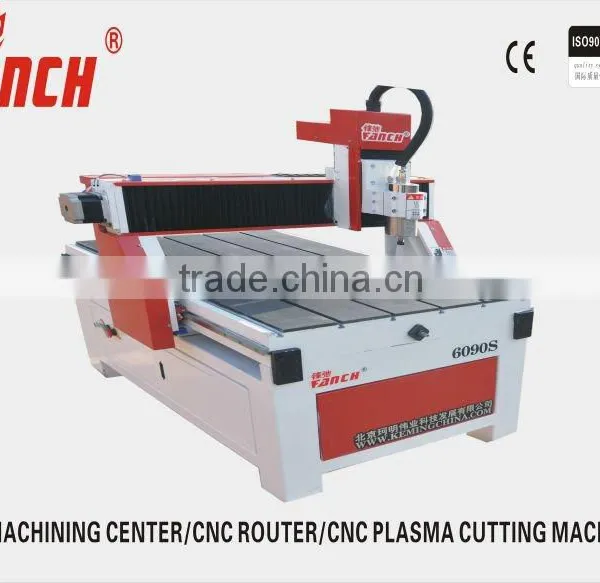

FC-6090S Performance parameter:
Outer dimension |
990*1270mm |
X,Y axis travel |
600*900mm |
Z axis travel |
>80mm |
Max speed |
18m/min |
Max feed-in height |
80mm |
Command language |
G code, u00 , mmg , plt |
Software operating environment |
Windows98/2000/xp/Windows2007 |
Work voltage |
220v/50Hz |
Spindle power |
1.5kw |
Spindle rotating speed |
6000-24000rpm |
Work mode |
Stepper |
Control system |
Ncstudio controller |
Design software |
UCANCAM V9 |

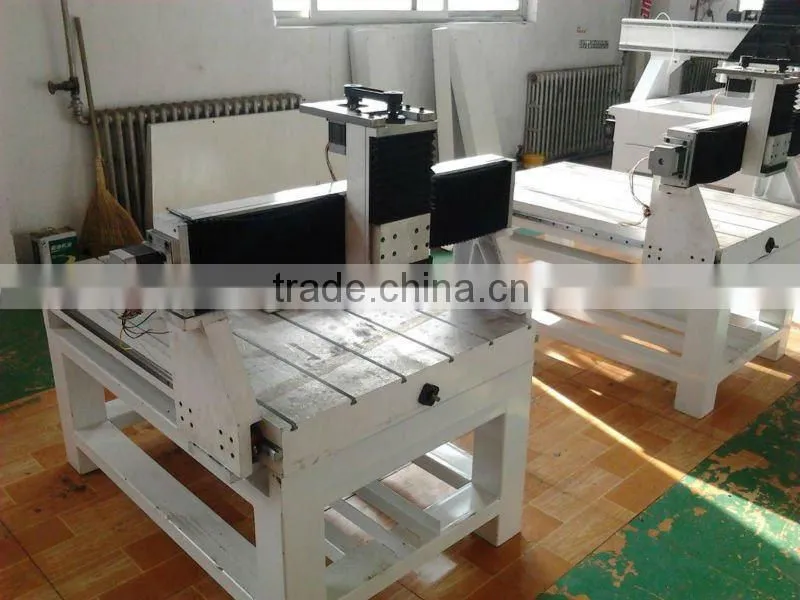

Another mini cnc machine :
