Specifications

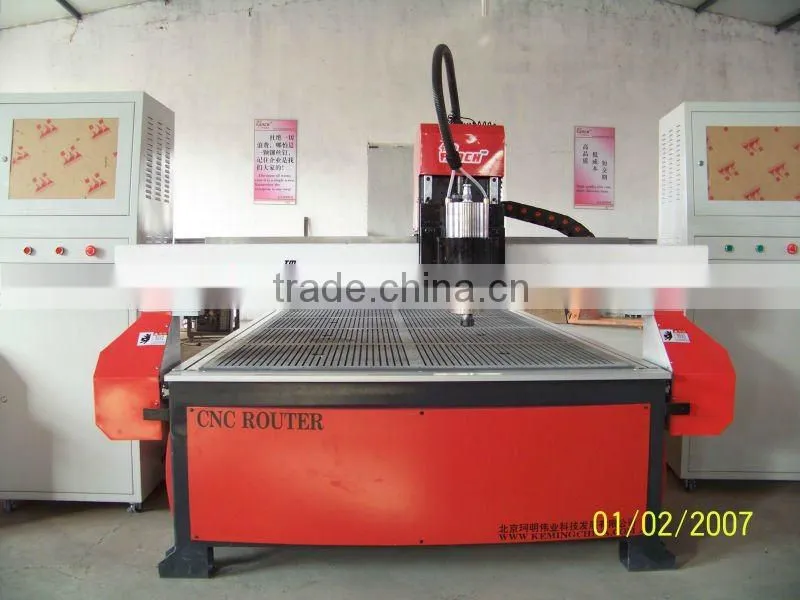

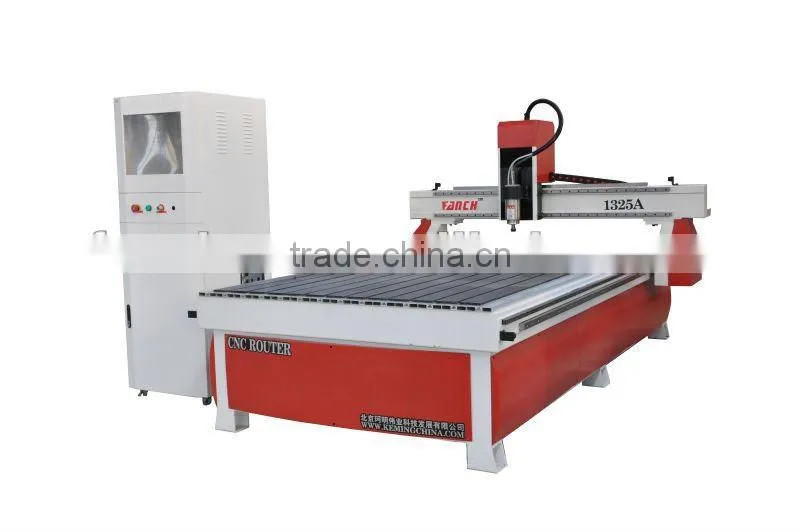

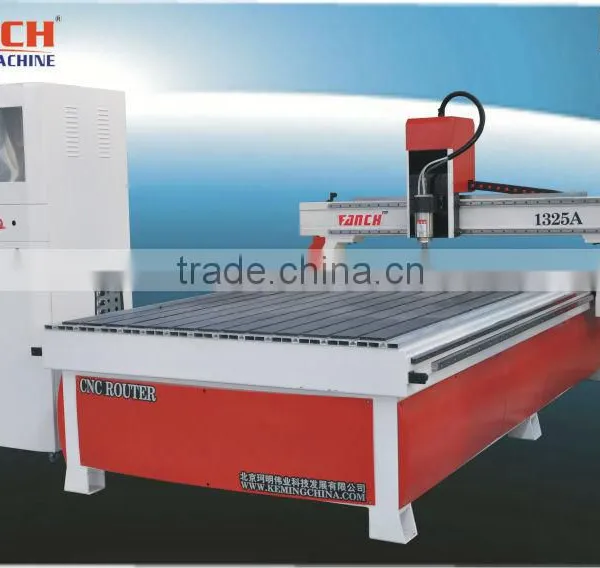

cheap cnc advertising router/2.2kw spindles/Stepper motors /Ncstudio control system/square rail /T-slot table with PVC/Cast partcheap cnc advertising router /2.2kw spindles/Stepper motors /Ncstudio control system/square rail /T-slot table with PVC/Cast part
Scope of application:
Widely used in advertising, woodwork processing line, arts and crafts line, metalwork line, can process double-colur board, PVC board, mould forming, board, copper, aluminum, fireproofing board and so on.
Features:
The lathe is founded by high-quality steel that ensures the high stability, all the three axises are using imported straight-square rail.
Y axis uses double-motor in-phase drive that ensures the machine equality and smoothly running.
Using high accurate pinion and rack transmission. The highest speed is 18m/min. It can clearly engrave the 1mm small word.
Spindle adopts domestic 3.0 KW water-cooling motor, which is very powerful and with little noise .It can work continuously without maintaining.
Intelligent protection for working table that can prevent misuse or software errors from damaging the surface. Its protection of step beyond the boundary avoids crashing while design area beyond processing area.
Advanced industrial controlling system is compatible to many dictate formats that can operate after accident or next day processing so it is very convenient.
|
Performance Parameters
| |
Name |
FC-1325A/FC-1530A
|
|
Lathe Bed
|
Seamless welding structure, Cast hanging board box and side plates
|
Z axis Feed in height |
150mm
|
|
Working area
|
1300mm x 2500mm /1500*3000mm
|
|

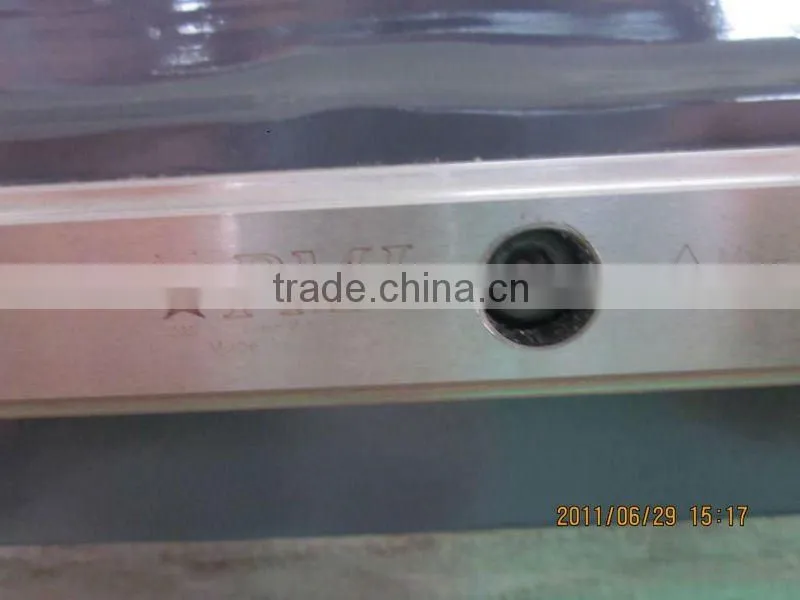

X Y Z Guide Rail
|
Taiwan PMI 20mm Square Rail
|
|
Z Transmission
|
Taiwan TBI Ball Screw
|
Spindle motor |
2.2kw water cooling (bigger power spindles optional )
|
|
Inverter
|
XINFUTAI |

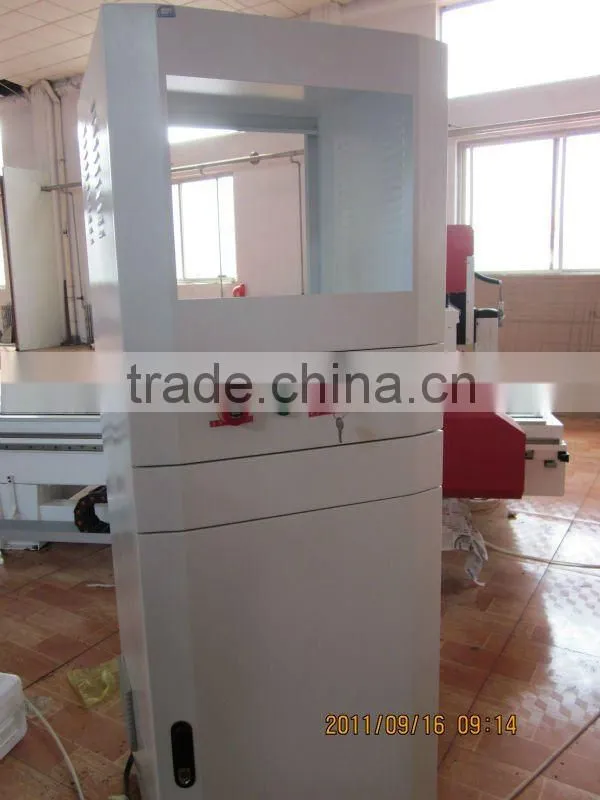

Control System |
DSP control system ( NC PCI optional )
|
|
Typeset Software
|
UCANCAM V9 |
Spindle speed |
6000-24000rpm
|
|
Reposition Accuracy
|
+_0.025
|

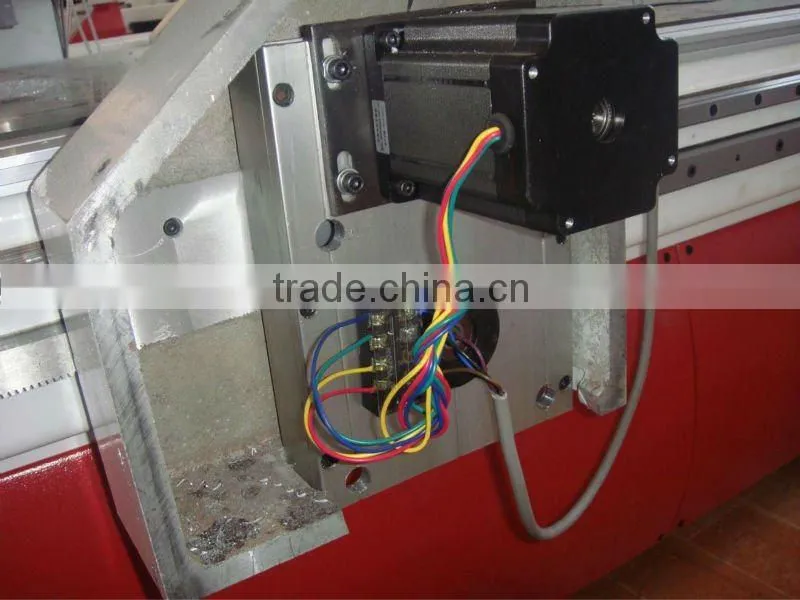

Motor |
Stepper (Japan servo optional)
|
|
Driver
|
Leadshine |
|
Work-holding
|
Aluminium with T solt (Vacuum table optional) |
Working voltage |
AC220v/50HZ (Vacuum table with AC 380V/50HZ ) |
|
Tool Diameter
|
3.175,6,12.7
|
Vacuum cleaner |
3.0kw
|

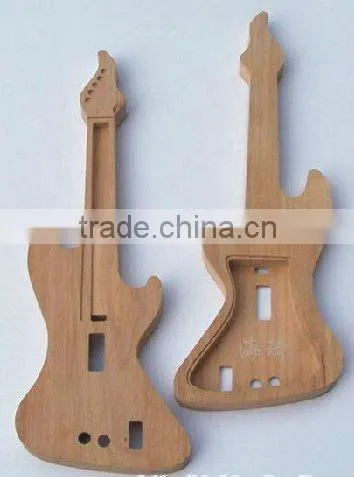

Sample :

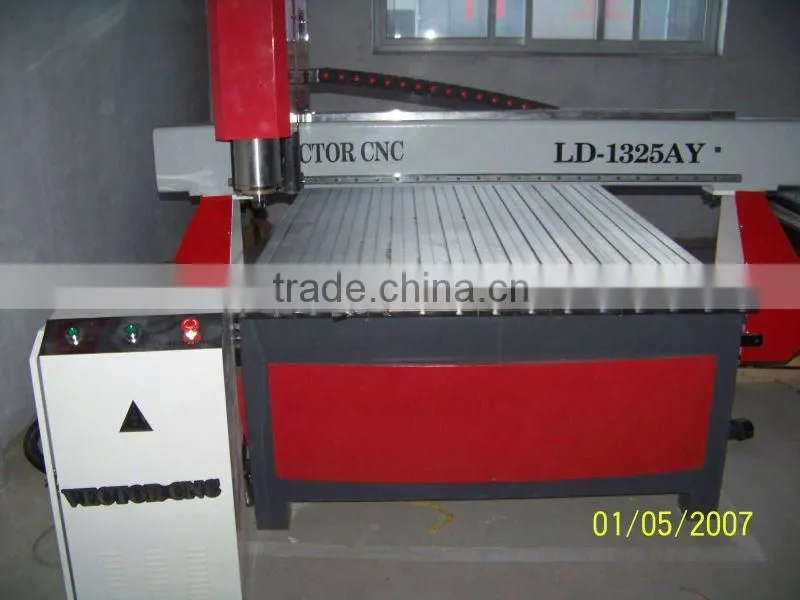

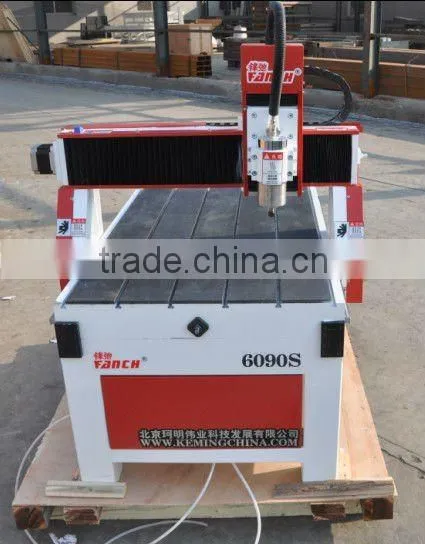

Similar model :
