DSP Controller for Cnc Router Engraver Machine SKD-3015ATC
US$ 15,000 - 30,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
CNC
Place of Origin:
Beijing, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin port of China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
3D CNC Router Machine for Aluminum SKD-3015ATCUS$ 15,000 - 30,000MOQ: 1 Set -
Used Wood CNC Router for Sale Craigslist From China SKD-3015ATCUS$ 15,000 - 30,000MOQ: 1 Set
-
Mini CNC Vertical Machining Center SKD-3015ATCUS$ 15,000 - 30,000MOQ: 1 Set
-
Woodworking CNC Router Machine From China Manufacturer SKD-3015ATCUS$ 15,000 - 30,000MOQ: 1 Set
-
CNC Router Bits Machine Price From China Manufacturer SKD-3015ATCUS$ 15,000 - 30,000MOQ: 1 Set
Condition
New
CNC or Not
CNC
Place of Origin
Beijing, China
Brand Name
FANCH
Model Number
SKD-3015ATC
Voltage
380V
Power(W)
9.0KW
Dimension(L*W*H)
3200*2200*1700mm
Weight
2500KG
Certification
CE ISO9001
Warranty
1 Year
After-sales Service Provided
Engineers available to service machinery overseas
Product Description
CNC Router Features of 3015ATC:
1. Valuable mechanical solutions and axes handling with prismatic guiders,Easily interchangeable Electric Spindle with separate closed cooling circuit,Automatic lubrication of the sliding devices,
2. PVC table for an easier suction-cups placement and with waterproof function Dual use interface of numerical control for the machine and personal computer,All round security that is fully legally compliant for CE
3. Double seal suction cup system more performing,Ergonomic console with touchscreen monitor,Generously sized working table for the placement of multiple pieces, Easy accessibility to the working area giving full access for carnage.
4. X,Y and Z-axis can move independently, ensuring its rigidity and high precision.
5. High-strength cast-iron platform adds to the weight of machine,making loading higher and running more smoothly.
6. With patented right, the positioning device of pressure roller makes loading and unloading of the work-piece easy, quick and accurate.The force acting on the workpiece is more larger, so it can bear the high shock load, improve efficiency and quality.
7. The unique-processing mode ensures that the product has high precision,and the polishing wheelhead has self-compensating function and patent,which can make the stone polish rapidly and improve quality of products.
8. It has advanced programming software and twelve ATCs,which accomplish all processes from forming to polishing,such as grinding,engraving,cutting,for special-shaped stone whether it is straight or curved edge.
9. Adopt imported Japan Yaskawa bus control servo drive system, big torque, high accuracy, high speed and stable performance;
10. Italy EMA 11KW spindle with automatic tool change spindle, central water cooled, speed 2000 ~ 12000RPM, equipped with 18 large-capacity magazine, high-speed precision machining.
11. Adopt advanced Taiwan EM20 CNC control systems, good compatibility, can be compatible with Artcam, Type3, Coreldraw, Ucancam such as CAD, CAM design software, can control the completion of the multilayer surface 3D processing, can carry on the fast smooth three-dimensional processing, carving and cutting. Be compatible with U disk read, more convenient operation
12. The cable adopts YC CNC machine tools high flexible cable shield machine of reciprocating motion of up to 8 million times.
13. Standard centralized lubrication system, convenient operation, and collective supply, so that the machine parts service life is greatly improved.

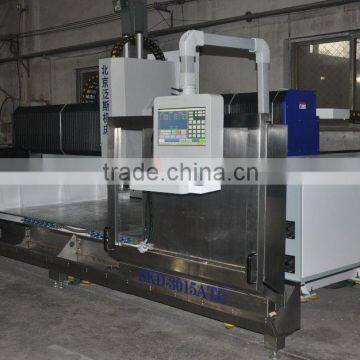

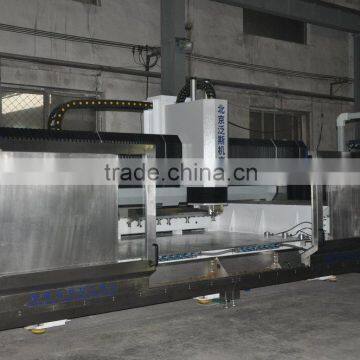

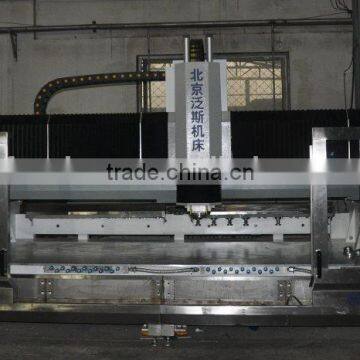

Product Photos
Application Scope
Sorry, this Video Updating. You can send us ENQUIRY for more Videos.
2.woodworking Artwork
3. STONE kitchen work
4. Furniture
5. STONE work
6. Artwork
