Product Application

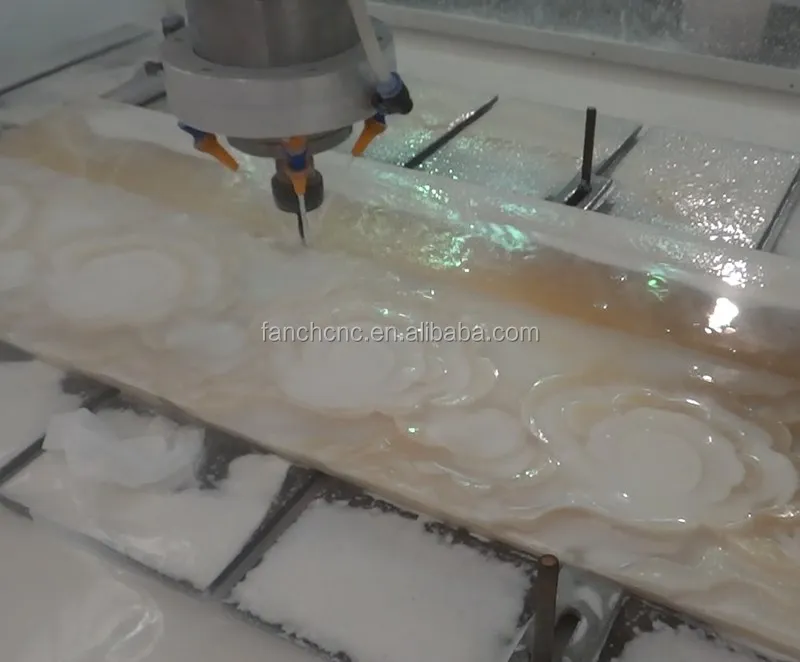

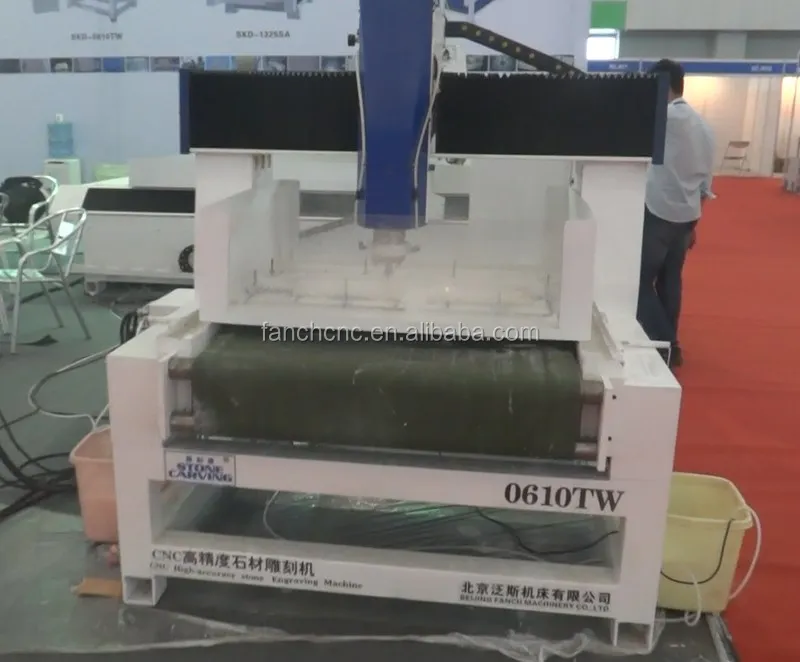

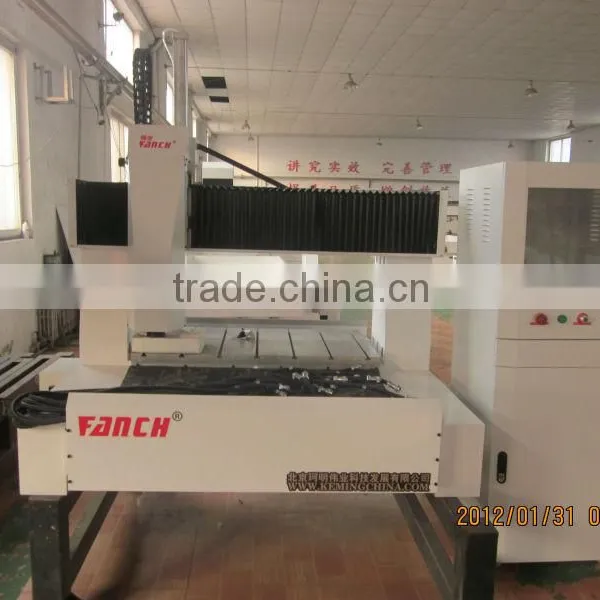

SKD-0610TW is cnc stone carving router desgined for small stone relief engraving. It can process max 1000*600*300mm stone materials, such as granite, marble,
Main Features
1) 1.2mm thickness steel seamless welded and quenched lathe can provide better stability for operation and make sure the load-carrying capacity.
2) PVC table for an easier suction-cups placement and with waterproof function Dual use interface of numerical control for the machine and personal computer,All round security that is fully legally compliant for CE.
3) Double seal suction cup system more performing,Ergonomic console with touchscreen monitor,Generously sized working table for the placement of multiple pieces, Easy accessibility to the working area giving full access for carnage.
4) X,Y and Z-axis can move independently, ensuring its rigidity and high precision.
5) High-strength cast-iron platform adds to the weight of machine,making loading higher and running more smoothly.
6) Patented positioning device of pressure roller makes loading and unloading of the work-piece easy, quick and accurate.The force acting on the workpiece is more larger, so it can bear the high shock load, improve efficiency and quality.
7) The unique-processing mode ensures that the product has high precision, and the polishing wheel head has self-compensating function and patent, which can make the stone polish rapidly and improve quality of products.
8) It has advanced programming software and twelve ATCs, which accomplish all processes from forming to polishing, such as grinding, engraving, cutting, for special-shaped stone whether it is straight or curved edge.
9) Adopt world famous brand spare parts, to make use the key parts works stable and accurate.
Motor
Name: Spindle motor
Brand: Yaskawa
Original: Japanese
It can provide strong power and long life span. Panasonic and Chinese top brand motor are optional.
Servo
Name: motor servo
Brand: Yaskawa
Original: Japanese
AV servo, under the power angle closed-loop control, the resistance capacity against load disturbance is improved and the problem of out-of-step is efficiently solved.
Spindle
Name: Spindle
Brand: EMA
Original: Italian
Italy origianl EMA spindle, ensure the high effeciently function and long life works.

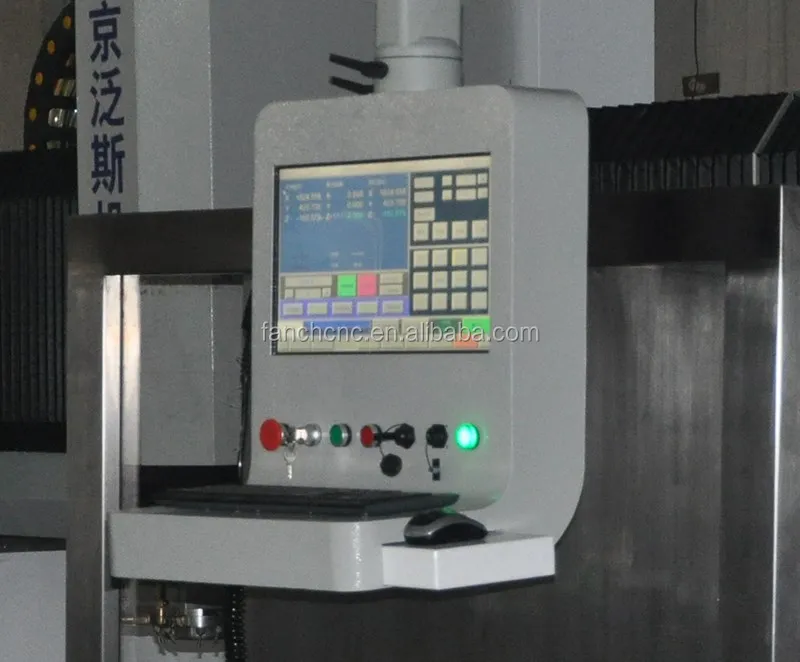

Control system
Name: SYNTEC Control system
Brand: SYNTEC
Original: Taiwan
NC studio system is optional.
Inverter
Name: Delta inverter
Brand: Delta
Original: Taiwan
Top brand inverter ensure the stability of working process. SUNFAR inverter is optional.
Linear rail
Name: Linear rail
Brand: PMI/HIWIN
Original: Taiwan
High specision linear rail 30mm, can make the max moving speed to 80m/min.
How to make a FANCH?
● Everything is starting at making a sturdy machine bed. Using 12mm thickness steel slab, Fanch workers cutting it according to the designed size and seamless welding the structure.
● But that is not good enough to make the sturdy bed. The whole structure quenching at 600℃ is necessary to reduce the mutua repulsion between different steel structure parts.
● In order to get the light but firm gantry, Fanch apply one piece casting aluminum. Seamless make the gantry more stable during fast moving.
● ±0.05 mm deviation straightness of machine bed surface can be got by our Germany imported milling machine. This is the root base of working accuracy and long life service.
● Top brand spare parts further make sure the accuracy, stability and long life span of a Fanch machine.
Woodworking machine factory
Located in Tongzhou district, Beijing, Fanch woodworking factory was stablished in 2006. There are about 100 worker and technicians working in welding, milling and assembly departments.
Laser cutting machine factory
Located in National Innovation Industry Park in Tongzhou, Fanch laser machine assembly department, R&D office and domestic sales office can be found here.
Pre-sale service
1. Free engineer consultant and feedback in 24 hours.
2. Sample specimens and testing vedio of specified machine are available.
3. Factory visit arrangement.
After-sale service
1. Prompt reply in 24 hours.
2. Engineer on-site installation.
3. Call-in Remote diagnosis.
4. Engineer oversea service.
5. Operation training service.
Customized service
1. OEM/ODM service are available.
2. Free engineer consultant
3. Engineer on-site installation and debugging.
4. Operation training service
