high speed and precision wood engraving machine

Specifications

high speed and precision wood engraving machine
FC-1315SY-4
1.NC Studio controller
2.2.2kw water cooled spindle
3.AC Servo

high speed and precision wood engraving machine

FC-1315SY-4



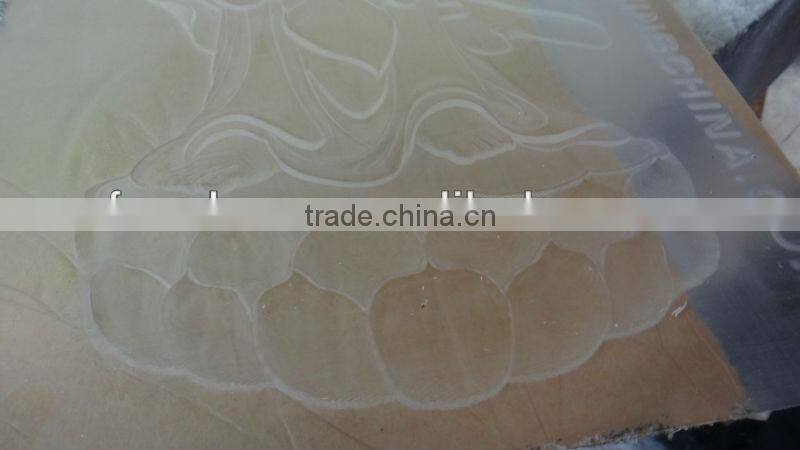

Scope of application:

Widely used in advertising, woodwork processing line, arts and crafts line, metalwork line, can process double-colur board, pvc borad, mould forming, board, copper, aluminum, fireproofing board and so on.

Features of the machine:

High Efficiency = the efficiency of 1 set equal to 4 common models.

High Performance = Double Z axes on one plate with high speed linkage control system, Y axis patent double screw rod lead transmission.

High Quality = Three axes imported straight quadrate rail / ball screw, Japanese servo driving system.

High Guarantee = Work piece damage due to machine quality problems will make unconditional equivalent compensation.

1.The lathe is founded by high-quality steel that ensures the high stability, seamless welded, whole machine using precision machining process, high-temperature aging treatment, rigid and not deformed.

2.All the three axes are using Taiwan imported straight-square rail, two rows and four lines-rolling block devices that ensures its high loading capability, moves steady, high precision and wearability.

3.Adopt Japanese servo drive system,high torque and precision,fast and stable performance.

4.All axes use Taiwan TBI high precision screw rod,high accuracy in working. Y axis double screw rod lead transmission.

5.Four 1.5W water cooling spindles, little noise and It can work continually without maintaining.

6.Aluminium table, fix by clamp. Wholistic processing before putting on the aluminum sectional material. Make sure the table surface at the same level.

7.Advanced Ncstudio control system, work through computer, separate control cabinet. Good capability with Type3, Arccame, Castmate, Artcut, CAD, CAM and other design softwares. It can control the 3D-processing when process, engrave and cut quickly and smoothly, can operate after accident or next day processing so it is very convenient.

8.Intelligent protection for working table that can prevent misuse or software errors from damaging the surface. Its protection of step beyond the boundary avoids crashing while design area beyond processing area.

9. High-strength cable drag chains.

10.standard America industrial aviation plugs links.

Performance parameter:

Outer dimensions	2600*2500*1700mm
Working area	1600*1800mm
Z axis travel	>200mm
Maximum Feed-in height	200mm
Spindle power	1.5kW*4
Working speed	12m/min
Resolution ratio	0.025mm
Command Language	Code G*.u00*.mmg*.plt
Software operating environment	Windows98/2000/XP
Working Voltage	AC220V/50Hz
Spindle rotating speed	6000-24000rpm/min
Work Mode	Servo, srew rod lead transmission
Rail	Imported Taiwan square rail
Control system	Ncstudio
Table	Aluminum table with clamp
Structure	Seamless welding steel structure
Machine Weight	1.5T
