Specifications
Relief Engraving Machine CNCrelief engraving machine
With CE
Low Price

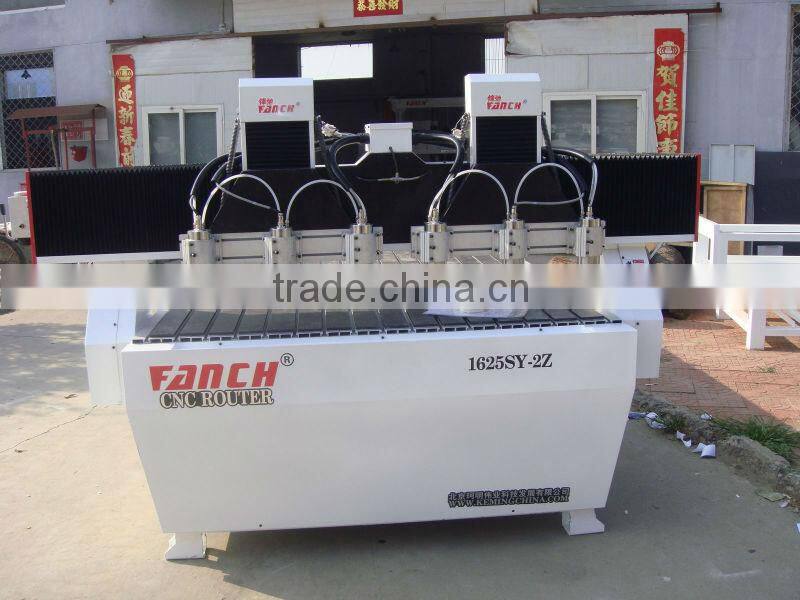

Relief Engraving Machine CNC
cnc wood carving router machine
CNC Engraving Router Machine for Wood Relief
Characters of FC-1625SY-4
1.The lathe is founded by high-quality steel that ensures the high stability, seamless welded, whole machine using precision
machining process, high-temperature aging treatment, rigid and not deformed.
2.All the three axes are using Taiwan imported straight-square rail, two rows and four lines-rolling block devices that ensures its high loading capability, moves steady, high precision and wearability.
3.Adopt Japanese Yaskawa servo drive system,high torque and precision,fast and stable performance.
4.All axes use Taiwan TBI high precision screw rod,high accuracy in working.
5.Four 2.2KW water cooling spindles, little noise and It can work continually without maintaining.
6.Aluminium table, fix by clamp. Wholistic processing before putting on the aluminum sectional material. Make sure the table surface at the same level.
7.Advanced Ncstudio control system, work through computer, separate control cabinet. Good capability with Type3, Arccame, Castmate, Artcut, CAD, CAM and other design softwares. It can control the 3D-processing when process, engrave and cut quickly and smoothly, can operate after accident or next day processing so it is very convenient.
8.Intelligent protection for working table that can prevent misuse or software errors from damaging the surface. Its protection of step beyond the boundary avoids crashing while design area beyond processing area.
Performance parameter:
Outer dimensions |
2400*2900*1600mm |
Working area |
1800*2500mm |
Z axis travel |
>200mm |
Maximum Feed-in height |
200mm |
Spindle power |
2.2KW*4 |
Working speed |
12m/min |
Resolution ratio |
0.025mm |
Command Language |
Code G*.u00*.mmg*.plt |
Software operating environment |
Windows98/2000/XP |
Working Voltage |
AC220V/50Hz |
Spindle rotating speed |
6000-24000rpm/min |
Work Mode |
Servo, srew rod lead transmission |

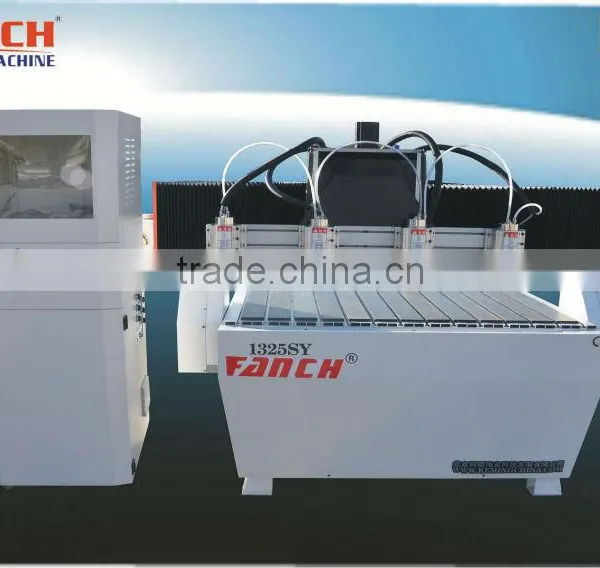

Image in Workshop:
