Specifications

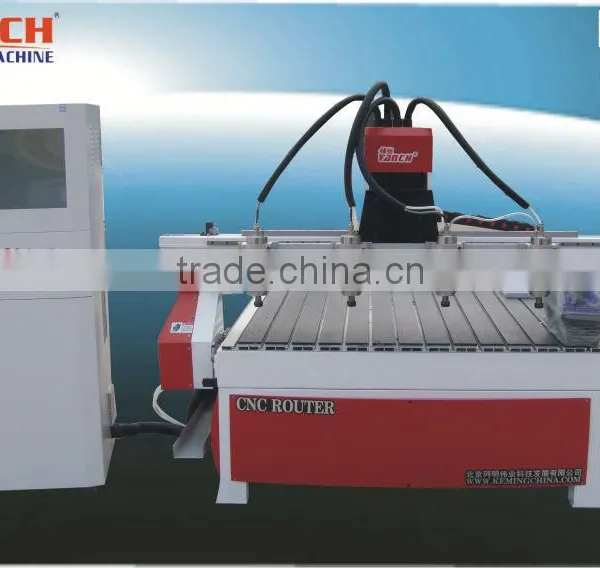

I can speak Russiancnc router for wood /plastic/ double-colur boar
furniture making machine
Ncstudio controller
FC-1325MS-4
cnc advertising machine
Scope of application:
Widely used in advertising, woodwork processing line, arts and crafts line, metalwork line, can process double-colur board, pvc borad, mould forming, board, copper, aluminum, fireproofing board and so on.
Features:
1. The lathe is founded by high-quality steel and upright, support plate, using aluminum cast process that ensures the high stability.
2. Driving rail adopts original Taiwan imported 25mm square lead rail.
3. Z axis adopts Taiwan TBI original coarse pitch precise rubbing screw rod, high precision transmission
4. High performance transducer, high frequency electronic anti-jamming system.
5.Y axis uses double-motor in-phase drive that ensure the machine equality and smoothly running.
6.high performance transducer, high frequency electronic anti-jamming system.
7. Using high accurate pinion and rack transmission. The highest speed is 18m/min. It can clearly engrave the 1mm small word.
8. Spindle adopts domestic 2.2KW water-cooling motor, which is very powerful and with little noise .It can work continually without maintaining.
9. Intelligent protection for working table that can prevent misuse or software errors from damaging the surface. Its protection of step beyond the boundary avoids crashing while design area beyond processing area.
10. equip with standard America industrial aviation plugs links, soft metal cable sheath, avoids the cable damage situation from the press & bump effectively.
11.cable adopts YC numerical control machine shielding line, can reciprocate eight million times.
12.Advanced industrial controlling system is compatible to many dictate formats that can operate after accident or next day processing so it is very convenient
FC-1325A Technology Parameter
Outer dimension |
1850X3000X1600mm |
X,Y axis travel |
1300X2500mm |
Z axis travel |
>150mm |
Table size |
1340X3000mm |
Max running speed |
18m/min |
Max feed-in height |
150mm |
Resolution |
0.025mm |
Command language |
HPGL,G code .u00 .mmg .plt |
Software operating environment |
Windows98/2000/XP |
Power(not include spindle) |
600W |
Work voltage |
Dc220V/50Hz |
Spindle power |
2.2kw |
Spindle rotating speed |
6000—24000rpm/min |
Work mode |
Steper (rack transmission) |
