Specifications
StableArtistic design
High efficiency
CE certificate

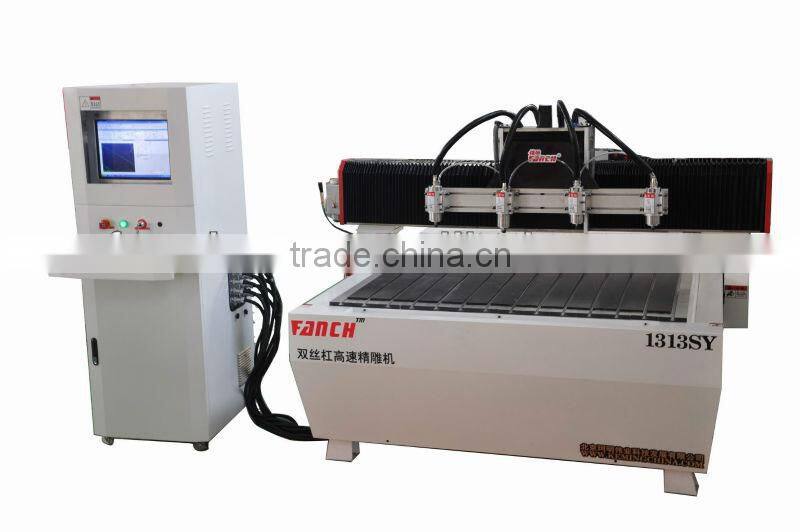

FC-1313SY
Scope of application:
Widely used in advertising, woodwork processing line, arts and crafts line, metalwork line, can process double-colur board, pvc borad, mould forming, board, copper, aluminum, fireproofing board and so on.
Features of the machine:
High Efficiency = the efficiency of 1 set equal to 4 common models.
High Performance = Four spindles on one plate, Y axis patent double screw rod lead transmission.
High Quality = Three axes imported straight quadrate rail / ball screw, Japanese servo driving system.
High Guarantee = Work piece damage due to machine quality problems will make unconditional equivalent compensation.
1.The lathe is founded by high-quality steel that ensures the high stability, seamless welded, whole machine using precision machining process, high-temperature aging treatment, rigid and not deformed.
2.All the three axes are using Taiwan imported straight-square rail, two rows and four lines-rolling block devices that ensures its high loading capability, moves steady, high precision and wearability.
3.Adopt Japanese servo drive system,high torque and precision,fast and stable performance.
4.All axes use Taiwan TBI high precision screw rod,high accuracy in working. Y axis double screw rod lead transmission.
5.Four 2.2KW water cooling spindles, little noise and It can work continually without maintaining.
6.Aluminium table, fix by clamp. Wholistic processing before putting on the aluminum sectional material. Make sure the table surface at the same level.
7.Advanced Ncstudio control system, work through computer, separate control cabinet. Good capability with Type3, Arccame, Castmate, Artcut, CAD, CAM and other design softwares. It can control the 3D-processing when process, engrave and cut quickly and smoothly, can operate after accident or next day processing so it is very convenient.
8.Intelligent protection for working table that can prevent misuse or software errors from damaging the surface. Its protection of step beyond the boundary avoids crashing while design area beyond processing area.
Performance parameter:
Outer dimensions |
2000*2000*1600mm |
Working area |
1300*1300mm |
Z axis travel |
>200mm |
Maximum Feed-in height |
200mm |
Spindle power |
2.2kW*4 |
Working speed |
12m/min |
Resolution ratio |
0.025mm |
Command Language |
Code G*.u00*.mmg*.plt |
Software operating environment |
Windows98/2000/XP |
Working Voltage |
AC220V/50Hz |
Spindle rotating speed |
6000-24000rpm/min |
Work Mode |
Servo, srew rod lead transmission |
Rail |
Imported Taiwan square rail |
Control system |
Ncstudio |
Table |
Aluminum table with clamp |
Structure |
Seamless welding steel structure |
Machine Weight |
1.5T |
