Help Center220V LED Downlight 3W Square
US$ 1 - 10
MOQ: 5 Pieces
Key Specifications
Get Latest Price
LED Light Source:
High Power LED
Warranty(Years):
2
Input Voltage(V):
100-240
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Triac Dimmable LED Downlight COB 20W,High Power LED Spotlight 2016 Hot New Product Shenzhen FactoryUS$ 10 - 15.5MOQ: 5 Pieces -
COB 15W Led Downlight Square 1500LMUS$ 12 - 20MOQ: 5 Pieces
-
Commercial White Cob Downlight Led, Led Cob DownlightUS$ 12 - 20MOQ: 5 Pieces
-
180 Adjustable LED 3W COB Downlight 230V 40 DegreeUS$ 1 - 10MOQ: 5 Pieces
-
COB 5W LED Downlight Dimmable 2016 Hot NewUS$ 7 - 10MOQ: 5 Pieces
LED Light Source
High Power LED
Warranty(Years)
2
Input Voltage(V)
100-240
Lamp Luminous Efficiency(lm/w)
80
Color Temperature(CCT)
Other, Warm White,Pure White,Cool White
Working Temperature(℃)
-20, 40
Working Lifetime(Hour)
50000
Lamp Body Material
Aluminum
IP Rating
Other, IP50
Certification
CE, EMC, LVD
Model Number
LED Downlight
Place of Origin
Guangdong, China
Brand Name
OEM
Specifications
220V LED Downlight 3W Square1W 3W 4W 5W 6W 7W 9W 12W 15W 18W 24W
Dimmable and Undimmable LED Downlight
CE,RoHS
OEM ODM
220V LED Downlight 3W Square
220V LED Downlight 3W Square Specification:
| NO. | VOLTAGE(V) | POWER(W) | LED QTY. | LED TYPE | LUMENS FLUX (Lm)(white) | Size:mm | IP Grade |
| BG-601 | AC85-265 | 1 W | 1*1W | 1W(HP) | 80~90 Lm | Φ51mm Cut size:Φ44mm |
IP50 |
| BG-602 | AC85-265 | 1 W | 1*1W | 1W(HP) | 80~90 Lm | 60x60mm Cut size:Φ45mm |
IP50 |
| BG-605 | AC85-265 | 3 W | 3*1W | 1W(HP) | 240~260 Lm | Φ90x48mm Cut size:Φ70mm |
IP50 |
| BG-607 | AC85-265 | 4 W | 4*1W | 1W(HP) | 320~350 Lm | Φ90xmm Cut size:Φ75mm |
IP50 |
| BG-613-P3 | AC85-265 | 3 W | 3*1W | 1W(HP) | 240~260 Lm | 92x92x43mm Cut size:Φ82mm |
IP50 |
| BG-614-P6 | AC85-265 | 6 W | 6*1W | 1W(HP) | 480~520 Lm | 175x92x43mm Cut size:160x82mm |
IP50 |
| BG-615 | AC85-265 | 9 W | 9*1W | 1W(HP) | 720~780 Lm | 255*92*45mm Cut size:245*82mm |
IP50 |
| BG-616 | AC85-265 | 4 W | 4*1W | 1W(HP) | 320~350 Lm | 125X125X43mm Cut size:102*102mm |
IP50 |
| BG-617 | AC85-265 | 12 W | 12*1W | 1W(HP) | 720~1050 Lm | 175*175*45mm Cut size:160*160mm |
IP50 |
| BG-622 | AC85-265 | 5 W | 5*1W | 1W(HP) | 400~430 Lm | Φ107x70mm Cut size:Φ75mm |
IP50 |
| BG-623 | AC85-265 | 7 W | 7*1W | 1W(HP) | 560~620 Lm | Φ105x120mm Cut size:Φ92mm |
IP50 |
| BG-624 | AC110-260 | 9 W | 9*1W | 1W(HP) | 720~780 Lm | Φ132x70mm Cut size:Φ120mm |
IP50 |
| BG-625 | AC110-260 | 12 W | 12*1W | 1W(HP) | 720~1050 Lm | Φ132x70mm Cut size:Φ120mm |
IP50 |
| BG-625-P24 | AC110-260 | 24 W | 12*2W | 3W(HP) | 960~1050 Lm | Φ132x70mm Cut size:Φ120mm |
IP50 |
| BG-626 | AC110-260 | 15 W | 15*1W | 1W(HP) | 1200~1275 Lm |
Φ168x110mm Cut size:Φ155mm |
IP50 |
| BG-627 | AC110-260 | 18 W | 18*1W | 1W(HP) | 1440~1530 Lm |
Φ180x100mm Cut size:Φ165mm |
IP50 |

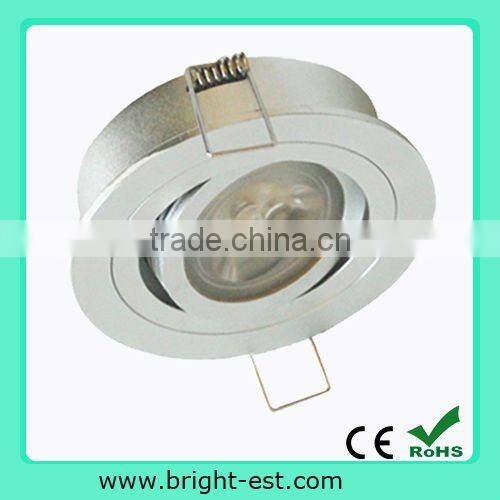

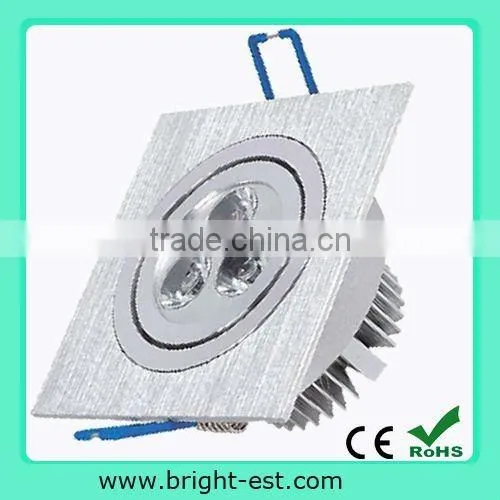

LED Downlight, LED Down Light pictures:
