Product Details
Place of Origin: | Jiangsu, China | Brand Name: | Sinoma |
Product Description
Specifications
This kind of stacker and reclaimer is especially designed for stacking and reclaiming materials like coal, limestone and clay.STACKER AND RECLAIMER SERIES
Product Introduction:

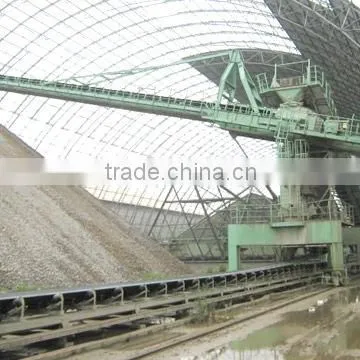

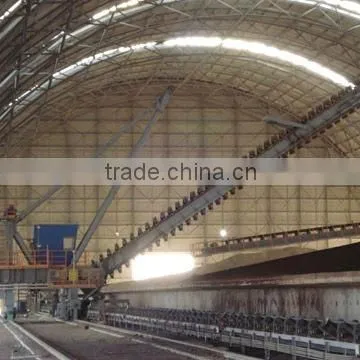

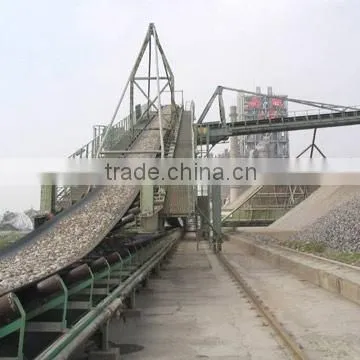

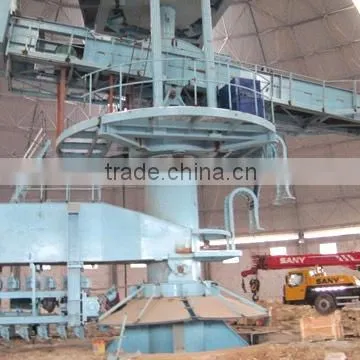

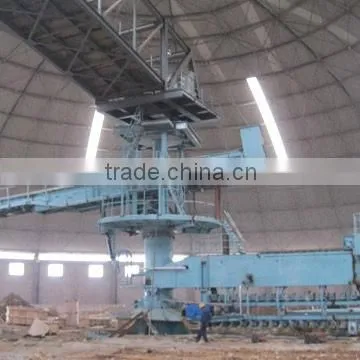

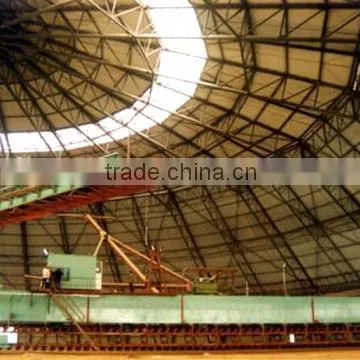

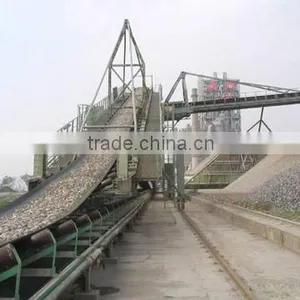

The stacker and reclaimer produced by our company includes: circular stacker and reclaimer, long sided boom stacker, sided scraper reclaimer, and bridge-type scraper reclaimer. It is a kind of pre-homogenizing equipment for continuous operation with large storage capacity and high efficiency, and its main feature is of good homogenizing effect. It is widely used for raw material yard in basic industries such as chemical and cement plant etc.. It is suitable for long or circular stockyard, and stockyard for homogenizing, storage and transfer of bulk material indoors or outdoors. It is an ideal equipment for transporting and handling bulk material owing to its continuous operation for stacking and reclaiming bulk material like coal, iron ore and limestone etc.. We shall select the applicable product to the requirements of each client.
MAIN TECHNICAL DATA:
| Stacker | Reclaimer | Circular Stacker | ||||
Long | Bridge-type | Sided | |||||
DCX Series | QQB Series(Upbent) | QQB Series(Inclined) | QC Series | φ60(m) | φ80(m) | φ90(m) | |
Capacity(t/h) | 80-1500 | 60-300 | 100-800 | 100-600 | 450-500 | 450-500 | 600-800 |
Material | Coal, Additives | Crushed Coal | Limestone | Clay, Iron Powder, Wetted Ash, Sandstone | Limestone | Limestone | Limestone |
Bulk Density (t/m3) | 1.5 | 0.9 | 1.36 | 0.9-1.45 | 1.45 | 1.45 | 1.45 |
Material Size(mm) | 0~80 | 0~30 | 0~80 | 0~50 | 0~80 | 0~80 | 0~80 |
