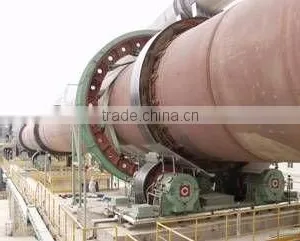

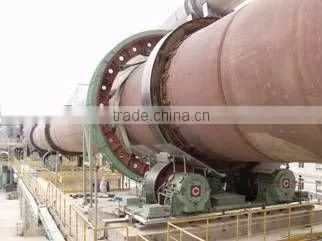

This kind of rotary kiln is specially designed for calcining clinker in cement plant.Rotary Kiln
The rotary kiln produced by our company includes: Φ3.2×52m, Φ3.5×54m, Φ4.0×60m, Φ4.3×64m, Φ4.8×74m, Φ5.0×78m. It is the main equipment for burning cement clinker. Through technology innovation in the calcining system, the most advanced hydro-damper device, and the advanced domestic technologies such as high accuracy plunger metering pump, high accuracy speed control valve, and contact-type graphite block sealing device,are widely used in this system, This equipment is widely used in cement, metallurgy and chemical etc. industries. It is made up of kiln body, support device, supporting device with damper, driving unit, moving kiln head, sealing device for kiln tail, burning device and etc. parts. It has features of simple structure, reliable operation, and easy production process etc.
MAIN TECHNICAL DATA
Size(m) |
Capacity(t/d) |
Inclination(%) |
Supports(pc) |
Damper Type |
Kiln Rotation Speed |
Main Drive |
Auxiliary Drive |
||||
Main Drive(r/m) |
Auxiliary Drive(r/m) |
Motor Power(KW) |
Reducer (Overall Ratio) |
Motor Power (KW) |
Reducer (Overall Ratio) |
||||||
φ2.8/2.5×44 |
300 |
3.5 |
3 |
Mechanical |
0.445-2.22 |
4.75 |
55 |
49-63 |
4 |
40.44 |
|
φ3×48 |
600-700 |
3.5 |
3 |
Mechanical/ Hydraulic |
0.676-3.38 |
9.36 |
100 |
50 |
7.5 |
14 |
|
φ3.2×50 |
1000 |
3.5 |
3 |
Hydraulic |
0.36-3.57 |
6.5 |
160 |
40 |
15 |
31.5 |
|
φ3.3×50 |
1200 |
4 |
3 |
Hydraulic |
0.36-3.57 |
5.61 |
160 |
40 |
11 |
31.5 |
|
φ3.5×54 |
1500-1800 |
4 |
3 |
Hydraulic |
0.39-3.9 |
7.66 |
220 |
28 |
18.5 |
45 |
|
φ4×60 |
2500 |
4 |
3 |
Hydraulic |
0.41-4.07 |
8.2 |
315 |
22.4 |
22 |
45 |
|
φ4.3×64 |
3500 |
4 |
3 |
Hydraulic |
0.4-4.0 |
7.93 |
400 |
31.5 |
30 |
45 |
|
φ4.8×74 |
5000 |
4 |
3 |
Hydraulic |
0.35-4 |
8.52 |
630 |
42.226 |
55 |
28 |
|
φ5.0×74 |
6000 |
4 |
3 |
Hydraulic |
0.35-4 |
7.58 |
710 |
28 |
55 |
45 |
|
φ5.6×87 |
8000 |
4 |
3 |
Hydraulic |
Max4.23 |
8.7 |
800 |
23.901 |
90 |
35.795 |
|
φ6.0×95 |
10000 |
4 |
3 |
Hydraulic |
Max5 |
9.2 |
950×2 |
26.646 |
132 |
35.795 |
|
