Specifications
WiFi LED Controller1.DC5V-DC24V
2.External dimension: L107*W65*H30(mm)
3.3 channels
4.current: 4A*3

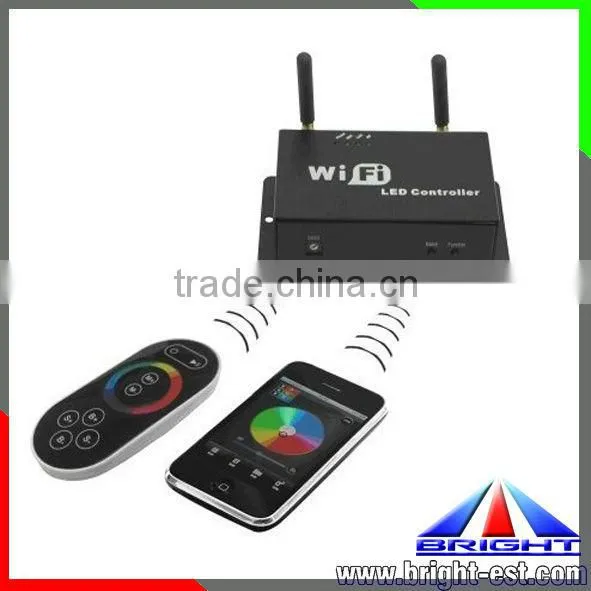

Magic Lighting RGB Remote Wifi Controller,Programmable RGB Controller
1:Working voltage: DC5--24V
2:Output control: can flexible control 3 channel, 2 channel, 1 channel LED lamps.
3:Output current: 4A*3
4:Connect mode: common anode
5:External dimension: L107*W65*H30(mm)
6:Receiving sensitivity: 802.11b DSSS(-5dBm),802.11b CCK (-10dBm),802.11g
OFDM(-15dBm)
Ipad rgb led controller
1.Can be control by mobile phone with Android or IOS.
2.Wifi control
3.LED Remote controller
Ipad rgb led controller
1.Product summarize
LED-WiFi controller is following the traditional with infrared, RF technology controller foundation,
it is birth of market and customer's demand, it is one type controller which integration the newest
wifi technical in the market. It makes the LED control more convenience, more hommization. We
can use an Android system or IOS system mobile phone to install control software, then it can control
LED, this is the wishes of every customer.Use WiFi technology can make our control range more wider,
can get rid of narrow space constraint, in building can control more than 50m, in outdoor can control more
than 100m.In the condition of not use the mobile software, also can use the remote control to control,
very convenience, bring many choices for you.
Feature
1.Adopt the newest WIFI technology,make the control mode more novel,convenient,hommization,very suitable for young peopel to use.
2.Variety of operating mode,can use smartphone,pad to control;also can use touch remote to control.
3.High optimized for general use,support most of the Andros system mobile phone and iphone in the market.
4.Output way is diversiform,have RGB,SPI output,also can Multi point control.
5.Control range is wide,it can control 50m in building,control more than 100m in outdoor.
6.Connecting with RGB amplifier,can infinitely enlarge the output power.
3.Technical Parameters
1.Working temperature:-20-60°C
2.Power supply method:AAA*3
3.Supply voltage:1.5V*3
4.Standby power;0.015mW
5.Standby current:3uA
6.Working current:200uA
7.Emission current:10mA
8.Remote control distance:about 50m
9.Standby time:6 month
Software technical parameters
1.Name:Dream Color
2.Runtime platform:Android version support Android system(better one can support
Samsung, HTC), IOS version support IOS system, equipment must have WiFi function.
3.Byte: Android version(622K),IOS version(581K).
4.Language: English
5.Category: communications
6.Free, green, no plug-ins
Controller technical parameters
1.Working voltage: DC5--24V
2.Output control: can flexible control 3 channel, 2 channel, 1 channel LED lamps.
3.Output current: 4A*3
4.Connect mode: common anode
5.External dimension: L107*W65*H30(mm)
6.Receiving sensitivity: 802.11b DSSS(-5dBm),802.11b CCK (-10dBm),802.11g
OFDM(-15dBm)
4.Dream Color Instruction
This software have Android version and IOS version, according to your mobile phone to choose
to install, below respectively introduce Android version and IOS version install and use method:
Android version install as below:
Open the optical disk can see the Dream Color erection Sequence Click DreamColor.apk to install
Installation complete click
Open application
1. On Off key 2. color disk 3. mode key 4. speed/brightness bar
5. RGB mode LED control window
6. Cold white and warm white mode LED control window
7. Dimmer mode LED control brightness window
8,Dream Color software setting window
Following is control color temperature and brightness two mode page:
CT mode page(cold warm white mixed mode) DIM mode page(dimmer mode)
Applications:
. RGB LED Strip
. RGB LED Module
. RGB LED Wall washer light
… …
Express Delivery:
Payment Terms:
1.T/T (in advance)
2.Paypal
3.Western Union
