Help CenterDC24V RGB Controller 6A,IR 44 Keys LED Controller
Related Products
-
DC12V IR 44Keys RGB Controller 6AUS$ 3.6 - 3.7MOQ: 10 Pieces -
44 Keys DC12V IR RGB LED Controller 6AUS$ 3.6 - 3.7MOQ: 10 Pieces
-
44 Keys Mini RGB Controller,DC12V LED RGB ControllerUS$ 3.6 - 3.7MOQ: 10 Pieces
-
44 Keys RGB Controller,Mini LED RGB ControllerUS$ 3.6 - 3.7MOQ: 10 Pieces
-
44 Keys LED Remote Controller,Mini RGB ControllerUS$ 3.6 - 3.7MOQ: 10 Pieces
Specifications
44 keys LED RGB Controller1.DC5V-DC24V
2.output current:2A*3
3.Output:3 channels
4.Control Mode: 18 Change Mode
DC5V,12V,18V,24V Mini LED RGB Controller
44Keys RGB Controller
1. output: 3 channels
2 connecting mode: common anode, launch reception frequency: 315 Mhz
3. output current: <2 A (each channel)
4. working temperature: -20-60 °C
5. Control Mode: 18 Change Mode
6. Non-Water Proof
7.Supply voltage: DC5V, DC12V, DC18V, DC24V
8.Output power: 5V: <30W, 12V: <72W, 24V: <144W
9.All of the brightness and the speed is adjustable
10.With the specified color selection function,With control lock function
| SPECIFICATIONS | |
| PART NUMBER : | IR44KRGB |
| Controller Type | RGB Controller |
| Input Voltage | 12 Volt DC |
| Maximum Load | 3 x 2 Amps per Channel |
| Output Power | 72 Watt |
| Output Programs | 16 colors and 5 light patterns |
| Dimension | IR Receiver : 35*22*63mm ; Remote Panel : 124.5*56*7mm; Wire length : 250mm |
| Remote Controlled | Yes |
| Remote Control Type | IR Remote Control |
| Batteries | 1 x CR2025 |
| Accessories Included | IR Receiver and Remote |

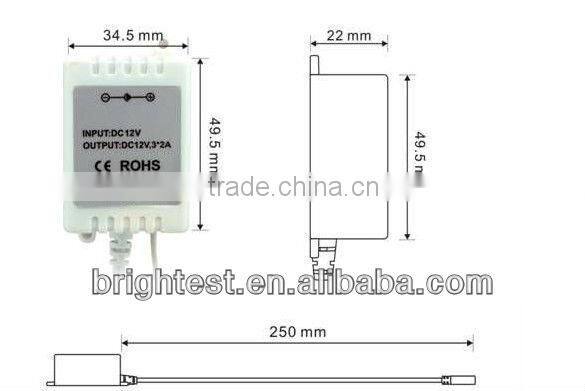

Controller dimension:

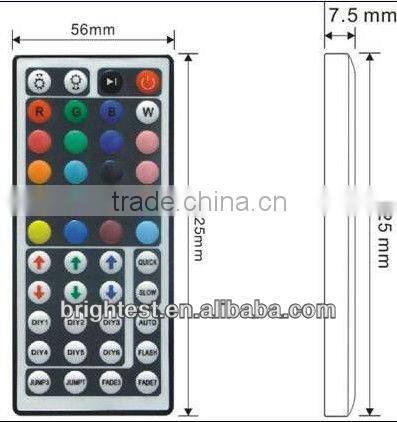

Remote control dimension:

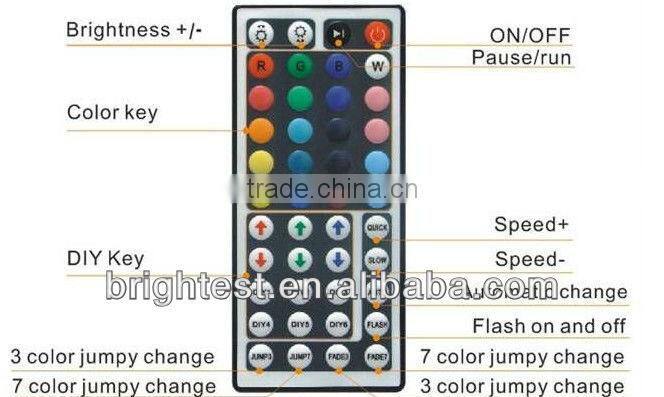

Control method
Adopt IR remoter to control the led controller, which has 44 buttons, the function of each button as the table below
Brightness +(8 in all) |
Brightness –(8 in all) |
Pause/Run |
On/Off |
Static red |
Static green |
Static blue |
Static white |
Static orange |
Static pea green |
Static dark blue |
Static milk white |
Static dark yellow |
Static cyan |
Static lyons blue |
Static white pink |
Static yellow |
Static light blue |
Static pink |
Static green-white |
Static light yellow |
Static sky blue |
Static brown |
Static blue white |
Increase red |
Increase green |
Increase blue |
Speed up |
Decrease red |
Decrease green |
Decrease blue |
Speed-down |
DIY Key1 |
DIY Key2 |
DIY Key 3 |
Automatic change |
DIY key4 |
DIY Key5 |
DIY Key 6 |
Flash on and off |
3 color jumpy change |
7 color jumpy change |
3 color fade change |
7 color fade change |
Packing
1pc in white box, White box: L137*W68*H52mm
100pcs/carton, carton size:L22.64'*W14.6'*H11.22'/2.15'
Summarization
44-key infrared LED RGB controller adopts the advanced micro control unit, it is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light, flexible light strip, wall washer lamp, glass curtain wall light and so on; At the same time, it has many advantages such as convenient connection ,simplicity to use and others. According to the actual need of customers, it can carry out jumpy changing, gradual changing and other effects of change. Total 44 modes for your choice.
24 keys RGB LED Controller:
Other LED Controller:
Applications:
. RGB LED Strip
. RGB LED Module
. RGB LED Wall washer light
… …
