Specifications
RGB led Controller,led rgb controller1. Input voltage:DC12V-24V
2. Current:<6A(three Channel)
3.Output gray:256 levels
RGB led Controller,led rgb controller with DC12V-24V
Specifications:
RGB led Controller
1. Input voltage:DC12V-24V
2. Current:<6A(three Channel)
3.Output gray:256 levels (RGB each
4.433.MHZ
RF LED Touch Controller
Working temperature |
-20-60°C |
Supply voltage |
DC5V,12V~24V |
0utput |
3 channels |
Connecting mode |
common anode |
External dimension |
L127*W42*H33 (mm) |
Packing size |
L135*W55*H40 (mm) |
Net weight |
270g |
Gross weight |
310g |
Output gray |
256 levels (RGB each) |
Output current |
<6A(each channel) |
Output power |
12V:<216W, 24V:<432W |
Frequency of RF remote control |
433.9MHz |

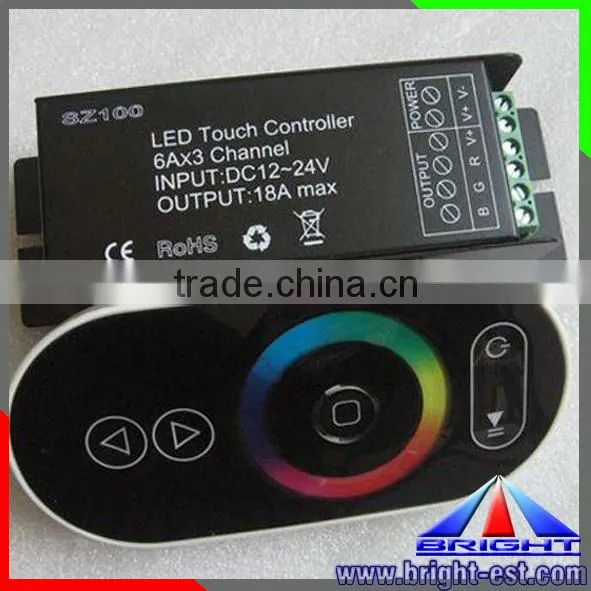

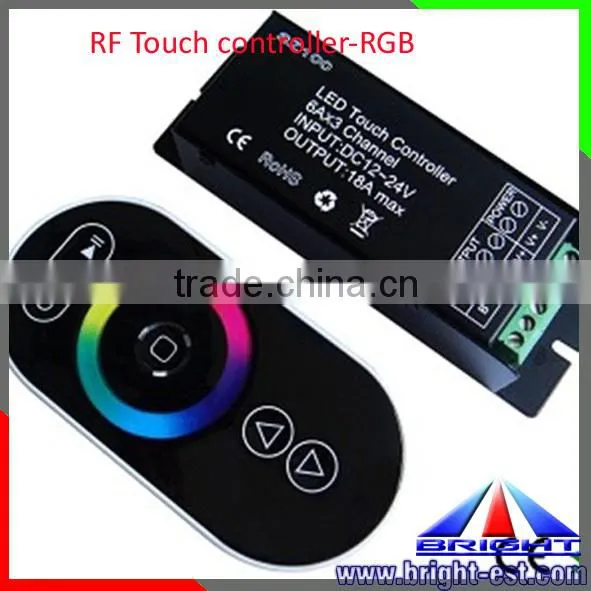

RF touch controller adopts the advanced micro control unit, it is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light, flexible light strip, wall washer lamp, glass curtain wall light and so on; it has many advantages such as touch remote control, easy connection and simplicity to use. Meanwhile, you can adjust brightness, static color choices and various dynamic changes in lighting effects through wireless touch remote control. And according to the actual need of customers, it can carry out jumpy changing, gradual changing, stroboflash and other effects of change.
Trade term:
1. Payment:Paypal,T/T,Western Union.
2. Production lead time for 3-5days
3. MOQ:1pcs
Our Service:
1. Your inquiry related to our products and prices will be replied in 24hours.
2. OEM and ODM, any your customized controller we can help you design.
Our company:
Notes:
1. Supply voltage of this product is DC12~24V, never connect to other voltage.

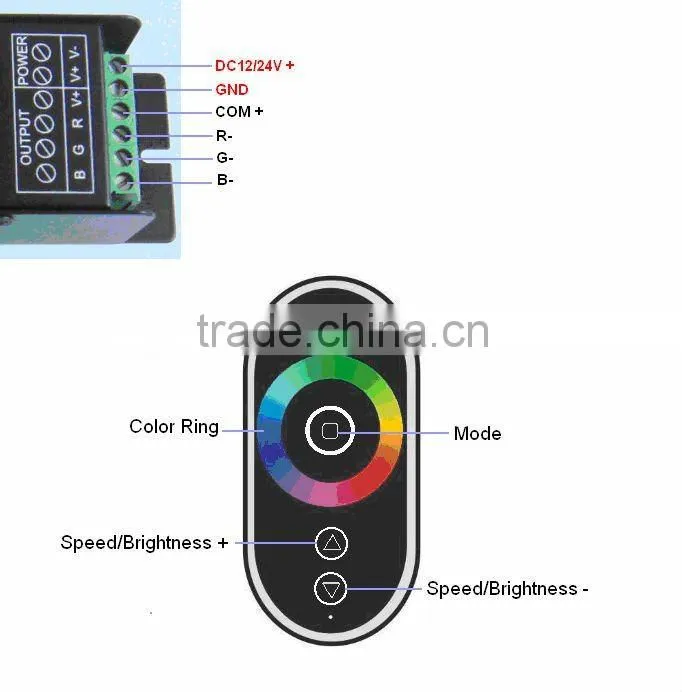

2. Lead wire should be connected correctly according to grade that connecting diagram offers.
3. This product is not to overload.
4. Warranty of this product is one year, but exclude the artificial situation of damaged or overload working.
express delivery:
Payment Method:
TT, paypal, Western Union
Any question, please don't hesitate to contact me.
