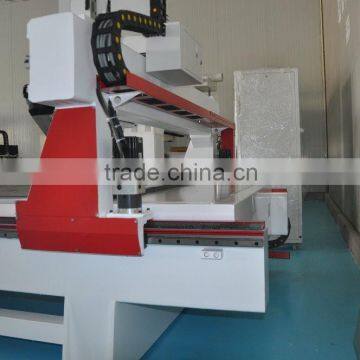

Help CenterFC-C48 CNC Router Wood Carving Router Machine
Related Products
-
FC-C48 High Speed CNC Wood Carving Router Machine for SaleUS$ 2,680 - 3,300MOQ: 1 Set -
FC-C48 CNC Router Wood Carving CNC TurningUS$ 2,680 - 3,300MOQ: 1 Set
-
Cylinder Craft Engraver FC-3520AY/4.5KW/ServoNegotiableMOQ: 1 Set
-
High Speed 4 Axis Cnc Router With Rotary Attachment FC-3520AYNegotiableMOQ: 1 Set
-
Unique Four-axis Cnc Router With Rotary Attachment FC-3520AY/NegotiableMOQ: 1 Set
Features of CNC Machine FC-C48 :
1. The whole machine uses high quality seamless welded steel structure,the assembly contact surfaces are used scraping process,the whole machine structure was taken high-temperature aging treatment, and upright, support plate,using aluminum cast process that ensures the high stability.

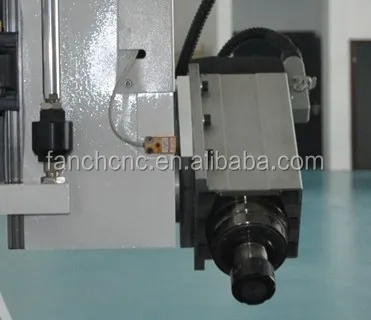

2. The machine adopts new design concept-pneumatic change, match with one 6.0kw air-cooling spindles, Spindle speed 6000~1800rpm per minute, suitable for long time processing for wood products.
3. Adopt ShenZhen SUFAR high performance inverter, high frequency electronic anti-jamming system.
4. Adopt big power motor drive system,high torque and precision,fast and stable performance.
5. Adopt advanced Shanghai original NC-studio control systems, good compatibility, can be compatible with Artcam, Type3, Coreldraw, Ucancam such as CAD, CAM design software, can control the completion of the multilayer surface 3D processing, can carry on the fast smooth three-dimensional processing, carving and cutting.
6. X, Z axes adopt original imported 20mm linear guide rail and Y axis adopts original imported 25mm square rail. High accuracy and precision tool position, fully guarantee machine’s high speed and accuracy.
7. Imported Taiwan TBI high precision screw rod is very precise when processing.
8. Patent design cavate vac-sorb table, minimum adsorb area: 150*150mm, Vac-sorb 6.0kw air-cooling oil free vacuum pump, subatomospheric pressure can reach 0.8Mpa
9. Equip with industrial aviation plugs links, connected directly, soft metal cable sheath, avoids the cable damage situation from the press & bump effectively.
10. cable adopts YC numerical control machine shielding line, can reciprocate eight million times.
Widely applied in industrial board cutting, mold manufacturing & processing, wooden products processing, building decorating & furnishing, stone, glass, copper, aluminum and advertising products processing,etc.
Model:SKD-3015ATC
CNC Wood Router
Model:FC-6090S
CNC Wood Router
Model:FC-6090S-2Z
CNC Wood Router
MORE...
Function / Configuration
Adjustable
A strong technical team,
Function and configuration
adjustable,in order to meet the
needs of customers in different
industries
Technology Software
Update
Regularly updated software
technology, to keep the machine working on high efficient.
Engineers
Overseas Service
Engineers available to service
machinery overseas.
or Video online service.
Factory
Workshop
A part of our Workshop
Expo
Every year Fairs in Dubai,Canton,Shanghai,Beijing,etc.
Team
Our Export Service Team
Packing & Shipping
Export standard package and container loading
Fanch--The Best CNC Machine Manufacturer
> Adopt the most advanced technology from Germany,Japan, Italy, France,USA,etc.
> Own factory with area 20,000 square meters located in Beijing China.
> Engineers available to service machinery overseas, or Video online service.
> Made in China with the European Quality and CE certificate, ISO9001 .
Q: Are you trading company or manufacturer ?
A: We are Manufacturer local in Beijing China.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock.
or it is 25-35 days if the goods are not in stock, it is according to quantity.
Q: Do you allowed us to visit your factory before place order ?
A: Yes, Welcome to visit our factory, it is our pleasure.
And also you can visit our expo in Shanhai,Guangzhou,Xiamen,etc.
Q: What is your terms of payment ?
A: Normal 30% T/T in advance ,balance before shippment. Negotiable terms according to quantity.
Q: How to learn more about the product ?
A: If you want to know more about the products, Please contact us as below:
Write down your questions and request,we will 100% reply you ontime.
