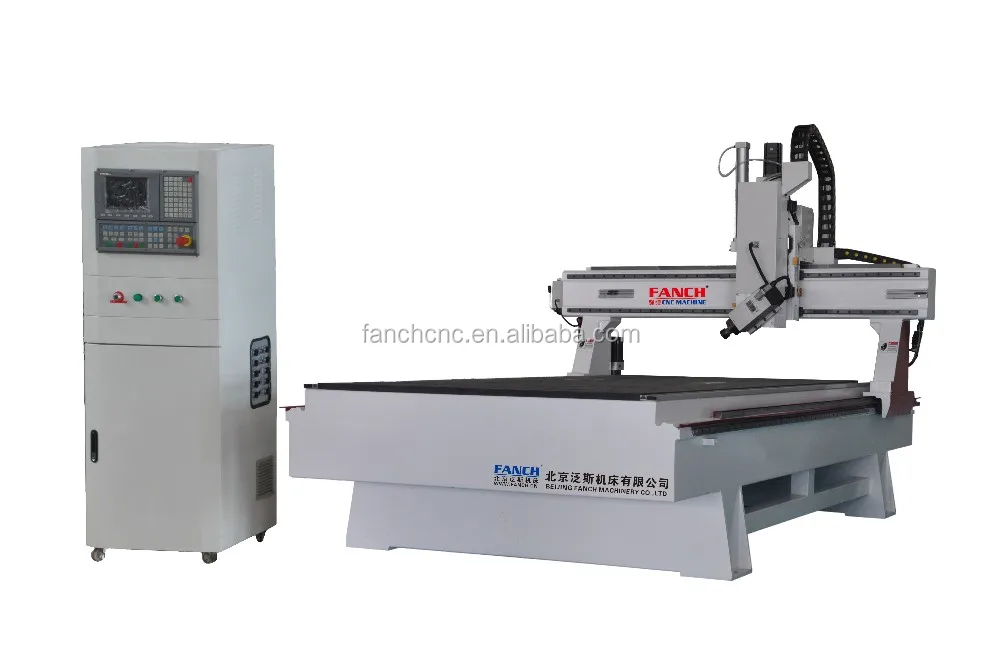

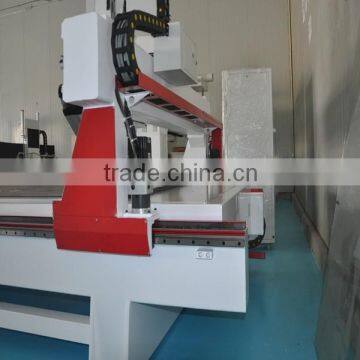

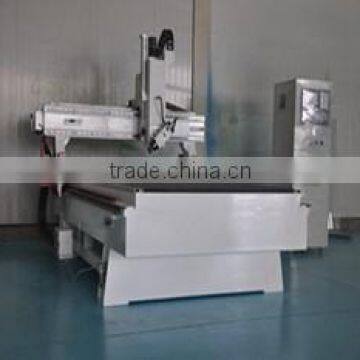

4 Axis U shape materials cnc machining center for chair rest and other curved materials.

Product Application

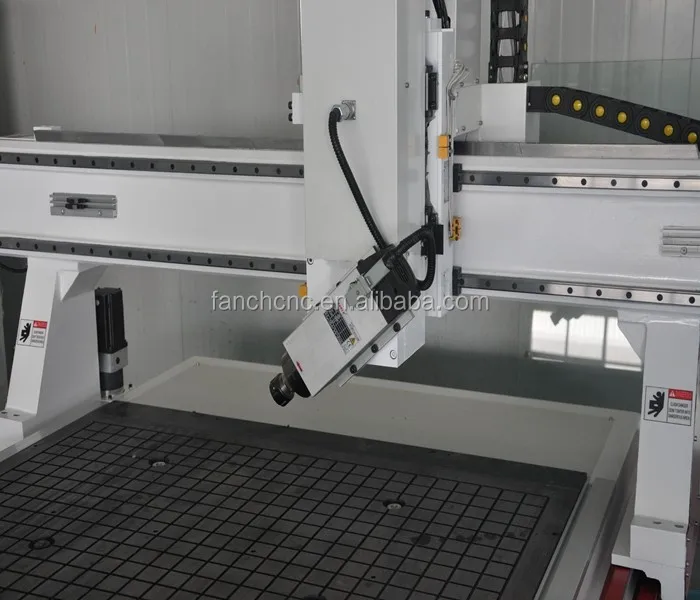

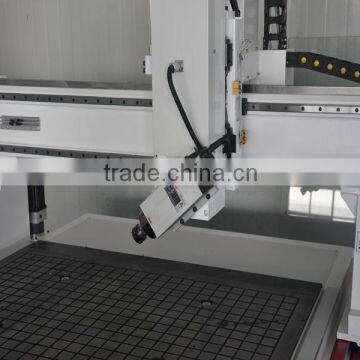

Fanch C48 Curve engraving woodworking machine is designed for waved, arc-shape wood surface. Italy original rotary spindle can rotate maximum 90 degree, with 4 axis linkage, it can finish almost any angle carving work.

C48 is recommended for curved furnitures, such curved chair, or waved decoration.

Main Features

Spindle

Name: Main Spindle

Brand: HSD

Original: Italy

Original Italy imported spindle 6.0KW, it promise more accurate, higher working efficiency. We can increase and reduce spindle numbers according to customer's need.

Motor

Name: Spindle motor
Brand: Yaskawa
Original: Japanese
It can provide strong power and long life span. Panasonic and Chinese top brand motor are optional.

Servo

Name: motor servo
Brand: Yaskawa
Original: Japanese
AV servo, under the power angle closed-loop control, the resistance capacity against load disturbance is improved and the problem of out-of-step is efficiently solved.

Helical rack

Name: Helical rack
Brand: Herion/Fengmao
Original: Germany/Taiwan
Brand famous rack can promise the accuracy of X.Y.Z Stroke repeat position, so that the more accurate of woodworking.

Control system

Name:  SYNTEC Control system
Brand: SYNTEC
Original: Taiwan

NC studio system is optional.

Inverter

Name: Delta inverter

Brand: Delta

Original: Taiwan

Top brand inverter ensure the stability of working process. SUNFAR inverter is optional.

Linear rail

Name: Linear rail

Brand: HIWIN/PMI

Original: Taiwan

Automatic lubrication rail, free maintenance.

Reducer

Name: Planetary reducer

Brand: Neugart

Original: Germany

Good quality reducer can help to improve the repeart poisition accuracy. Janpanese Shimpo and Taiwan APEX are optional.

Electric components

Name: Electric components

Brand: Schneider

Original: French

Taiwan AirTAC is optional.

How to make a FANCH?

● Everything is starting at making a sturdy machine bed. Using 12mm thickness steel slab, Fanch workers cutting it according to the designed size and seamless welding the structure.

● But that is not good enough to make the sturdy bed. The whole structure quenching at 600℃ is necessary to reduce the mutua repulsion between different steel structure parts.

● In order to get the light but firm gantry, Fanch apply one piece casting aluminum. Seamless make the gantry more stable during fast moving.

● ±0.05 mm deviation straightness of machine bed surface can be got by our Germany imported milling machine. This is the root base of working accuracy and long life service.

● Top brand spare parts further make sure the accuracy, stability and long life span of a Fanch machine.

Woodworking machine factory

Located in Tongzhou district, Beijing, Fanch woodworking factory was stablished in 2006. There are about 100 worker and technicians working in welding, milling and assembly departments.

Laser cutting machine factory

Located in National Innovation Industry Park in Tongzhou, Fanch laser machine assembly department, R&D office and domestic sales office can be found here.
