Product Application

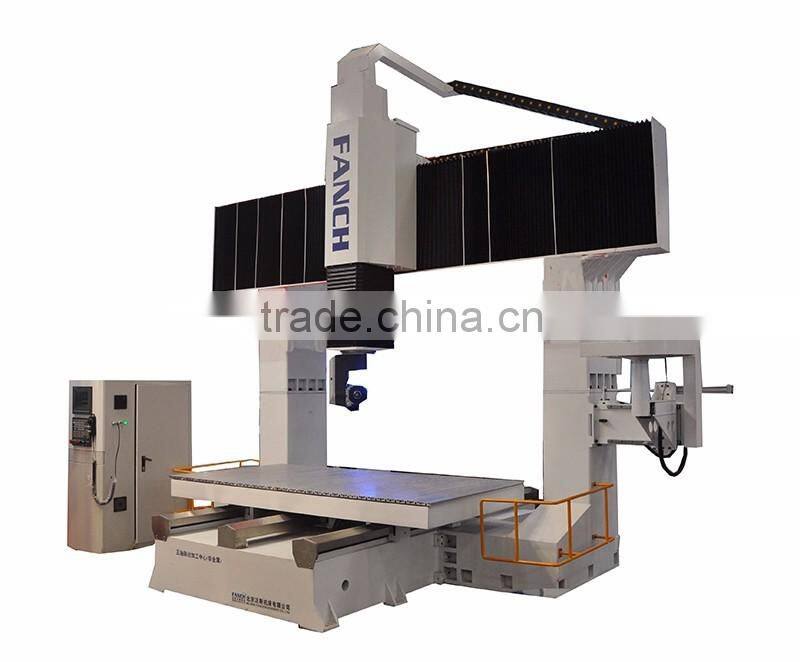

FC-5aix 48 is a heavy-duty five-axis machining centers, powerful, high-speed and precision. All components are used world-class brand.Five axis with five axis linkage, with RTCP function (real axis interpolation), suitable for three-dimensional model surface machining
Industries:
Mold Industry: casting, automotive, ceramic sanitary ware, ships, boats, aerospace industry, wind power generation, rail transportation, arts and crafts.
Three-dimensional pieces of processing industry: trimming fiberglass resin parts processing, and other pieces of three-dimensional solid carbide processing.
Teaching experiment industries, chairs and other needs of the three-dimensional processing of furniture and other products.
Wood, wood, styrofoam foam (EPS), resin, plaster, clay and non-metallic carbides mixed materials.
Main Features
1) 5 axis can provide more flexibility
2) Large size make processing larger statues possible
3) All components are used world-class brand.
4) Five axis with five axis linkage, with RTCP function (real axis interpolation), suitable for three-dimensional model surface machining
5) Humanized electric board design, easily for maintenance.
Spindle
Name: Main Spindle
Brand: HSD/HITECO
Original: Italy
Original Italy imported spindle 6.0KW, it promise more accurate, higher working efficiency. We can increase and reduce spindle numbers according to customer's need.
Motor
Name: Spindle motor
Brand: Yaskawa
Original: Japanese
It can provide strong power and long life span. Panasonic and Chinese top brand motor are optional.
Control system
Name: SYNTEC Control system
Brand: SYNTEC
Original: Taiwan
NC studio system is optional.
Inverter
Name: Delta inverter
Brand: Delta
Original: Taiwan
Top brand inverter ensure the stability of working process. SUNFAR inverter is optional.
Electric components
Name: Electric components
Brand: Schneider
Original: French
Taiwan AirTAC pneumatic components
Ball screw
Name: TBI ball crew
Brand: TBI
Original: Taiwan
Lubrication maintenance free
How to make a FANCH?
● Everything is starting at making a sturdy machine bed. Using 12mm thickness steel slab, Fanch workers cutting it according to the designed size and seamless welding the structure.
● But that is not good enough to make the sturdy bed. The whole structure quenching at 600℃ is necessary to reduce the mutul repulsion between different steel structure parts.
● In order to get the light but firm gantry, Fanch apply one piece casting aluminum. Seamless make the gantry more stable during fast moving.
● ±0.05 mm deviation straightness of machine bed surface can be got by our Germany imported milling machine. This is the root base of working accuracy and long life service.
● Top brand spare parts further make sure the accurancy, stability and long life span of a Fanch machine.
Woodworking machine factory
Located in Tongzhou district, Beijing, Fanch woodworking factory established in 2006. There are about 100 worker and technicians working in welding, milling and assembly departments.
Laser cutting machine factory
Located in National Innovation Industry Park in Tongzhou, Fanch laser machine assembly department, R&D office and domestic sales office can be found here.
Pre-sale service
1. Free engineer consultant and feedback in 24 hours.
2. Sample specimens and testing vedio of specified machine is available.
3. Factory visit arrangement.
After-sale service
1. Prompt reply in 24 hours.
2. Engineer on-site installation.
3. Call-in Remote diagnosis.
4. Engineer oversea service.
5. Operation training service.
Customized service
1. OEM/ODM service are available.
2. Free engineer consultant
3. Engineer on-site installation and debugging.
4. Operation training service
Sales manager: Miss Stacy.Luo Mobile:+86-18666578126 Skype：stacy-luo87
