Specifications

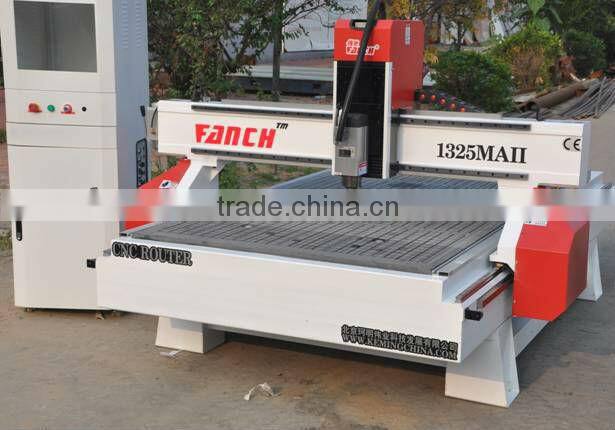

CNC Engraving MachineFC-1325MA
1.4.5Kw water-cooled spindle
2.Shanghai NC Studio control system
3.Step motor drive system
CNC Woodworking decorative industry Engraving Machine
FC-1325MA
Scope of application:
This machine is with muti-functions like engraving, cutting, milling, drilling, etc.It is widely use woodworking, decorative industry, foam processing industry and other molding industries.
Features of the machine:
1. Adopts 4.5 kw water-cooling spindle with very good performance , fit for long time producing in the processing line and easy maintain, fit for long time producing in the processing line and easy maintain.

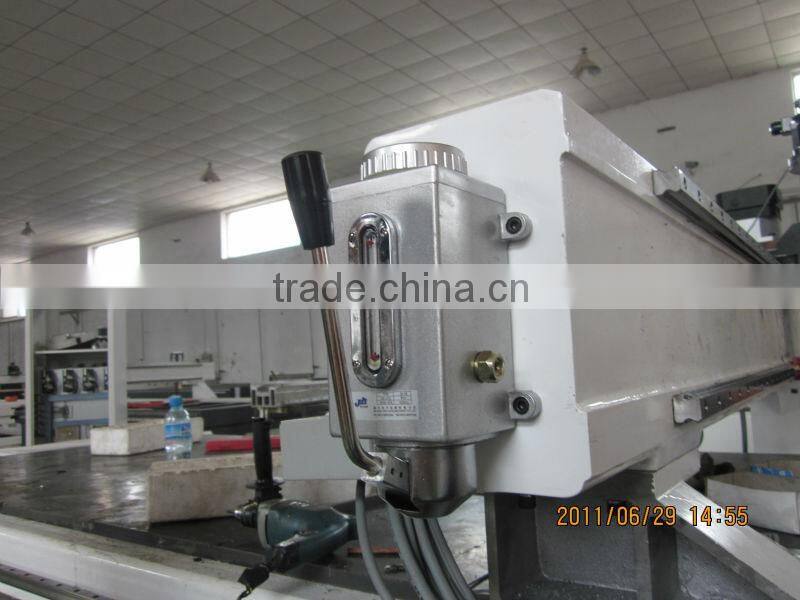

2. Atomic oil injection system for aluminum and another soft metal cutting and engraving.
3.High performance transducer, high frequency electronic anti-jamming system.

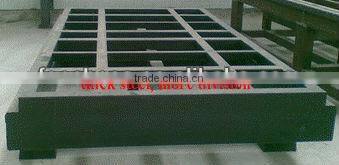

4.The whole lathe is thickening steel structure,scientific welded, upright and support plate, all using cast process that ensures the high stability.

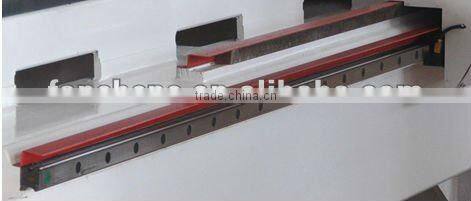

5.The gantry structure, Y axis uses dual-motor dual-driven system, X, Y axis all use 25 mm Taiwan dual-straight rail that make the machine driving smoothly with high-precision.

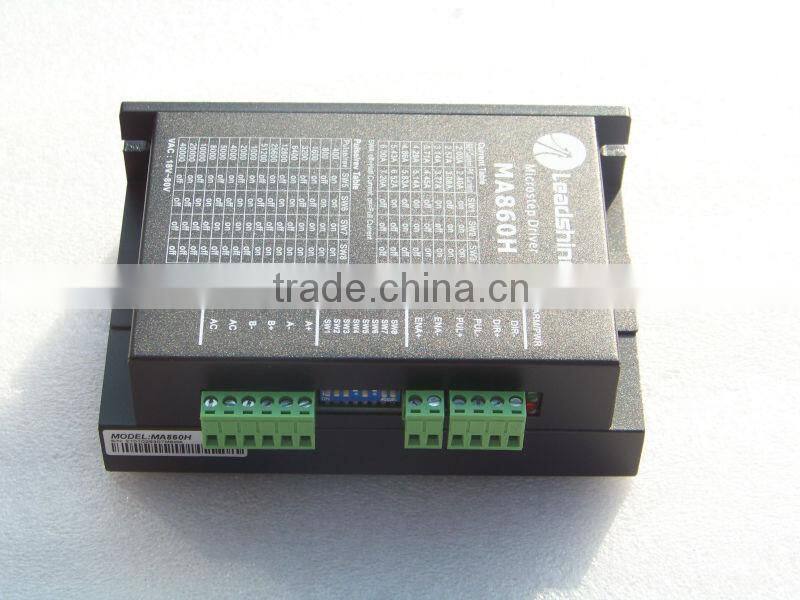

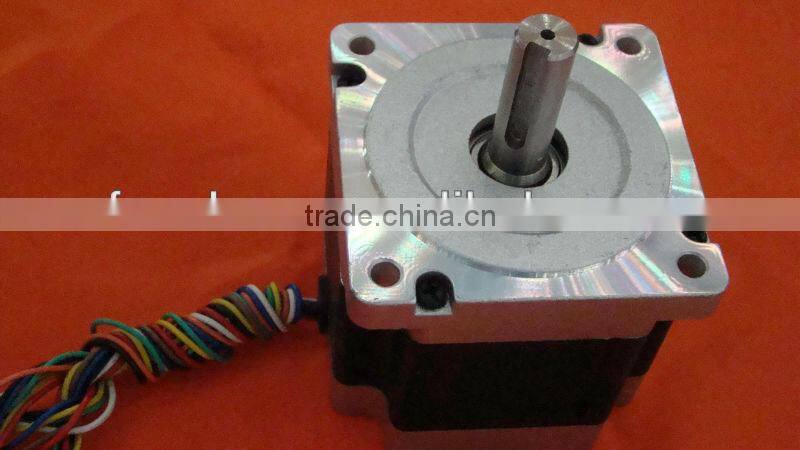

6.Big torque stepper motors and Leadshine 860H driver.

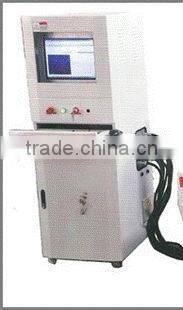

7.Use Ncstudio control system,good compatibility, compatible type3 /artcam /Castmate /artcut/CAD /CAM and other design software. Can control the completion of muti-dimensional 3Dprocessing, and can do fast, smooth, 3d processing, carving and cutting.
8.Patent design cavate vac-sorb table. There is support point under the vacuum table, made accordingto Italy BIESSE, avoid after long time adsorb, the middle central part sink, or the lateral part upwrap. The material of the vacuum table is chemsurf chemical-resistant laminate, high tenacity and non-deformed.

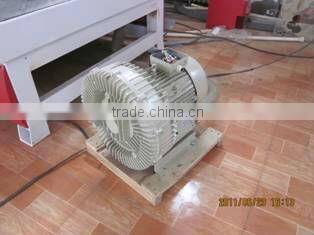

9..5.5kw air pump.
10.The Z axis adopts Taiwan TBI original coarse pitch precise rubbing screw rod,
Feed materials height is 200 mm.
11.Equipped with standard America industrial aviation plugs links, soft metal cable sheath.
12.The cable lines adopt imported high soft shielding machine cable reciprocating motion can reach 12 million times.
FC-1325MA Performance parameter:
Outer dimension |
1850*3000*1600mm |
X,Y axis travel |
1300*2500mm |
Z axis travel |
>200mm |
Table size |
1340*2500mm |
Max speed |
35m/min |
Max feed-in height |
200mm |
Command language |
G code, u00 , mmg , plt |
Software operating environment |
Windows98/2000/xp |
Power (not include spindle) |
2kw |
Work voltage |
380v/50Hz |
Spindle power |
4.5 kw |
Spindle rotating speed |
6000-24000rpm |
Work mode |
Stepper (rack transmission) |
Control system |
Ncstudio controller |
Standard software |
ARTCUT (wentai) V9 |
