Specifications

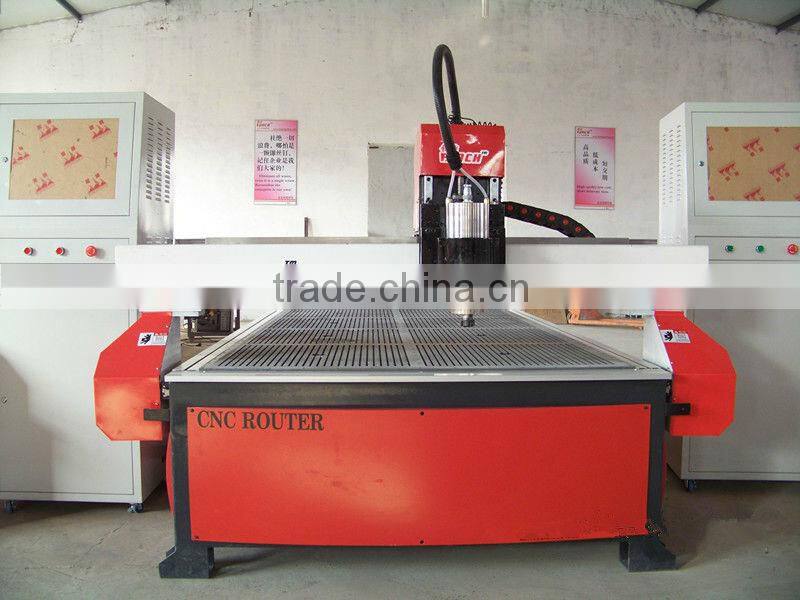

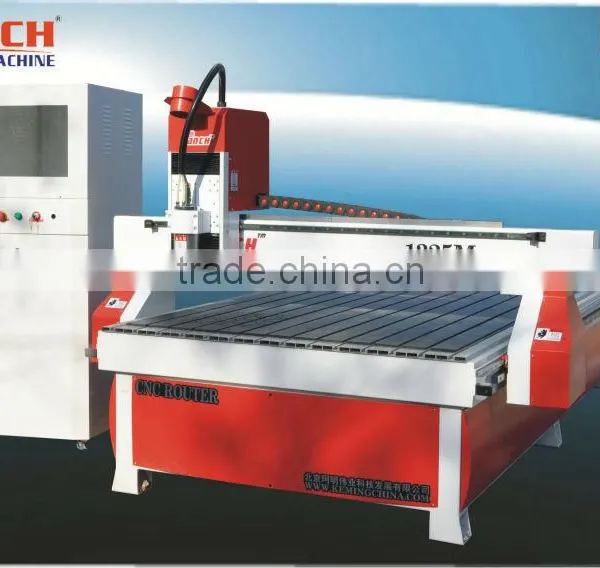

cnc wood/advertising engraving cutting machine with vaccum tableFC-1325M
1.NCStudio Controller
2.Step
3.1.5kw water cooled
cnc wood/advertising engraving cutting machine with vaccum table
FC-1325M
Scope of application:
Widely used in furniture processing, upholstery, decorative woodwork, doors, woody handicrafts and metal product, stone product, decorative lighting and glass, etc.
Features of machine:
1. The lathe is founded by high-quality steel and upright, support plate, using aluminum cast process that ensures the high stability.
2. Driving rail adopts original Taiwan imported 25mm square lead rail.
3. Z axis adopts Taiwan TBI original coarse pitch precise rubbing screw rod, high precision transmission
4. Imported high performance transducer, high frequency electronic anti-jamming system.
5.Y axis uses double-motor in-phase drive that ensure the machine equality and smoothly running.
6. Using high accurate pinion and rack transmission. The highest speed is 20m/min. It can clearly engrave the 1mm small word.
7.Spindle adopts 2.2KW water-cooling motor made in china, which is very powerful and with little noise .It can work continusly without maintaining.
8.Intelligent protection for working table that can prevent misuse or software errors from damaging the surface. Its protection of step beyond the boundary avoids crashing while design area beyond processing area.

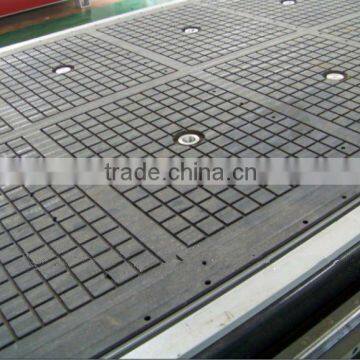

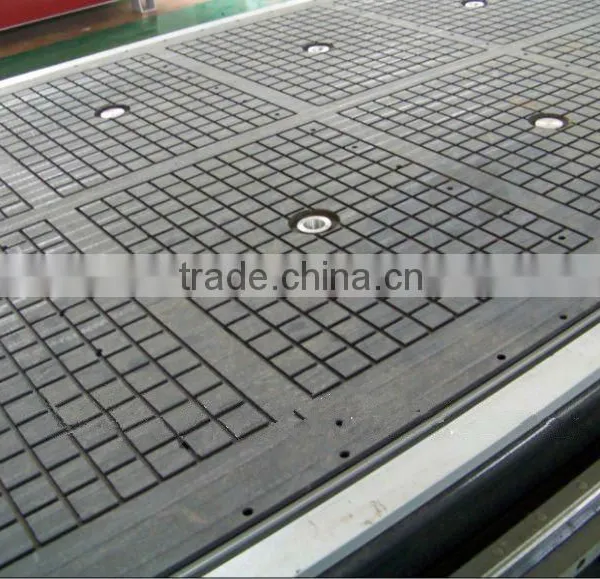

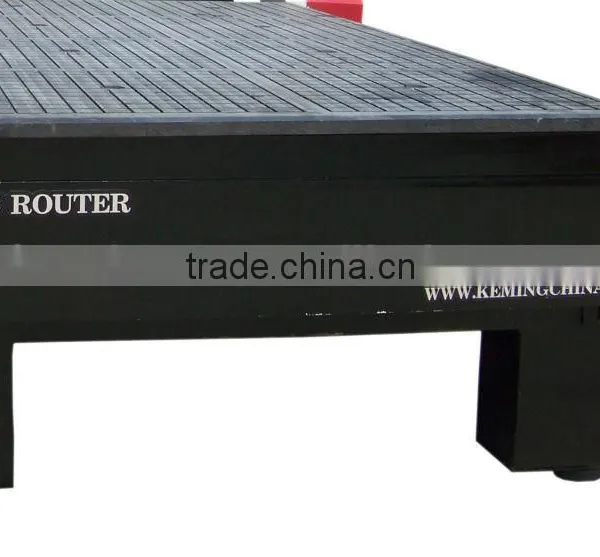

9.Patent design cavate vac-sorb table, minimum adsorb area: 150*150mm, can absorb & clamp.
10.Vac-sorb 4.0kw air-cooling oil free vacuum pump.
11.Equip with standard America industrial aviation plugs links, soft metal cable sheath, avoids the cable damage situation from the press & bump effectively.
12.Cable adopts YC numerical control machine shielding line, can reciprocate eight million times.
13.Advanced industrial controlling system is compatible to many dictate formats that can operate after accident or next day processing so it is very convenient.
FC-1325M performance Parameter:
Outer dimension |
1900*3100*1600mm |
Table size |
1440*3040mm |
Work travel |
1300*2500mm |
Resolution |
0.025mm |
Spindle power |
3KW/4.5KW(for chosen) |
Work voltage |
380V/50HZ |
Operation speed |
25m/min |
Spindle rotating speed |
6000-24000rpm/min |
Cutter diameter |
¢6,¢12.7 |
Command language |
G code,u00,mmg,plt |
Vacuum power |
4.0KW |
