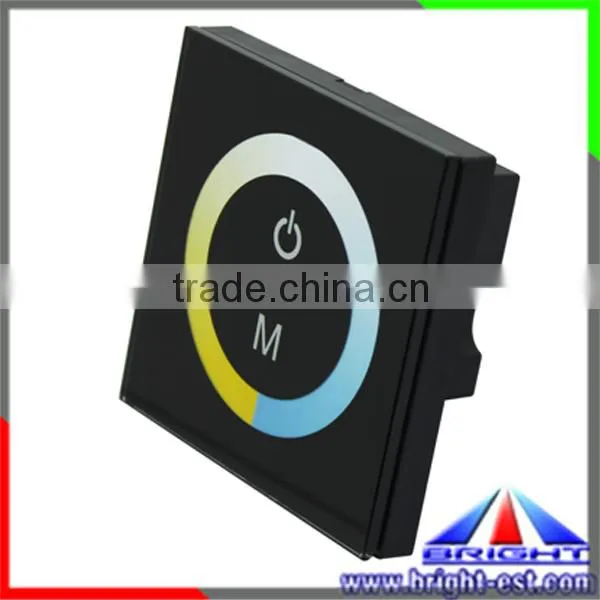

Touch Panel Color Temperature Controller,Intelligent Temperature Controller,Touch Panel LED Controller
Product Description
This Touch panel Color-temperature controller is a new high-end controller newly designed by our factory.The glass panel design, makes the appearance more beautiful and fashionable. It adopts high precision capacitance touch control chip, increases the touch sensitivity,and can reduces trigger which caused by mistake.It is used for controlling a variety of lamp whose source of light is LED.For instance,point source of light,flexible light strip,wall washer lamp,glass curtain wall light etc., it has many advantages such as convenient to connect, easy to use ,etc.It can realize cold,white warm white,pure white light Color-temperature and other effects of lighting change.
Technical Parameters
1. working temperature: -20-60 degree
2. supply voltage:DC12-24
3.output:2 channels
4. connection mode: common anode

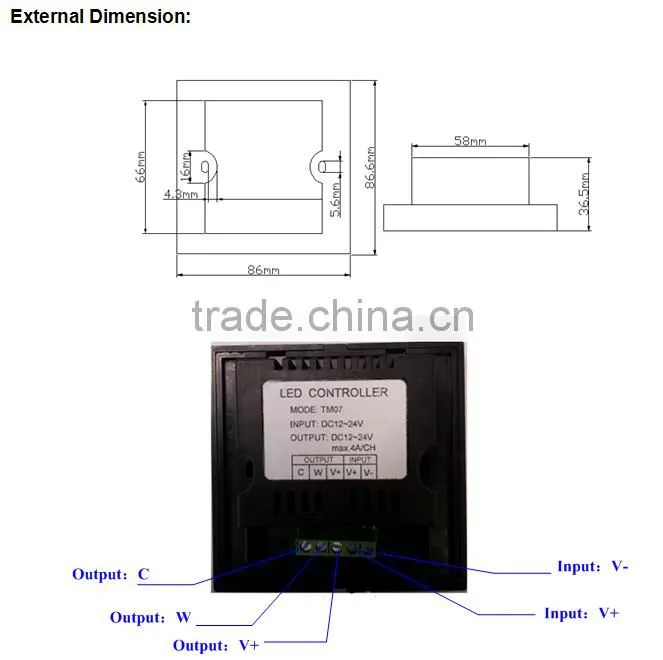

5.external dimension: L86 Χ W86Χ H36mm
6.packing size: L115 Χ W110 Χ H56 mm
weight: 130g
8.gross weight: 187g
9. static power consumption: <1W
10. output current: <4A( each channel )
11.output power: 12V<96W,24V<192W
Product Pictures
Other Controllers Pictures
1.Packaging :Neutral Package or according to customers' request
2.Delivery Time: 5-7days
