1530 Woodworking Multi Spindles Drilling-Grooving-Cutting CNC Machine

Product Application

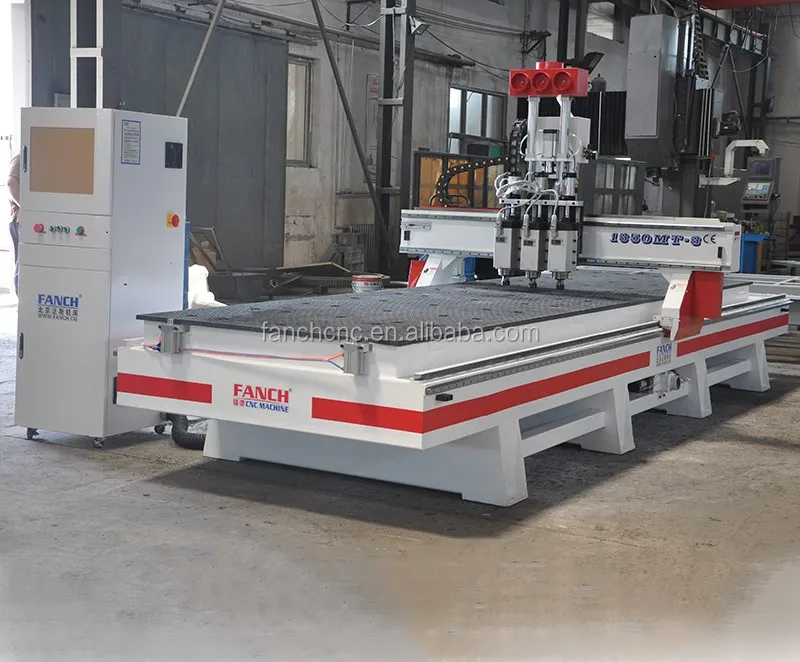

FC- 1350MT-3 is the double station cnc router with 3 spindles for cutting. It can provide drilling, grooving, cutting, milling functions.

Folllowing materials are available:

Acrylics: acrylics, backlight module faceplate, liquid crystal diffuser plate, etc.

Thermoplastic elastomers: rubber, plastic, resin, foam products, etc.

Engineer plastics: PVC, ABS, PF, PE, PU etc.

Compound materials: FRP, artificial stone, compact board, graphite, laminates, etc.

Wood material: solid wood, wood based panel, etc.

Light metal material: aluminum extruded, copper, aluminium profile.

Industries:

1. Furniture industry：

All kinds of board type furniture, wooden doors, cabinets, solid wood furniture cutting and engraving,

2. Advertising industry：

Craft gifts, crystal ornaments, advertisement sign, mini word engraving cutting, etc;

3. Decoration Industry：

Acrylic, PVC, density board, plastic, aluminum and copper, etc of soft sheet metal ornamental milling cutting processing

4. Plate processing：

Insulation, plastic chemical parts; PCB, High-speed train body panel, bowling track; Compact plate, epoxy resin, ABS, PP, PE and other carbide mixture

Main Features

1) 1.2mm thickness steel seamless welded and quenched lathe can provide better stability for operation
2) Adopting advanced world famous brand components in electric parts and operation parts.

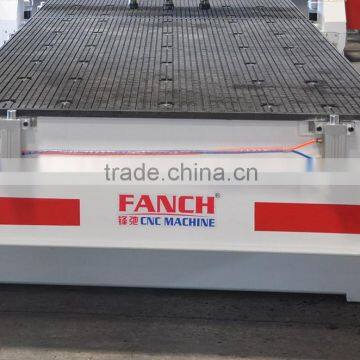

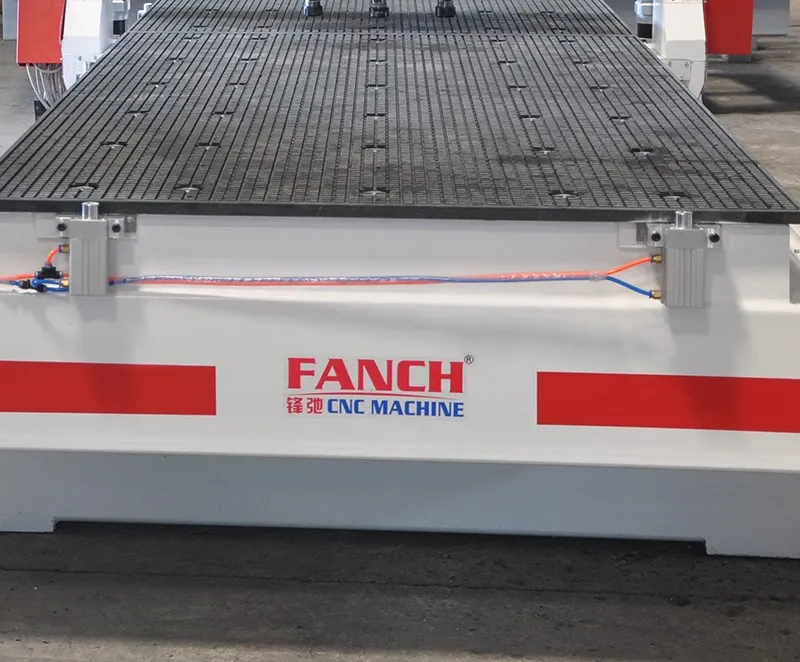

3) Cavity vacuum suction table, there is no exposed pine, highly increase the adsorption capacity.
4) Gantry structure parts is made by one piece cast aluminum, sturdier and lighter in moving.
5) Humanized electric board design, easily for maintenance.

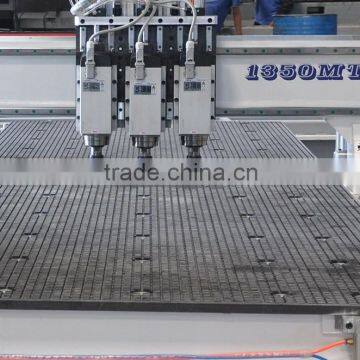

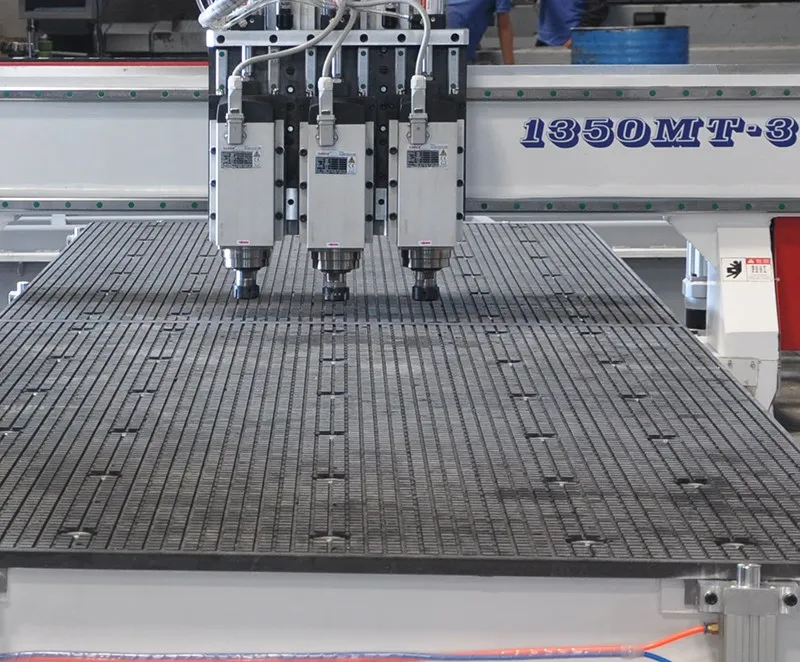

Spindle

Name: Main Spindle

Brand: HSD/HITECO

Original: Italy

Original Italy imported spindle 6.0KW, it promise more accurate, higher working efficiency. We can increase and reduce spindle numbers according to customer's need.

Motor

Name: Spindle motor
Brand: Yaskawa
Original: Japanese
It can provide strong power and long life span. Panasonic and Chinese top brand motor are optional.

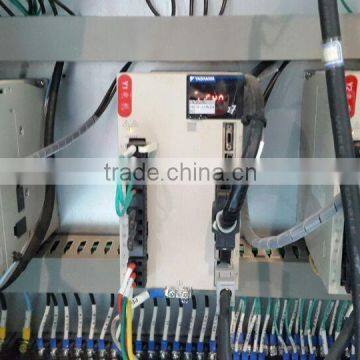

Servo

Name: motor servo
Brand: Yaskawa
Original: Japanese
AV servo, under the power angle closed-loop control, the resistance capacity against load disturbance is improved and the problem of out-of-step is efficiently solved.

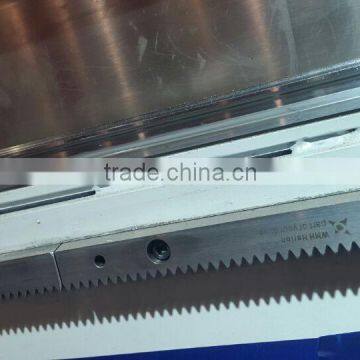

Helical rack

Name: Helical rack
Brand: Herion/Fengmao
Original: Germany/Taiwan
Brand famous rack can promise the accuracy of X.Y.Z Stroke repeat position, so that the more accurate of woodworking.

Control system

Name:  SYNTEC Control system
Brand: SYNTEC
Original: Taiwan

NC studio system is optional.

Inverter

Name: Delta inverter

Brand: Delta

Original: Taiwan

Top brand inverter ensure the stability of working process. SUNFAR inverter is optional.

Linear rail

Name: Linear rail

Brand: HIWIN/PMI

Original: Taiwan

Automatic lubrication rail, free maintenance.

Reducer

Name: Planetary reducer

Brand: Neugart

Original: Germany

Good quality reducer can help to improve the repeart poisition accuracy. Janpanese Shimpo and Taiwan APEX are optional.

Electric components

Name: Electric components

Brand: Schneider

Original: French

Taiwan AirTAC pneumatic components

How to make a FANCH?

● Everything is starting at making a sturdy machine bed. Using 12mm thickness steel slab, Fanch workers cutting it according to the designed size and seamless welding the structure.

● But that is not good enough to make the sturdy bed. The whole structure quenching at 600℃ is necessary to reduce the mutul repulsion between different steel structure parts.

● In order to get the light but firm gantry, Fanch apply one piece casting aluminum. Seamless make the gantry more stable during fast moving.

● ±0.05 mm deviation straightness of machine bed surface can be got by our Germany imported milling machine. This is the root base of working accuracy and long life service.

● Top brand spare parts further make sure the accurancy, stability and long life span of a Fanch machine.

Woodworking machine factory

Located in Tongzhou district, Beijing, Fanch woodworking factory established in 2006. There are about 100 worker and technicians working in welding, milling and assembly departments.

Laser cutting machine factory

Located in National Innovation Industry Park in Tongzhou, Fanch laser machine assembly department, R&D office and domestic sales office can be found here.
