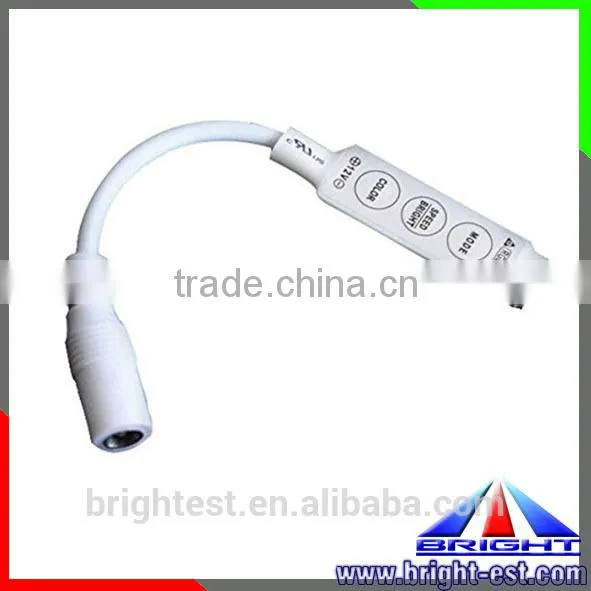

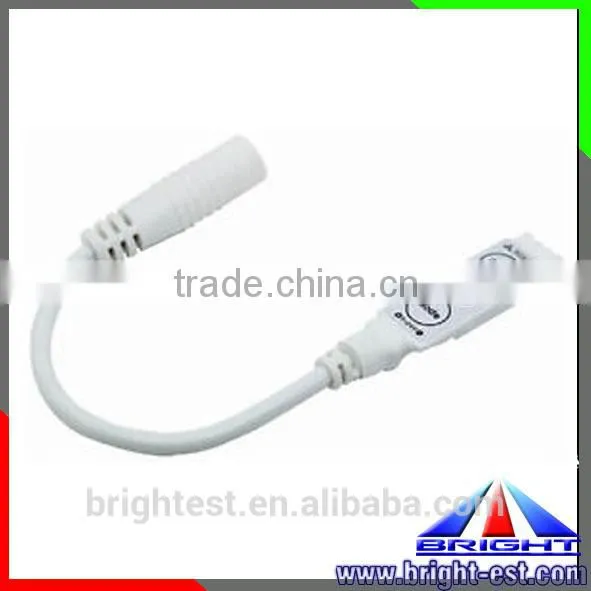

SP002E 3key rgb mart Mini led pixel controller for DC12V WS2811 Dream Color LED Strip Light, max 2048pixels, DC5v-24V input
Electrical Specification:
Working Voltage |
DC5V~24V |
Peak Output Power |
72W@12V, 144W@24V (50% duty cycle) |
Peak Output Curren |
12A (50% duty cycle)3 way,4A per channel |
| Remote controll | RF wireless card type remote controller |
| Remote Controll Frequency | 433.92MHz |
Remote Controll Battery |
CR2025 3V cell battery |
Remote Standby Current |
<1uA |
| Remote Distance | >15 meters at open area |
|
Remote Controller matching mode |
1 to 1 match for remote controller & main unit. |
PWM control level |
256-level |
Wrong Polarity Protection |
Yes |
Working Temprature |
-30~70 |
Components & PCB |
SMD parts / Double side FR-4 pcb |
Environmental Standards |
Rohs compliant |
Functions:
Dynamic Mode |
19 modes |
| Static Color | 20 color |
| Speed Level | 10 levels |
| Brightness level | 5 levels |
On/Off Operation |
Yes |
Auto Recall Function |
Yes |
Power & LED Connector
Power Connector |
White cable |
LED Connector |
White cable |

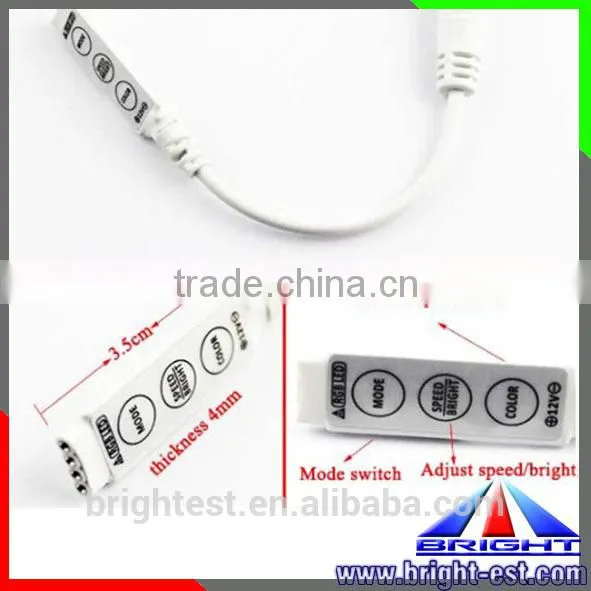

Dimension & Weight
Body Size |
33x12x5mm |
Cable Length |
136mm |
Net Weight |
controller 8.5g + remote controller 19.8g, total 29.9g |
Features:
1. Auto adaptation of 5-24V DC working voltage and with input polarity protection function
2. The newest PWM control technology, delicate light performance, no flicker
3. High power dimmer control MOS tube with stable and reliable performance
4. 8-15 meters IR remote control distance
5. Multi-level, multi-color, multi-change flexible control effects
6. Multi-type memory functions for color, modes, speed, and brightness
7. Smart appearance, standard input and output port, easy installation and high cost performance.
