5630 linear light bar,Samsung linear light bar
LED Aluminum bar , widely used in jewelry, star hotel, high-end clubs, museum, professional windows, counters and other key lighting place, it is an alternative replacement to traditional old halogen and other light.
superiority:
1.High brightness, adopt high brightness SMD5630 as light sources
2.Well Radiates, PCB board and Out shell, all made with Aluminum materials, low heat and easy output
3. Low power and less light decay: energy saving can reach into 90% for you
4. Without any radiation, non-UV / Infrared, and heat radiation, environmental friendly
5. Outer covering with aluminum alloy, and surface anodizing,very unique design with high level
6. Install easy, the unique structural desing, easy installation, all person not professional do well
5630 led bar specifications
5630 led bar feature
1.Item No.: BG-1707-5630-60 linear light bar
2.LED type: High brightness SMD5630
3.Color available: White, Warm white, Cold white
4.Color temperature: White : 6000~6500K, Warm white:2900~3200K, Cold white: >8000K
5.Viewing Angle: ≥120° linear light bar
6.Product size: 1000*14*7mm
7.LED quantity: 60leds linear light bar
8.Luminous Flux: 35~40lm/led, 2050-2300Lm per meter!
9.Voltage /Power: 12VDC , Max 30W/m
10.Waterproof : IP65 linear light bar
11.Working temperature:- 35°C~+60°C
12.Storing temperature: -40°C~ +70°C

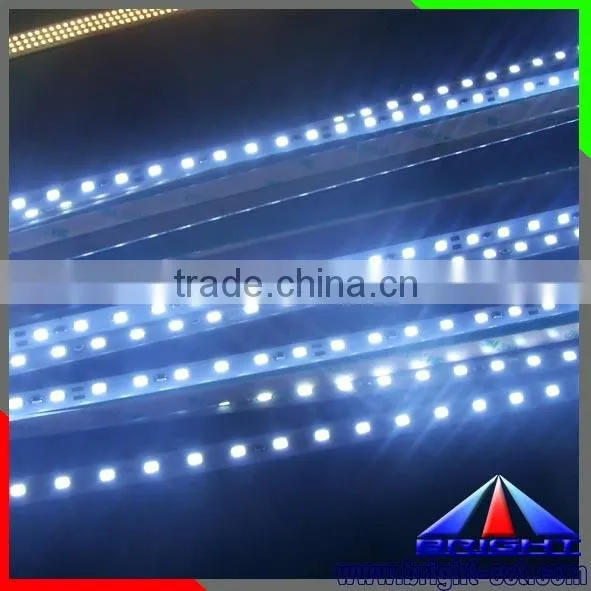

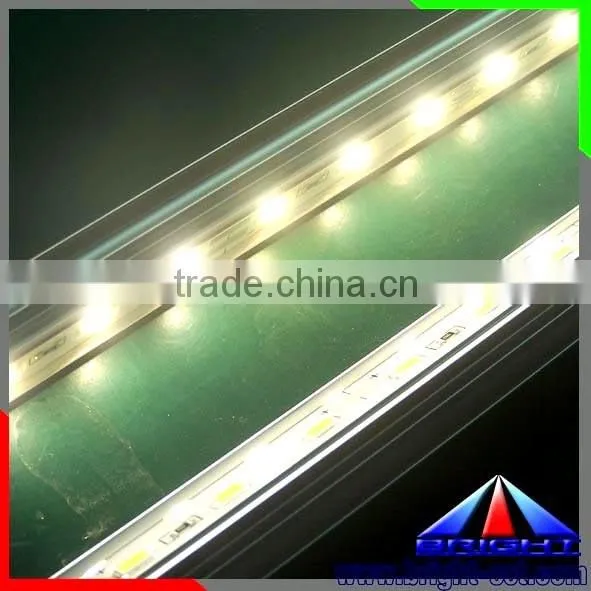

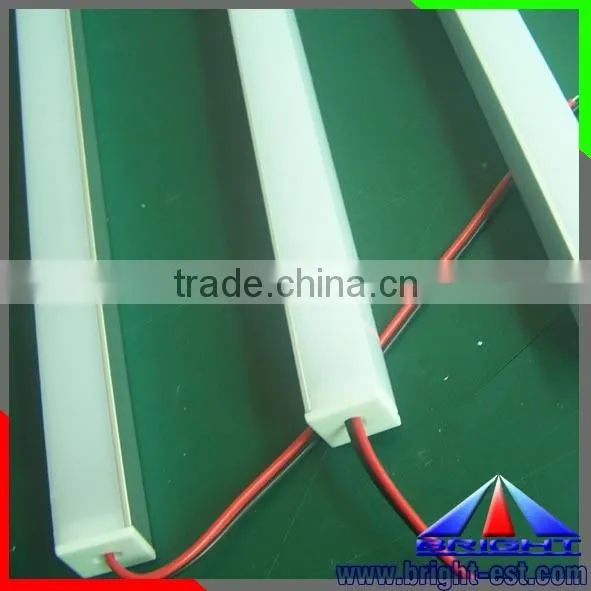

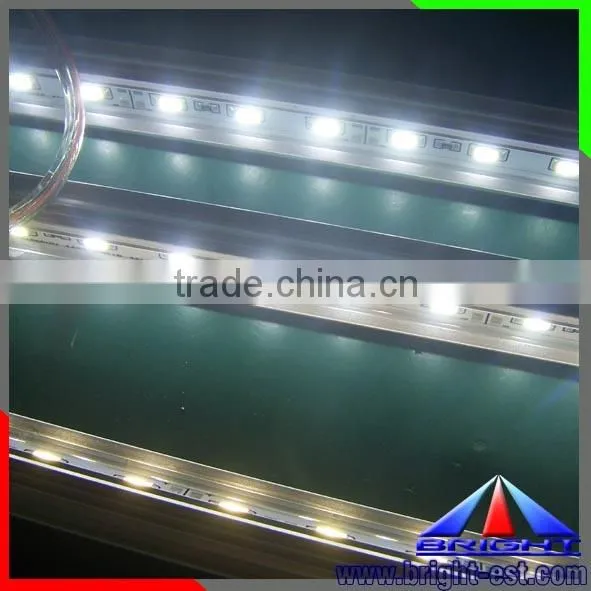

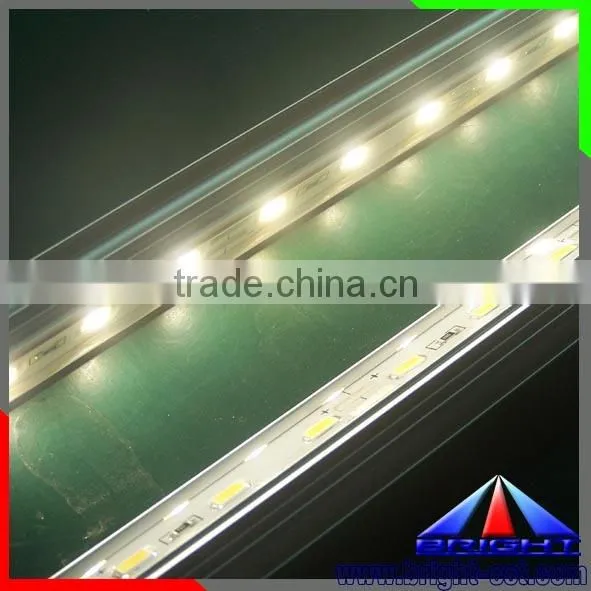

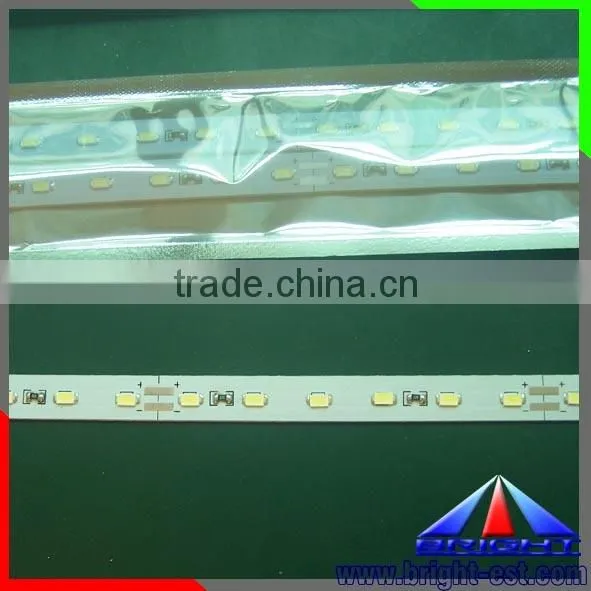

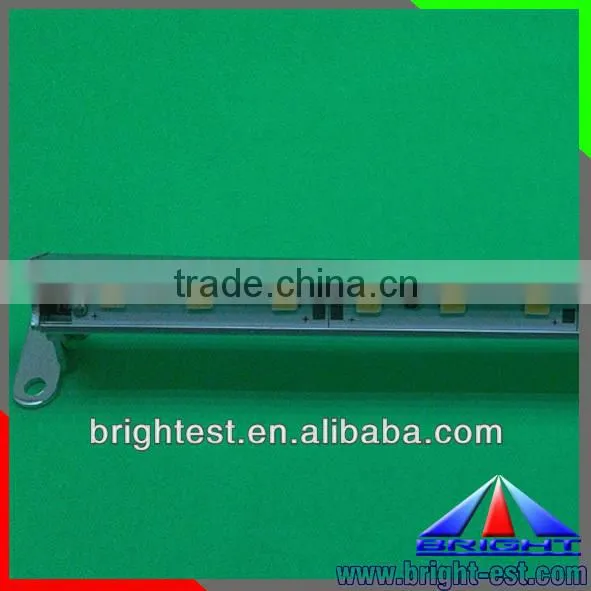

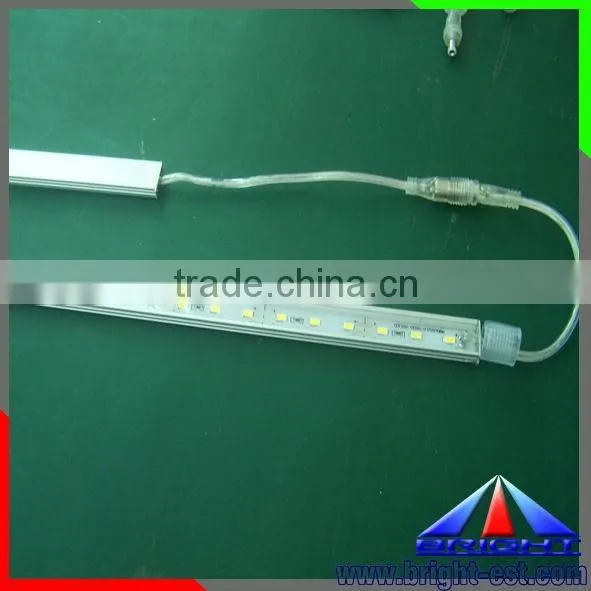

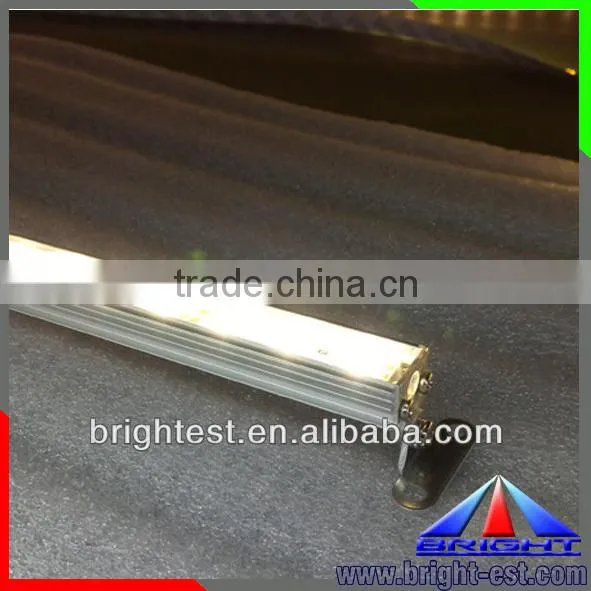

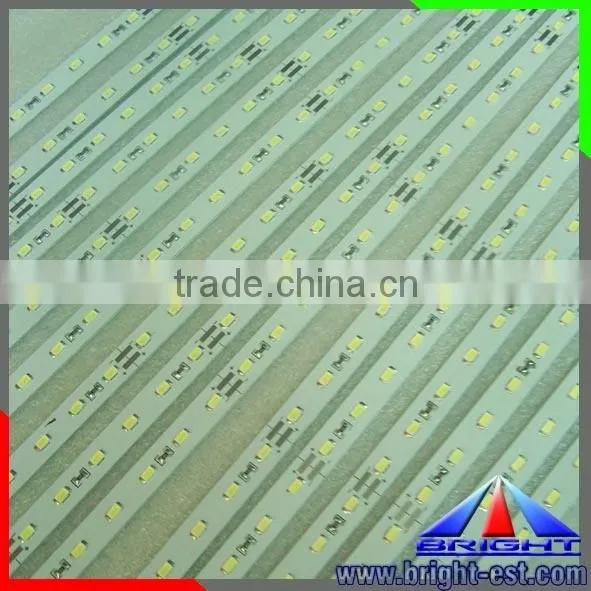

5630 led bar picture:
Application places
Our company:
5630 led bar matters needing attention:
1. Supply voltage of this product is 12v; never connect to other high voltage.
2. Never connect two wires directly in case of short circuit.
3.Lead wire should be connected correctly according to colors that connecting diagram offers.
5630 rigid led bar express Delivery
Any questions, please don't hesitate to contact me, you're always welcome! Sophie-Tuo
