US$ 1 - 5.5 MOQ: 1 Meter
Key Specifications
Get Latest Price
LED Light Source:
5050 led
Type:
LED Bar Lights
Input Voltage(V):
12v/24v
Contact Supplier Request Quote Chat Now
Shenzhen Bright Technology Industrial Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
ShenZhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source 5050 led
Type LED Bar Lights
Input Voltage(V) 12v/24v
Lamp Power 14.4W
Lamp Luminous Flux(lm) 950-1000
Color Temperature(CCT) white/R,G,B
Working Temperature(℃) -40, 60
Working Lifetime(Hour) 50000
Lamp Body Material Aluminum
Certification CE
Emitting Color Other, White, Single color /RGB
Place of Origin Guangdong, China
Brand Name bright led light bar
Model Number BG-1704A-5050-60 led light bar

BG-1704A-5050-60 led light bar,led bar light 12v

led light bar features:

1.Work voltage DC12V/24V led light bar

2.Working current ( one meter): 400mA/600mA

3.Standard length: 5meters/reel.

4.PCB Width:10mm,12mm

5.Rigid strip, cuttable every 3/6leds.

6.Available Color: White, Warm White, Red, Green, Blue, Yellow.

7.Yellow PCB or White PCB are available.

8.SMD3528LEDs, 48LEDs/meter, 60LEDs/meter, 72LEDs/meter are available.

9.SMD5050LEDs, 60LEDs, 72LEDs are available.

10.Sign chip or 3 chips LEDs are available.

11.Beam Angle: 120 degree led light bar .

12.Light decay: Less than 5% after 1000 hours constant work.

13. Protect range: non-waterproof or waterproof IP65.

14.Can be waterproof with silicon cover.

15.Can be waterproof with nanomaterials coating.

16. Life Span: 50,000-80,000 hours.

17.3M Tape attached, easy installation, Maintenance free.

Specifications of led bar light

Product NO.

LED TYPE

LED Qty.

Voltage

Current

Luminous Flux(lm)

Power

Color

PCB Material

IP Grade

View

 Angle

Size:mm

BG-1701-3528-60

SMD3528

60Pcs/m

12V DC

0.4 A

300-350

9.6 W

Single color

FR-4

No

120°

1000*8*4

BG-1702-3528-60

SMD3528

60Pcs/m

12V DC

0.8 A

290-335

9.6 W

Single color

FR-4

No

120°

1000*10*7

BG-1702A-3528-60

SMD3528

60Pcs/m

12V DC

0.8 A

275-325

9.6 W

Single color

FR-4

IP65

120°

1000*10*7

BG-1703-5050-60

SMD5050

60Pcs/m

12V DC

1.2 A

840-870

14.4W

Single color /RGB

FR-4

No

120°

1000*12*4

BG-1704-5050-60

SMD5050

60Pcs/m

12V DC

1.2 A

830-860

14.4W

Single color /RGB

FR-4

No

120°

1000*12*7

BG-1704A-5050-60

SMD5050

60Pcs/m

12V DC

1.2 A

810-840

14.4W

Single color /RGB

FR-4

IP65

120°

1000*12*7

BG-1705-5050-72

SMD5050

72Pcs/m

12V DC

1.45 A

970-980

17.5W

Single color /RGB

MCPCB

No

120°

1000*8*4

BG-1706-5050-72

SMD5050

72Pcs/m

12V DC

1.45 A

930-950

17.5W

Single color /RGB

MCPCB

No

120°

1000*12*20

BG-1706A-5050-72

SMD5050

72Pcs/m

12V DC

1.45 A

910-940

17.5W

Single color /RGB

MCPCB

IP65

120°

1000*12*20

APPLICATIONS

Jewelry counter lighting

Indoor decorative lighting and backlighting

Emergency hallway lighting

Auditorium walkway lighting

Indoor/outdoor illuminated signs and advertisements

Backlighting for larger size ad-signs

Elegant interior decoration

Nice accent lighting lamps

Landscape outlines, etc.

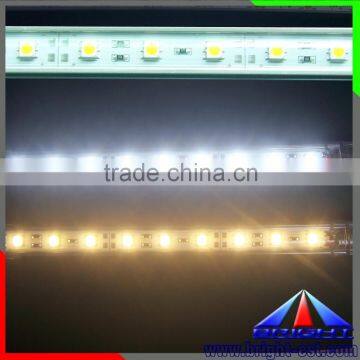

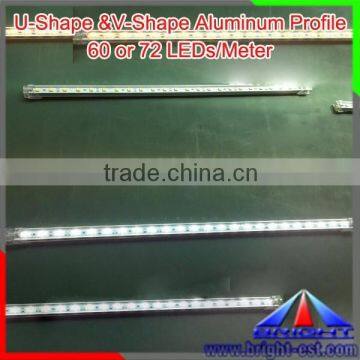

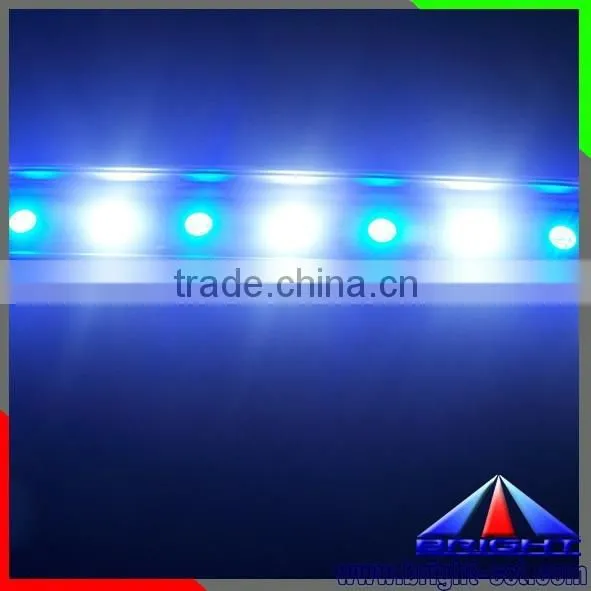

led light bar picture:

BG-1704A-5050-60 led light bar,led bar light 12v



BG-1704A-5050-60 led light bar,led bar light 12v



BG-1704A-5050-60 led light bar,led bar light 12v



BG-1704A-5050-60 led light bar,led bar light 12v



BG-1704A-5050-60 led light bar,led bar light 12v



BG-1704A-5050-60 led light bar,led bar light 12v



BG-1704A-5050-60 led light bar,led bar light 12v



BG-1704A-5050-60 led light bar,led bar light 12v

BG-1704A-5050-60 led light bar,led bar light 12v

Certificate

BG-1704A-5050-60 led light bar,led bar light 12v



BG-1704A-5050-60 led light bar,led bar light 12v

Our company

BG-1704A-5050-60 led light bar,led bar light 12v

matters needing attention :

1. Supply voltage of this product is 12v; never connect to other high voltage.

2. Never connect two wires directly in case of short circuit.

3.Lead wire should be connected correctly according to colors that connecting diagram offers.
