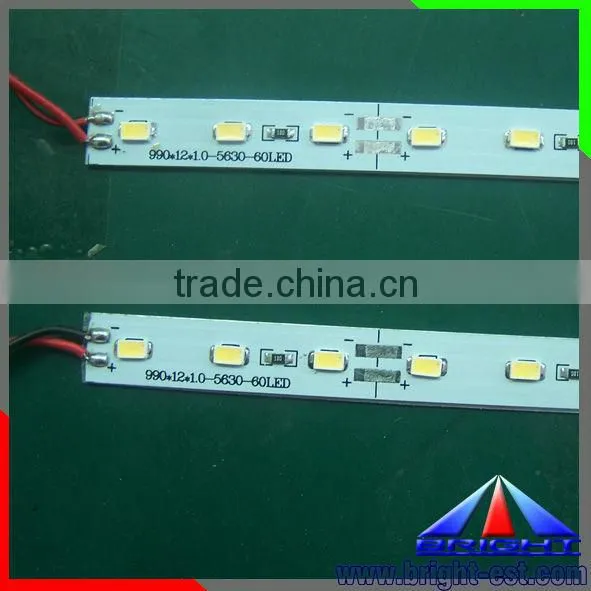

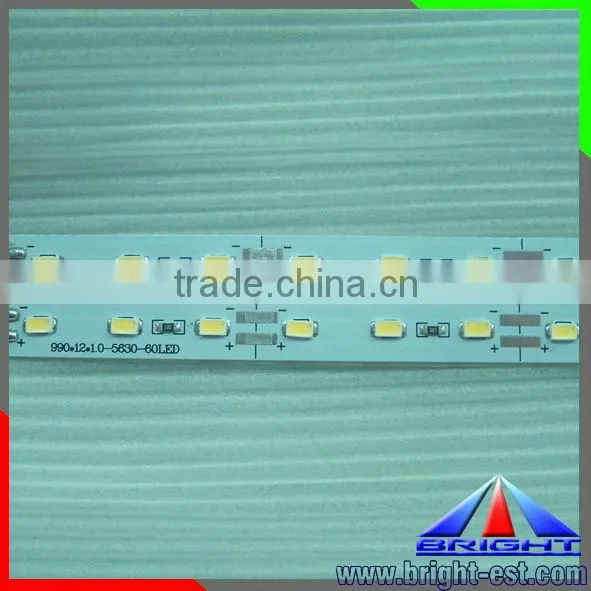

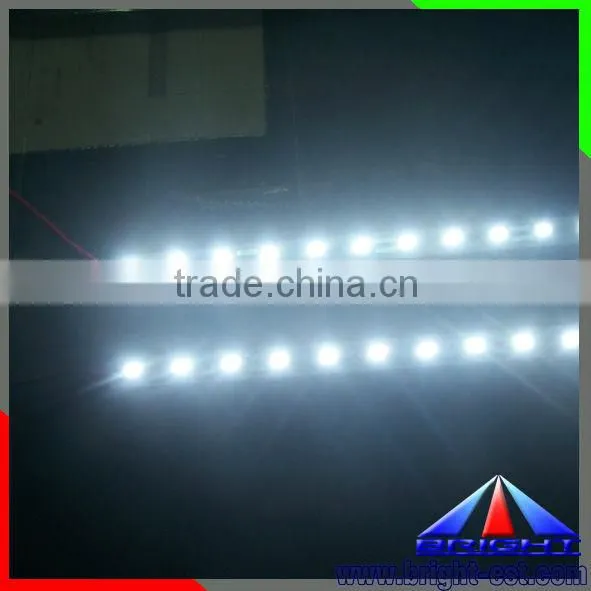

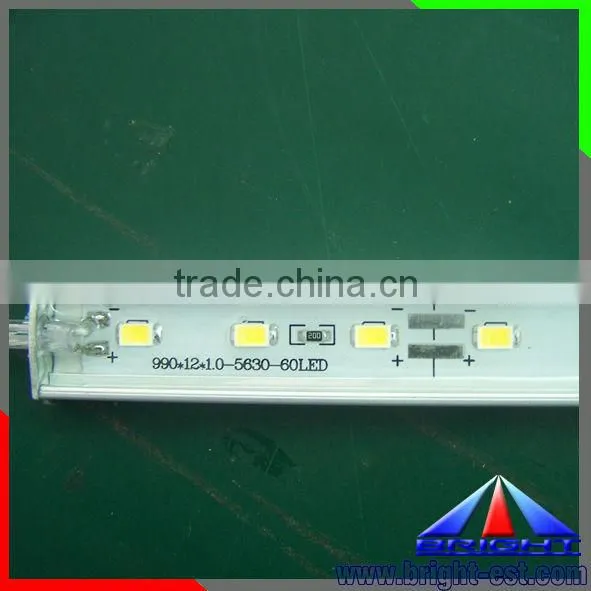

SMD5630 LED Bar Light,smd Led Bar Light 5630,light 5630 Bar

SMD5630 LED Bar Light,smd Led Bar Light 5630,light 5630 Bar thumbnail-1
SMD5630 LED Bar Light,smd Led Bar Light 5630,light 5630 Bar photo-1
US$ 1 - 7 MOQ: 1 Meter
Key Specifications
Get Latest Price
LED Light Source:
LED SMD5630
Type:
LED Bar Lights
Input Voltage(V):
DC12V/24V
Contact Supplier Request Quote Chat Now
Shenzhen Bright Technology Industrial Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
ShenZhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source LED SMD5630
Type LED Bar Lights
Input Voltage(V) DC12V/24V
Lamp Power 24W/m
Lamp Luminous Flux(lm) 2400
Color Temperature(CCT) 2700-7500K
Working Temperature(℃) -20, +60
Working Lifetime(Hour) 50000
Lamp Body Material Aluminum Alloy
Certification CE, CE
Emitting Color Other, White,Warm White,Cool White, White
Place of Origin Guangdong, China
Brand Name Bright SMD5630 LED Bar Light
Model Number BG-1707-5630-60

Specifications

SMD5630 LED Bar Light,smd led bar light 5630,light 5630 bar
1.Voltage:DC12V SMD5630
2.SMD 5630 LED bar
3.Lumen:40-45Lm/LED

SMD5630 LED Bar Light,smd led bar light 5630,light 5630 bar
FEATURES

1. Work voltage DC12V/24V

2.Working current ( one meter): 400mA/600mA

3. Standard length: 1meters/pc.

4.PCB Width: 10mm , 12mm

5.Rigid strip, cuttable every 3/6leds.

6.Available Color: White, Warm White.

7.White PCB are available.

8.SMD5630, 60LEDs/meter.

10.Sign chip or 3 chips LEDs are available.

11.Beam Angle: 120 degree.

12.Light decay: Less than 5% after 1000 hours constant work.

13.Protect range: non-waterproof or waterproof IP65.

14.Can be waterproof with silicon cover.

15.Can be waterproof with nanomaterials coating.

16.Life Span: 50,000-80,000 hours.

17.Hight Lumen:2400Lm/m

SMD5630 LED Bar Light,smd led bar light 5630,light 5630 bar



SMD5630 LED Bar Light,smd led bar light 5630,light 5630 bar



SMD5630 LED Bar Light,smd led bar light 5630,light 5630 bar



SMD5630 LED Bar Light,smd led bar light 5630,light 5630 bar



SMD5630 LED Bar Light,smd led bar light 5630,light 5630 bar



SMD5630 LED Bar Light,smd led bar light 5630,light 5630 bar

IP65 Waterproof 5630 LED Bar:

SMD5630 LED Bar Light,smd led bar light 5630,light 5630 bar



SMD5630 LED Bar Light,smd led bar light 5630,light 5630 bar



SMD5630 LED Bar Light,smd led bar light 5630,light 5630 bar



SMD5630 LED Bar Light,smd led bar light 5630,light 5630 bar

5050 led bar:

Specification

Product NO.

LED TYPE

LED Qty.

Voltage

Current

Luminous Flux(lm)

Power

Color

PCB Material

IP Grade

View

 Angle

Size:mm

BG-1701-3528-60

SMD3528

60Pcs/m

12V DC

0.4 A

300-350

9.6 W

Single color

FR-4

No

120°

1000*8*4

BG-1702-3528-60

SMD3528

60Pcs/m

12V DC

0.8 A

290-335

9.6 W

Single color

FR-4

No

120°

1000*10*7

BG-1702A-3528-60

SMD3528

60Pcs/m

12V DC

0.8 A

275-325

9.6 W

Single color

FR-4

IP65

120°

1000*10*7

BG-1703-5050-60

SMD5050

60Pcs/m

12V DC

1.2 A

840-870

14.4W

Single color /RGB

FR-4

No

120°

1000*12*4

BG-1704-5050-60

SMD5050

60Pcs/m

12V DC

1.2 A

830-860

14.4W

Single color /RGB

FR-4

No

120°

1000*12*7

BG-1704A-5050-60

SMD5050

60Pcs/m

12V DC

1.2 A

810-840

14.4W

Single color /RGB

FR-4

IP65

120°

1000*12*7

BG-1705-5050-72

SMD5050

72Pcs/m

12V DC

1.45 A

970-980

17.5W

Single color /RGB

MCPCB

No

120°

1000*8*4

BG-1706-5050-72

SMD5050

72Pcs/m

12V DC

1.45 A

930-950

17.5W

Single color /RGB

MCPCB

No

120°

1000*12*20

BG-1706A-5050-72

SMD5050

72Pcs/m

12V DC

1.45 A

910-940

17.5W

Single color /RGB

MCPCB

IP65

120°

1000*12*20

APPLICATIONS

Jewelry counter lighting

Indoor decorative lighting and backlighting

Emergency hallway lighting

Auditorium walkway lighting

Indoor/outdoor illuminated signs and advertisements

Backlighting for larger size ad-signs

Elegant interior decoration

Nice accent lighting lamps

Landscape outlines, etc.

Signal lighting



SMD5630 LED Bar Light,smd led bar light 5630,light 5630 bar





SMD5630 LED Bar Light,smd led bar light 5630,light 5630 bar

Express Delivery:

 SMD5630 LED Bar Light,smd led bar light 5630,light 5630 bar

Payment Terms:

1.T/T (in advance)

2.Paypal

3.Western Union
