Home > Lights & Lighting > LED Lighting Decoration > LED Strip Light > 3leds Cuttable DC12V 5630 LED Bar Strip Light, SMD5630 Led Rigid Strip Bar, Samsung Led Hard Rope Light

3leds Cuttable DC12V 5630 LED Bar Strip Light, SMD5630 Led Rigid Strip Bar, Samsung Led Hard Rope Light

3leds Cuttable DC12V 5630 LED Bar Strip Light, SMD5630 Led Rigid Strip Bar, Samsung Led Hard Rope Light thumbnail-1

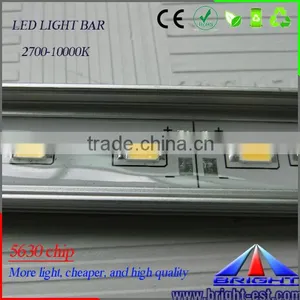

3leds Cuttable DC12V 5630 LED Bar Strip Light, SMD5630 Led Rigid Strip Bar, Samsung Led Hard Rope Light thumbnail-2

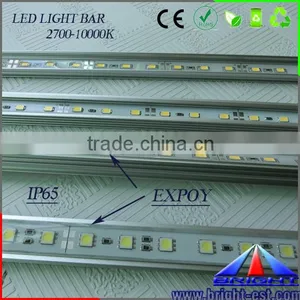

3leds Cuttable DC12V 5630 LED Bar Strip Light, SMD5630 Led Rigid Strip Bar, Samsung Led Hard Rope Light thumbnail-3

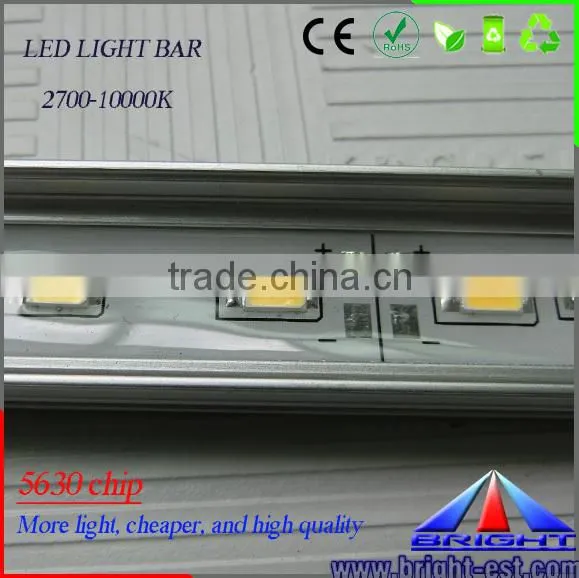

3leds Cuttable DC12V 5630 LED Bar Strip Light, SMD5630 Led Rigid Strip Bar, Samsung Led Hard Rope Light photo-1

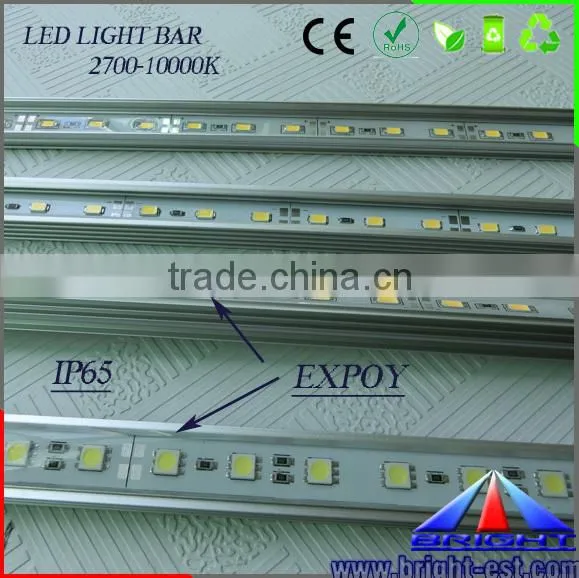

3leds Cuttable DC12V 5630 LED Bar Strip Light, SMD5630 Led Rigid Strip Bar, Samsung Led Hard Rope Light photo-2
3leds Cuttable DC12V 5630 LED Bar Strip Light, SMD5630 Led Rigid Strip Bar, Samsung Led Hard Rope Light photo-3
US$ 3 - 6 MOQ: 20 Meters
Key Specifications
Get Latest Price
LED Light Source:
LED SMD5630
Type:
LED Bar Lights
Input Voltage(V):
DC12V
Contact Supplier Request Quote Chat Now
Shenzhen Bright Technology Industrial Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
ShenZhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source LED SMD5630
Type LED Bar Lights
Input Voltage(V) DC12V
Lamp Power 24W/m
Lamp Luminous Flux(lm) 2200
Color Temperature(CCT) 2700-25000K
Working Temperature(℃) -20, 60
Working Lifetime(Hour) 50000
Lamp Body Material Aluminum Alloy
Certification CE, EMC, LVD, CE
Emitting Color Other, white/warm white/ cold white
Place of Origin Guangdong, China
Brand Name Bright Led Light Bar
Model Number BG-1708-5630-60

LED Light Bar SMD5630, Samsung aluminum LED Light Strip 5630

Product Description

SMD5630 bar light

FEATURES:

1.  Work voltage DC12V

2.  Working current ( one meter): 400mA/600mA

3.  Standard length: 1meters/pc.

4.  PCB Width: 10mm , 12mm

5.  Rigid strip, cuttable every 3leds.

6.  Available Color: White, Warm ol white

7.  White PCB are available.

8.  SMD5630, 60LEDs/meter, 72LEDs/meter are available.

9. Beam Angle: 120 degree.

10. Light decay: Less than 5% after 1000 hours constant work.

11. Protect range: non-waterproof or waterproof IP65.

12. Can be waterproof with silicon cover.

13. Can be waterproof with nanomaterials coating.

14. Life Span: 50,000-80,000 hours.

15. Hight Lumen:2200Lm/m



Detailed Images

IP20 Non aluminium profile:

3leds cuttable DC12V 5630 LED bar strip light, SMD5630 led rigid strip bar, Samsung led hard rope light

IP20 with aluminium profile

3leds cuttable DC12V 5630 LED bar strip light, SMD5630 led rigid strip bar, Samsung led hard rope light

IP65 with Aluminium prfile

3leds cuttable DC12V 5630 LED bar strip light, SMD5630 led rigid strip bar, Samsung led hard rope light

with aluminium profile and PC cover

3leds cuttable DC12V 5630 LED bar strip light, SMD5630 led rigid strip bar, Samsung led hard rope light3leds cuttable DC12V 5630 LED bar strip light, SMD5630 led rigid strip bar, Samsung led hard rope light

3leds cuttable DC12V 5630 LED bar strip light, SMD5630 led rigid strip bar, Samsung led hard rope light

smd5050:

3leds cuttable DC12V 5630 LED bar strip light, SMD5630 led rigid strip bar, Samsung led hard rope light

SMD3528:

3leds cuttable DC12V 5630 LED bar strip light, SMD5630 led rigid strip bar, Samsung led hard rope light

SMD2835:

3leds cuttable DC12V 5630 LED bar strip light, SMD5630 led rigid strip bar, Samsung led hard rope light

Applications:

 3leds cuttable DC12V 5630 LED bar strip light, SMD5630 led rigid strip bar, Samsung led hard rope light

Certifications

3leds cuttable DC12V 5630 LED bar strip light, SMD5630 led rigid strip bar, Samsung led hard rope light

Our Services

1.Your inquiry related to our products or prices will be replied within 24 hours.

2.Well-trained and experienced staffs to answer all your enquires in fluent English.

3.OEM & ODM welcomed, our professional R&D dept. will realize your customized lighting.

4.Distributorship is offered for your unique design and some of our current models.

5.Protection of your sales area, ideas of design and all your private information

Why choose us:

1.Advanced machinery, well trained workers.

2.5 years experience in LED lighting industry.

3.Unique designed, good quality, competitive price.

4.Full range of indoor and outdoor LED lighting solution.

5.Zero improper after-sales service if any quality issue happened

If there any questions, pls don't hesitate to contact me!!!

Express and Payment

Express Delivery:

3leds cuttable DC12V 5630 LED bar strip light, SMD5630 led rigid strip bar, Samsung led hard rope light

Payment Terms:

1.T/T (in advance)

2.Paypal

3.Western Union

Company Information

3leds cuttable DC12V 5630 LED bar strip light, SMD5630 led rigid strip bar, Samsung led hard rope light
