SAMSUNG 5630 Light Bar, LED Light Bar, 12V LED Light Bar for Light Box Backlight
- ShenZhen
- Credit Card
You May Like
-
Touch Control & WIFI Wireless Remote Control LED Light Bar Dimmable
-
300mm 600mm 900mm 1000mm Touch Control LED Linear Light Fixture Dimmable Ra>96
-
WIFI Remote Control LED Linear Rigid Strip Light Ra>96
-
2835 LED Linear Light Touch & Wireless Remote Control Dimmable
-
Multi Color Led Strip RGB Light, , Aluiminum Profile Led Strip SMD5050 RGB Colors
-
5050 Epistar Rigid Led Strip Light, RGB Led Bar Lights, 60 Leds Lights Aluminum Led Strip DC12V
Product Details
| LED Light Source | LED SMD5630 | Type | LED Bar Lights | |
| Input Voltage(V) | DC12V/24V | Lamp Power | 28W/m | |
| Lamp Luminous Flux(lm) | 2600/m | Color Temperature(CCT) | 2700-7500K | |
| Working Temperature(℃) | -20, +60 | Working Lifetime(Hour) | 50000 | |
| Lamp Body Material | Aluminum Alloy | Certification | CCC, CE, EMC, LVD, CE | |
| Emitting Color | Other, White,Warm White,Cool White, White | Place of Origin | Guangdong, China | |
| Brand Name | Bright | Model Number | BG-1707-5630-72 |
Product Description
Specifications
72LEDs/m 5630/5730 LED Bar Light1.Voltage:DC12V/24V SMD5630
2.CE ROHS SMD 5630 LED light bar
3.Lumen:55-60Lm/LED
4. 28w/m
5630 led light bar, samsung light bar led, 5630 led sign for advertise and storage rack
FEATURES
1. Work voltage DC12V/24V
2. Working current ( one meter): 400mA/600mA
3. Standard length: 1meters/pc.
4. PCB Width: 10mm , 12mm
5. Rigid strip, cuttable every 3/6leds.
6. Available Color: White, Warm White.
7. White PCB are available.
8. SMD5630, 60LEDs/meter.
10. Sign chip or 3 chips LEDs are available.
11. Beam Angle: 120 degree.
12. Light decay: Less than 5% after 1000 hours constant work.
13. Protect range: non-waterproof or waterproof IP65.
14. Can be waterproof with silicon cover.
15. Can be waterproof with nanomaterials coating.
16. Life Span: 50,000-80,000 hours.
17. Hight Lumen:2400Lm/m

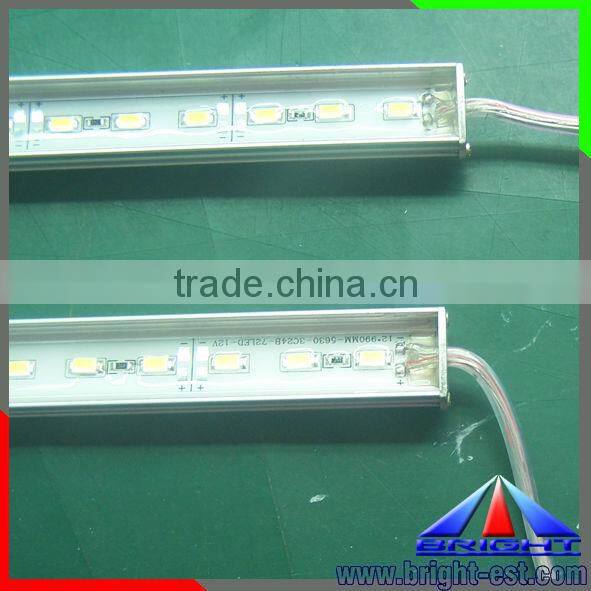

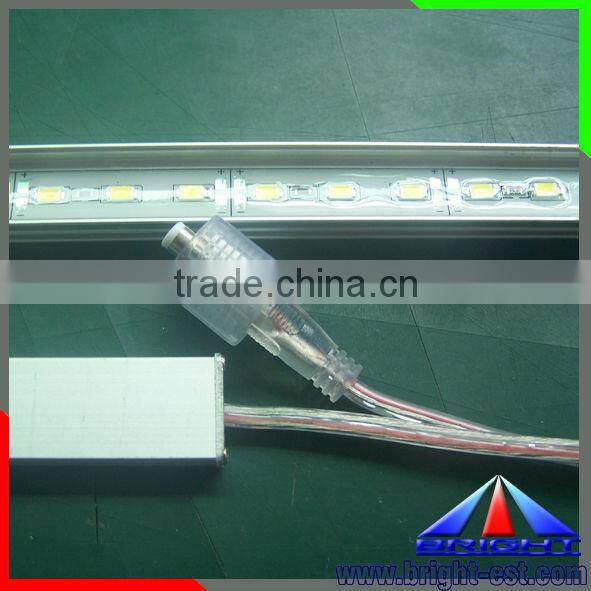

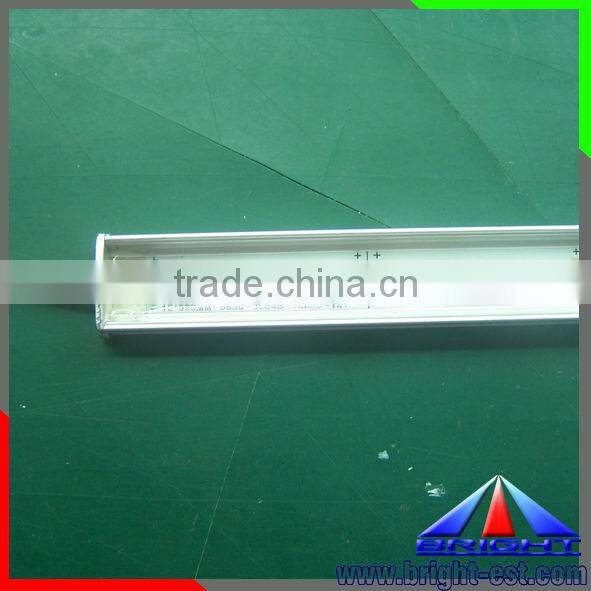

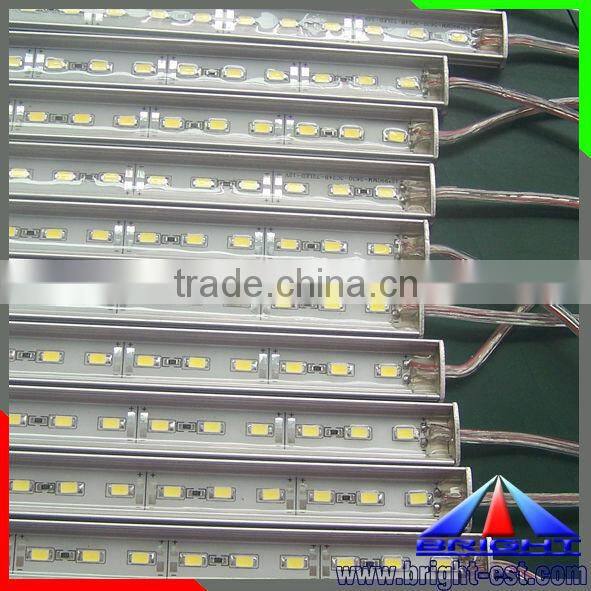

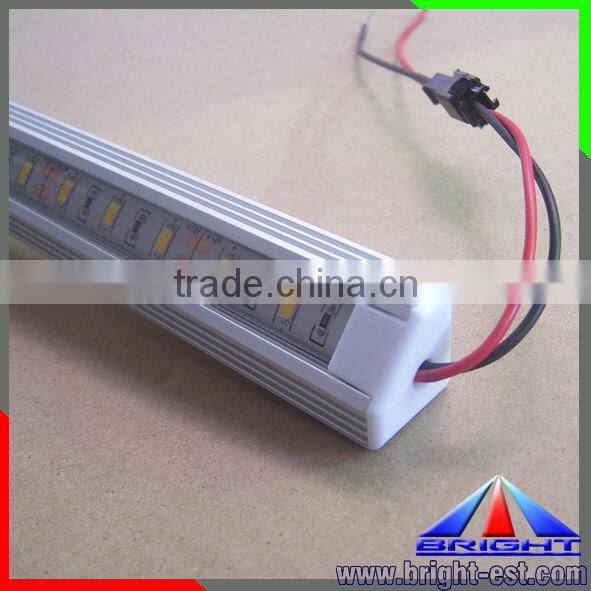

Aluminum 5630 led light bar:

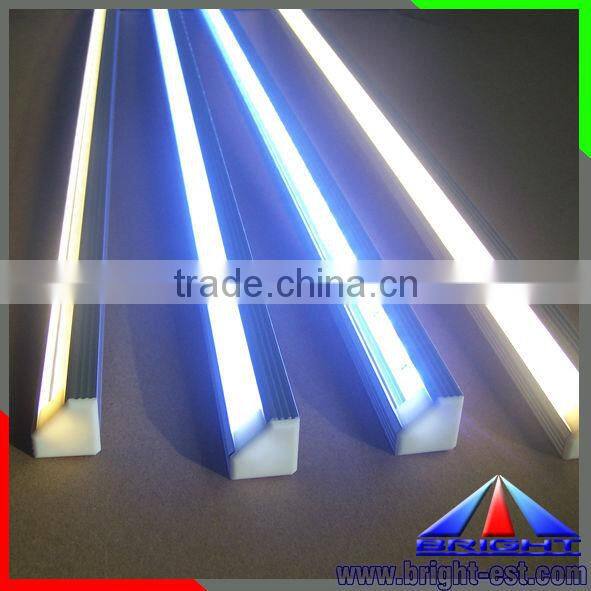

5050 led light bar with different aluminum profile:

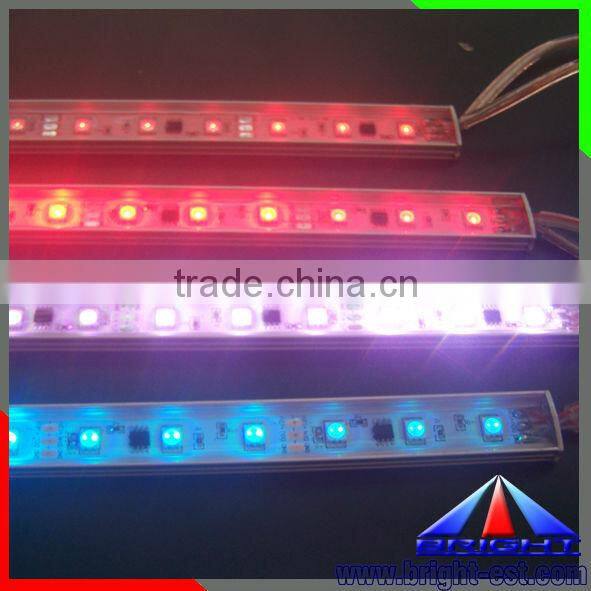

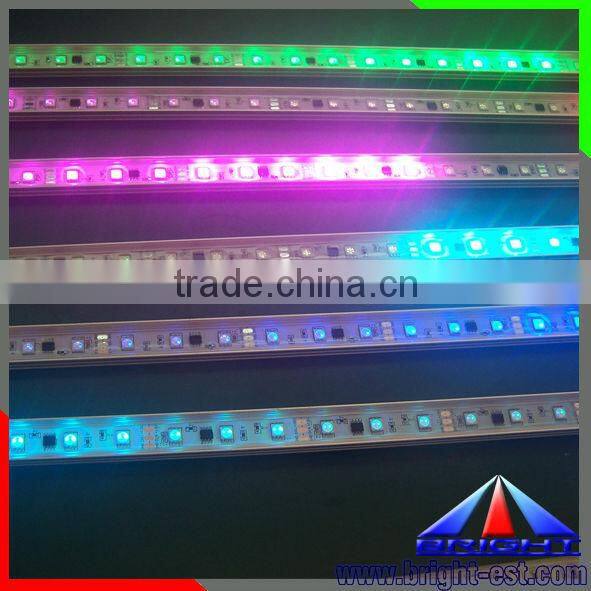

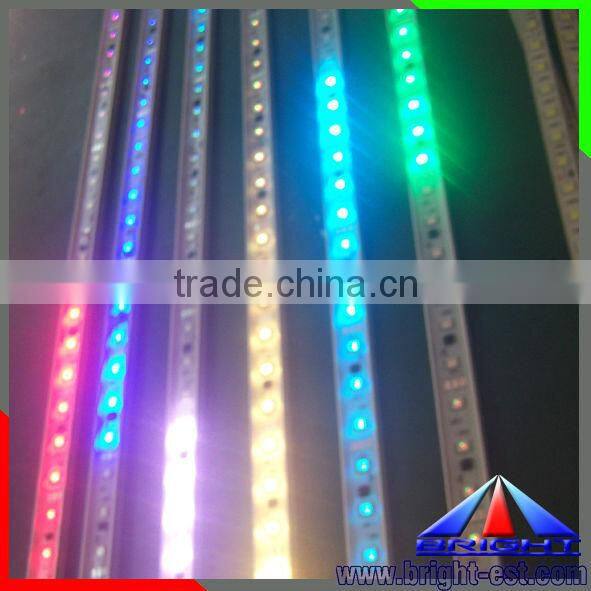

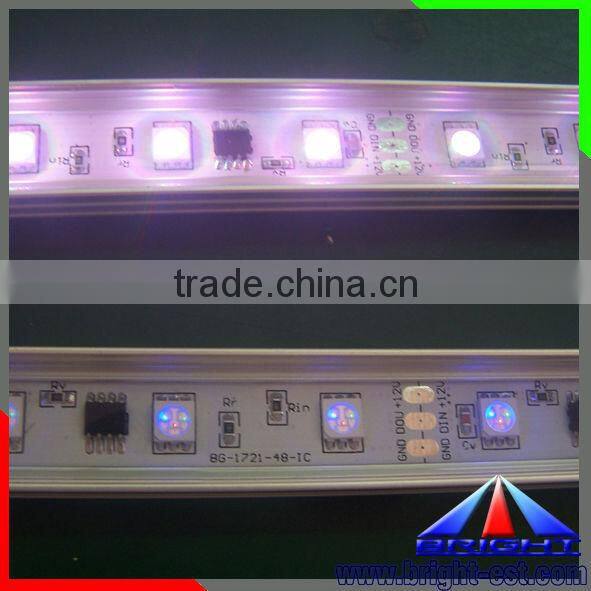

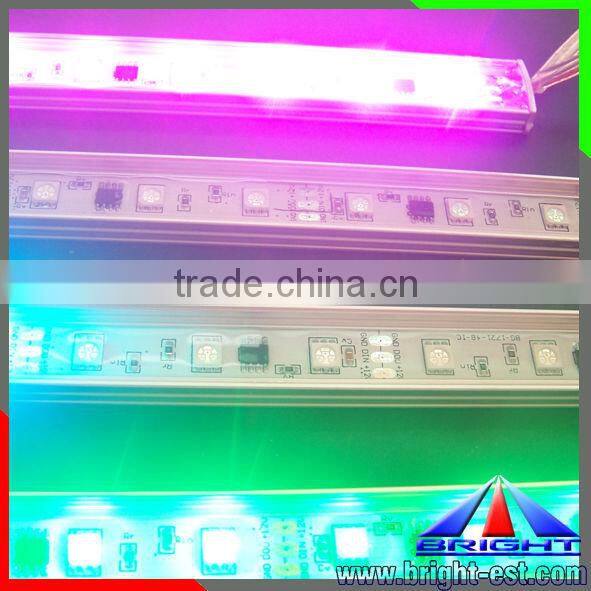

5050 led bar digital magic with UCS1903 IC, led pixel light:
Specifications
Product NO. | LED TYPE | LED Qty. | Voltage | Current | Luminous Flux(lm) | Power | Color | PCB Material | IP Grade | View Angle | Size:mm |
BG-1701-3528-60 | SMD3528 | 60Pcs/m | 12V DC | 0.4 A | 300-350 | 9.6 W | Single color | FR-4 | No | 120° | 1000*8*4 |
BG-1702-3528-60 | SMD3528 | 60Pcs/m | 12V DC | 0.8 A | 290-335 | 9.6 W | Single color | FR-4 | No | 120° | 1000*10*7 |
BG-1702A-3528-60 | SMD3528 | 60Pcs/m | 12V DC | 0.8 A | 275-325 | 9.6 W | Single color | FR-4 | IP65 | 120° | 1000*10*7 |
BG-1703-5050-60 | SMD5050 | 60Pcs/m | 12V DC | 1.2 A | 840-870 | 14.4W | Single color /RGB | FR-4 | No | 120° | 1000*12*4 |
BG-1704-5050-60 | SMD5050 | 60Pcs/m | 12V DC | 1.2 A | 830-860 | 14.4W | Single color /RGB | FR-4 | No | 120° | 1000*12*7 |
BG-1704A-5050-60 | SMD5050 | 60Pcs/m | 12V DC | 1.2 A | 810-840 | 14.4W | Single color /RGB | FR-4 | IP65 | 120° | 1000*12*7 |
BG-1705-5050-72 | SMD5050 | 72Pcs/m | 12V DC | 1.45 A | 970-980 | 17.5W | Single color /RGB | MCPCB | No | 120° | 1000*8*4 |
BG-1706-5050-72 | SMD5050 | 72Pcs/m | 12V DC | 1.45 A | 930-950 | 17.5W | Single color /RGB | MCPCB | No | 120° | 1000*12*20 |
BG-1706A-5050-72 | SMD5050 | 72Pcs/m | 12V DC | 1.45 A | 910-940 | 17.5W | Single color /RGB | MCPCB | IP65 | 120° | 1000*12*20 |
APPLICATIONS

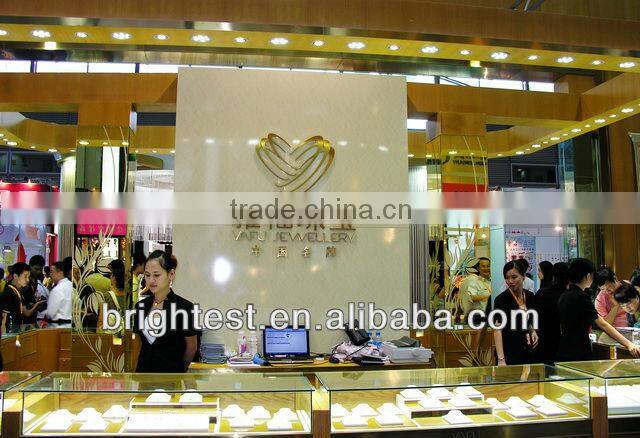

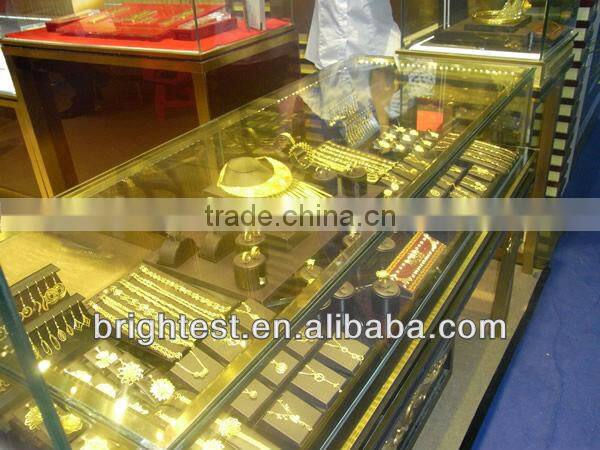

- Jewelry counter lighting
- Indoor decorative lighting and backlighting
- Emergency hallway lighting
- Auditorium walkway lighting
- Indoor/outdoor illuminated signs and advertisements
- Backlighting for larger size ad-signs
- Elegant interior decoration
- Nice accent lighting lamps
- Landscape outlines, etc.
- Signal lighting
