Home > Products > Performance connecting rod kit > YZ250 Connecting Rod Kit 250cc dirt bike motorcycle parts
YZ250 Connecting Rod Kit 250cc dirt bike motorcycle parts
- 5000 Piece / Pieces per Month
- Taiwan Port
Product Details
Place of Origin: | Taiwan | Brand Name: | TOP, Chorng Ko | Model Number: | YZ250 1999-2014 |
Product Description

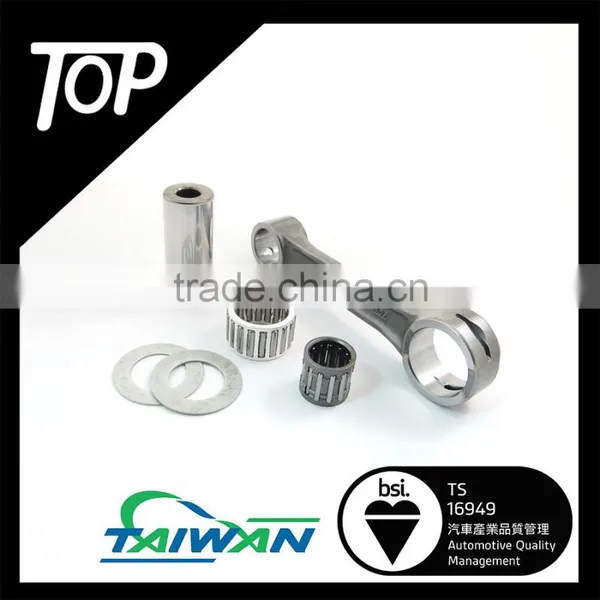

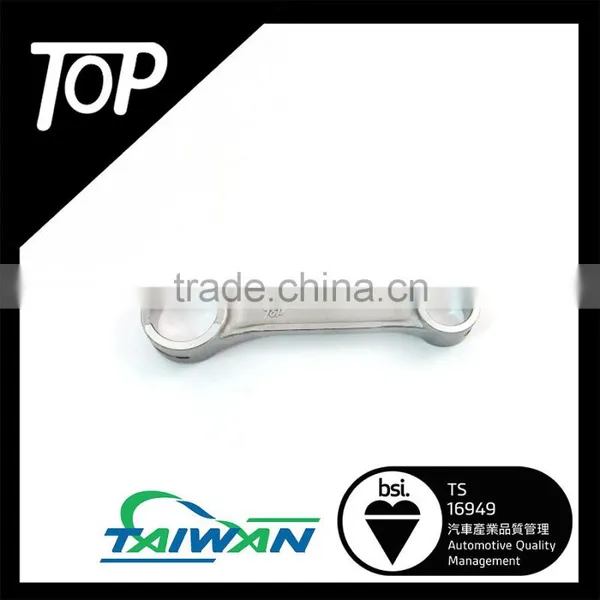

Reinforced Connecting Rod Kit For Model YZ250 1999-2014
250cc dirt bike motorcycle parts
(More information : )
Technical Specifications | |

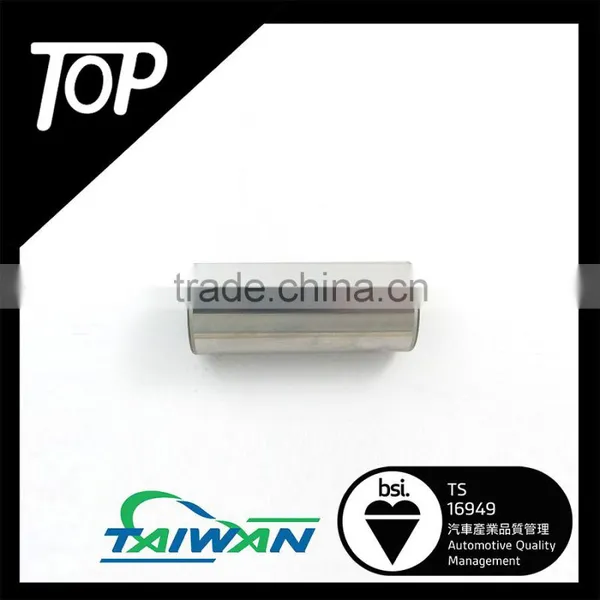

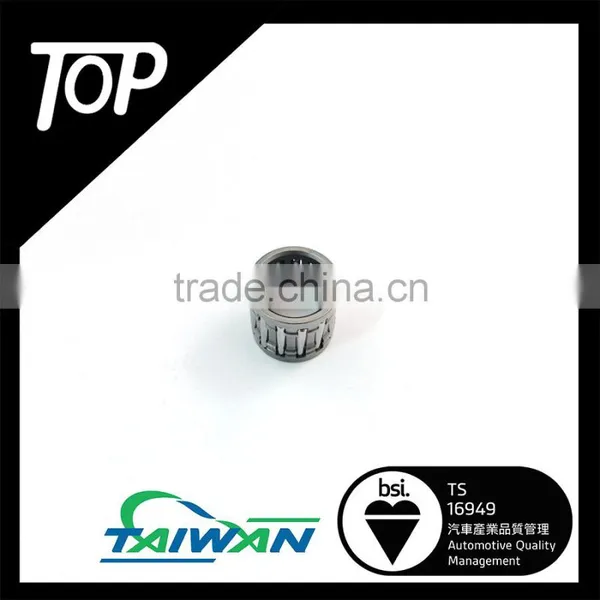

Big-end Width (mm): 17 Small-end Width (mm): 19.9 Big-end Bore (mm): 31 Small-end Bore (mm): 22 Center-to-center (mm): 125 Pin Diameter (mm): 24 Pin Length (mm): 58.7 Big-end Bearing (mm): 24*31*17 Small-end Bearing (mm): 18*22*22 Washer Thickness (mm): 0.8 |
Characteristics
+ Nickel Contained High Strength Material
+ High Compatibility of Rod Kit
+ Smooth Surface Treatment
+ Long-lasting Life
+ ISO/TS 16949 Quality System
+ Famous OEM Factory Product
+ Competitive Price
Measurement | Scope Tolerance | Instrument | Capability |
Bore Diameter | ±0.005mm | Bore Gauge (Sunnen) | 0.001mm |
Bore to Bore Distance | ±0.05mm | Micro-Hite Gauge (TESA) | 0.001mm |
Rod Thickness | ±0.05mm | Micrometer (Mitutoyo) | 0.001mm |
Hardness | HRC 25~45 | Hardness Testing Machine (Mitutoyo) | 1 HRC |
Roundness / Cylindricity | 0.003mm | Round Tester (Mitutoyo) | 0.01µm |
Roughness | Under Ra 0.2µm | Roughness Meter (Mitutoyo) | 0.01µm |
Parallelism | 0.05/100 | Indicator (Mitutoyo) | 0.01mm |
Ring Gauge Correction | ±1µm | Universal Length Measuring Instrument (Helios) | 0.1µm |
Rod Profile | ±0.30mm | Video Measuring System (ARCS) | 0.5µm |
ISO/TS 16949 Certification
Process Control
We believe that the best products are produced only when the process control system is well established. With more than 20 years experience of manufacturing, Chorng Ko has organized a strict and efficient process management system to ensure every rod is made with excellent quality. Continuous improvement is one of our important principles. We keep modify our processes to achieve higher yielding and higher specification. Needs from customer are our motivation to get better and better.
Main Equipment
+ Computer-aided Shaping Machine(600 Ton) | + CNC Bore Grinding Machine |
+ CNC Lathe | + Horizontal Bore Honing Machine |
+ CNC Machine Center | + Vertical Bore Honing Machine (Automatic Sizing) |
+ Programmable Tempering Oven | + Automatic Packing Machine |
+ Double-disc Vertical Grinding Machine | + Vacuum Packing Machine |
+ Double-disc Horizontal Grinding Machine |
|
About Chorng Ko
Chorng Ko IND., founded in 1993, are specialized in research and developing in connecting rod, especially for high quality motocross bike reinforced connecting rod kits. Our company incorporates high precision machinery and inspection equipment from German, Japan, USA as well as domestic. Currently we are ISO9001 and ISO/TS 16949 certified company. Based on the strict and well controlled quality system, every motocross bike connecting rod is guaranteed that the quality is second to none. We supply to customers worldwide with outstanding reputation for high quality, competitive pricing and satisfying customer service.
Chorng Ko works with varies of motorcycle OEM companies including SYM, KYMCO, AEON, PGO, Dinli, etc. Aftermarket parts for scooter, motorcycle, outboard engine, motocross bike, PWC, ATV, are well developed with excellent public praise and outstanding satisfaction in what we do and what we can do. Strong and long-lasting connecting rods with lightweight design are produced for motocross bike application. Our fracturing-splitting technique applied to marine rod is especially famous in this field.
We welcome your phone cell, comments, requests and certainly welcome the opportunity to cooperate the business with your company when it comes to the connecting rods.
Contact Us
- CHORNG KO CO., LTD.
- Contact nameJames Chou
- Phone886-4-23399996
- AddressNo. 75, Ln. 376
