Specifications
Brand: TOP, Chorng KoPlace of Origin: Taiwan
Type: CNC Machining H Beam Connecting Rod Auto Spare Parts
ISO System: ISO/TS
CNC Machining H Beam Connecting Rod Auto Spare Parts
(More information: )
(More information: http://chorngko.en.china.cn/)
A Series of high quality H beam connecting rods for modified car application are developed and produced. The H beam connecting rods are forged from high strength Nickel-contained Chromoly steel. All dimensions are strictly controlled during the manufacturing process, resulting in excellent dynamic performance because the weight of connecting rod is in the same level.
Our product can satisfy your need with higher power and more fun!
•Characteristics:
1. High Strength Nickel-Contained Chromoly Steel
2. Excellent Weight Control
3. Long-lasting Life
4. ISO/TS 16949 Quality System
5. Famous OEM Factory Product
6. Competitive Price
•ISO/TS 16949 Certifiacation:

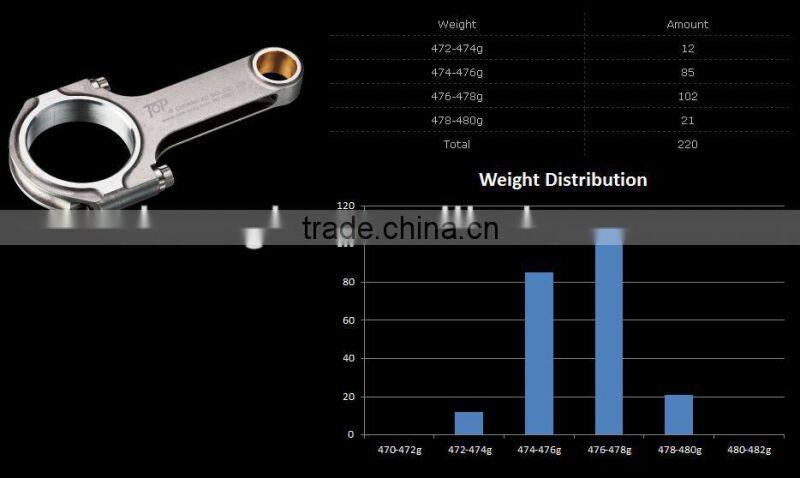

•Weight Control:
•Quality Control:
Measurement |
Scope Tolerance |
Instrument |
Capability |
Bore Diameter |
±0.005mm |
Bore Gauge (Sunnen) |
0.001mm |
Bore to Bore Distance |
±0.05mm |
Micro-Hite Gauge (TESA) |
0.001mm |
Rod Thickness |
±0.05mm |
Micrometer (Mitutoyo) |
0.001mm |
Hardness |
HRC 25~45 HRC 59~63 |
Hardness Testing Machine (Mitutoyo) |
1 HRC |
Roundness / Cylindricity |
0.003mm |
Round Tester (Mitutoyo) |
0.01μm |
Roughness |
Under Ra 0.2μm |
Roughness Meter (Mitutoyo) |
0.01μm |
Parallelism |
0.05/100 |
Indicator (Mitutoyo) |
0.01mm |
Ring Gauge Correction |
±1μm |
Universal Length Measuring Instrument (Helios) |
0.1μm
|
Rod Profile |
±0.30mm |
Video Measuring System (ARCS) |
0.5μm |
•SPC Results:
•Production Process Flow Chart:
• About Chorng Ko
Chorng Ko IND., founded in 1993, are specialized in research and developing in connecting rod as well as manufacturing. Our company incorporates high precision machinery and inspection equipment from German, Japan, USA as well as domestic. Currently we are ISO9001 and ISO/TS 16949 certified company. Based on the strict and well controlled quality system, every connecting rod is guaranteed that the quality is second to none. We supply to customers worldwide with outstanding reputation for high quality, competitive pricing and satisfying customer service.
Chorng Ko works with varies of motorcycle OEM companies including SYM, KYMCO, AEON, PGO, Dinli, etc. Aftermarket parts for scooter, motorcycle, outboard engine, motor cross, PWC, ATV, are well developed with excellent public praise and outstanding satisfaction in what we do and what we can do. Strong and long-lasting rods with lightweight design are produced for specialty equipment market. Our fracturing-splitting technique applied to marine rod is especially famous in this field.
We welcome your phone cell, comments, requests and certainly welcome the opportunity to cooperate the business with your company when it comes to the connecting rod.
