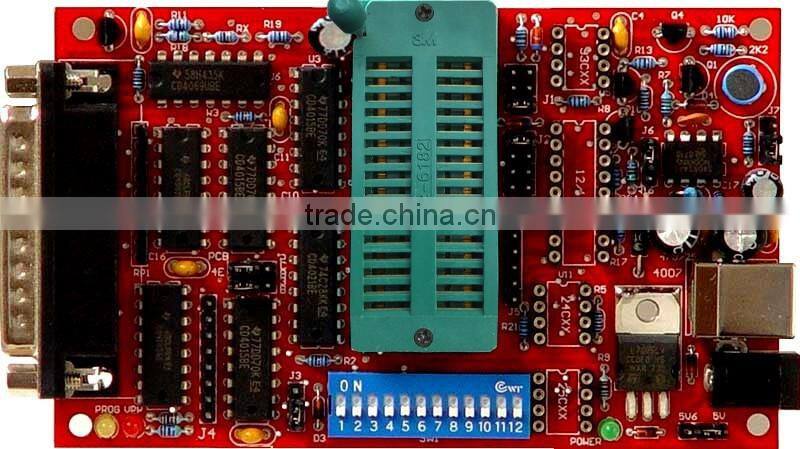

Willem EPROM Programmer PCB4-E

Willem EPROM Programmer PCB4-E

1.VERSION

Last PCB version:PCB4-E;software:0.98D13
    Enhanced power supply.
   Enhanced VPP voltage supply.
   PCB wiring optimization.
   DC power and USB power auto Switching.

Data signal optimization.
   Cancel PCB4-PCB3B switch.

2. PACKAGE INCLUDES

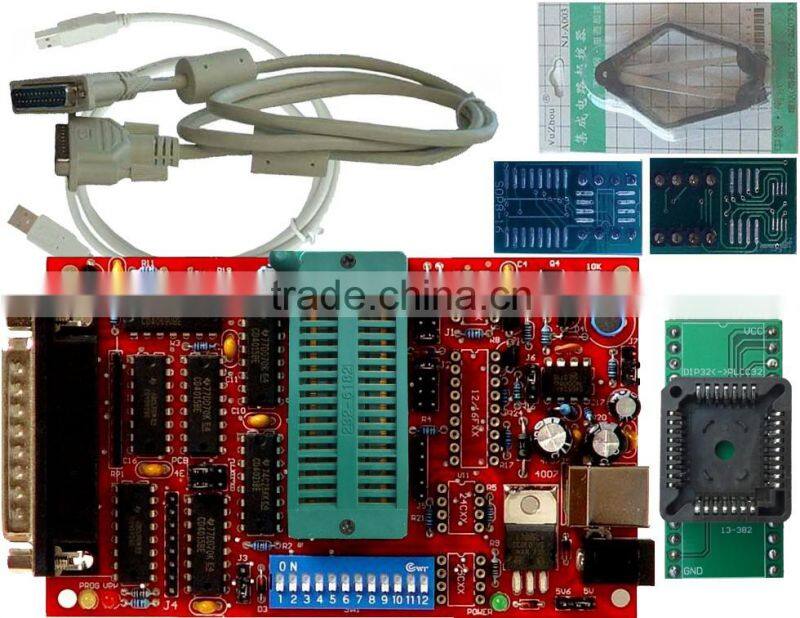

1.) Willem EPROM Programmer PCB4-E

2.) DIP-PLCC32 Adapter

3.) USB Cable (for power supply)

4.) Computer cable DB25 (for data communication)

5.) PLCC Extractor

6.) Simple SOIC8 Socket 150mil to DIP8 Adapter

3.Description:

This is the newest Willem EPROM Progrmmaer from the original producer/developer of Willem EPROM Programmer version: PCB3b, PCB3.5, PCB4C, PCB4.5C, PCB50 and software versions:0.98D11, 0.98D10, 0.98D9, 0.98D5 , 0.98D2, 0.97ja, 0.97j, 0.97i+, 0.98i or (0.97i), 0.97h and 0.97g.

This new hardware version (PCB50) is is more STABLE than all old PCB version and increase supports 3V3-3V6 SPI Flash devices. * SPI flash chips are found on new motherboards, DVD burners, hard drives etc.

Updated Newest Software Willem EPEOM PCB50a(0.98D12) support the SPI FLASH chips (AMIC, ATMEL, EON, MXIC, Numonyx (ST), P-FLASH, SPANSION, SST, WINBOND, GigaDevice, MicroChip ) more than the all version and improved the models of algorithms focusing on SST 25 series .

Latest software 0.98D12 improve W39V040, W39V040A; W39V040FA; W39V040BP; W39V040FBP; W39V040FCP; W39V040FCPZ; W39V040FBPZ; W39V080APZ; W39V080AP; W39V080FA; W39V080FAZ Programming to flash, 100% perfect.

4.Applications:

Refreshing , Upgrading, Programming BIOS chips.

Copier, Fax machine, Printer main board maintaining or repairing.

VCD, DVD, Color TV maintaining or repairing.

Neon Light Controller code writing.

MCU development - programming for MCS-51 series, AVR series and PIC series MCU.

Repairing, reading, writing, programming PC motherboard BIOS Chips.

Upgrade the chip in your cars computer.

Programming MicroChip PIC Micros.

Programming ATMEL AVR Micros.

5.Hardware & Software Features:

The newest Willem EPROM PProgrammer PCB50B©. It can program up to 20% - 50% faster than old version of Willem EPROM Programmer have Built-in PLCC32 and PLCC Firmware HUB/LPC on-board

Supported program

- SPI FLASH chips VCC(3.6V)

- EPROM, EEPROM, Serial (I2C) EEPROM, Microwire EEPROM, Microchip PIC

- FLASH Burner (Vpp 12.5V, 21V, 25V), Serial Peripheral Interface (SPI)

- Micro controllers MCS-51, MCS-48

- Test nonvolatile SRAM, static RAM, ATMELand etc.

Willem EPROM PProgrammer PCB50T and PCB4.5C can support the chip 29/39/49LVxxx (Low Voltage 3.3V).

Uses the power supply from the USB Port or AC/DC adaptor power

Note: Higher Vcc voltages (5.6v and 6.2v) will be available when an external AC power supply is used.

Able unprotect the AM29F040B flash memory chip.

The back of circuit board is covered by a sheet of perspex and completely protected from a short circuit.

Supports Win9X, Me, XP, NT, 2000 and VISTA operating systems

Updated software Willem EPEOM PCB50a(0.98D12)© only support The newest Willem EPROM PProgrammer PCB50T.

IMPROVED SUPPORT CHIPS:

--- AMIC –-

A25L05P-B, A25L10P-B, A25L20P-B, A25L05P-T, A25L10P-T, A25L20P-T, A25L512, A25L010, A25L020, A25L040, A25L080;, A25L016

--- ATMEL ---

AT25F512, AT25F1024, AT25F2048, AT25FS010, AT25FS020, AT25F010, AT25F040, AT25DF021, AT25DF041, AT25DF161, AT25DF321, AT25DF641, AT25D081A

--- EON ---

EN25B05, EN25B10, EN25B20, EN25B40, EN25B80, EN25B16, EN25B32, EN25B64, EN25P05, EN25P10, EN25P20, EN25P40, EN25P80, EN25P16, EN25P32, EN25P64, EN25D80, EN25D16, EN25F20, EN25F40, EN25F80, EN25F16, EN25T80

--- MXIC ---

MX25L512, MX25L1005, MX25L2005, MX25L4005, MX25L8005, MX25L1605, MX25L3205, MX25L6405

--- Numonyx (ST) ---

M25P05, M25P10, M25P20, M25P40, M25P80, M25P16, M25P32, M25P64, M25PE10, M25PE20, M25PE40, M25PE80, M25PX80, M25PX16, M25PX32, M25PX64

--- P-FLASH ---

Pm25LV512, Pm25LV010, Pm25LV020, Pm25LV040, Pm25LV080, Pm25LV016

--- SPANSION ---

S25FL004A/040A, S25FL008A, S25FL040A-T, S25FL040A-B, S25FL016A, S25FL032A, S25FL064A.S25L128

--- SST ---

SST25LF020A, SST25LF040A, SST25LF080A, SST25VF512, SST25VF010, SST25VF020, SST25VF020, SST25VF040, SST25VF020B, SST25VF040B, SST25VF080B, SST25VF016B, SST25VF032B, SST25VF064C

--- WINBOND ---

W25P10, W25P20, W25P40, W25P80, W25P16, W25P32, W25X01, W25X02, W25X04, W25X08 , W25X16, W25X32, W25X64 , W25B40A,

--- GigaDevice ---

GD25F40, GD25F80, GD25D40, GD25D80, GD25T80

--- ESMT ---

F25L004A, F25L008A, F25L016A, F25L032PA, A, , F25L04UA, F25S04PA, F25S08PA, F25S16PA, F25L32QA

--- MicroChip ---

25LC(AA)1024

Can be expanded by adding various adapters (Optional)

-. PIC + adapter, 16 bit 40pin/42pin Adapter, PLCC32, PLCC44

-. ATMEL AT89/MCS-51, FWH/HUB adapter-. TSOP48, TSOP32 Adapter and more.

Uses the power supply from a USB port or from an optional power supply or plug pack (not supplied)

Note: Higher Vcc voltages (5.6v and 6.2v) will be available when an external AC power supply is used. The back of circuit board is covered by a sheet of perspex and completely protected from a short circuit.
