Standard Non-alarm Quartz Clock Movement

Standard Non-alarm Quartz Clock Movement thumbnail-1
Standard Non-alarm Quartz Clock Movement photo-1
US$ 0.6 - 0.8 MOQ: 2000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
OSTAR
Model Number:
F333-CB-12.7
Contact Supplier Request Quote Chat Now
Puning Hongyang Gostar Electronic Clock Factory
Payment & Shipping
Payment Methods:
Port of Shipment:
GUANGZHOU
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name OSTAR
Model Number F333-CB-12.7

Specifications

1)standard non-alarm clock movement
2)serie movement for diffrent purpose
3)high quality clock movement
4)RoHS certification



standard non-alarm quartz clock movement



1)Fixing model:screw type;

2)step second movement;

3)knob be assembled;

4)power:AA*1 BATTERY(non-included);

5)with pendulum function.

SPECIFICATIONS

No

Item

Specification
 1 dimension 56*117.6*21.5mm
 2 Average time keeping ±2sec/day at 1.5v,23°C
 3 operating voltage   DC 1.25V to 1.7V
 4 operating temperature  -10 °C to 50°C
 5 average consumption current   ≤180μΑ at 1.5V
 6 torque   ≥150μNM(max torsional load on second shaft)
 7 pendulum length  ≤200mm
8 pendulum weight ≤30g



Model schedule

model No                             shaft length(mm) fixing mode         net weight(g) special function
F333-C-12.7 12.7 screw type 22
F333-CD-12.7 12.7 screw type 26 hourly alarm
F333-G-12.7 12.7 screw type 24 with hanger
F333-CT-14 14 screw type 23
F333-C-16 16 screw type 23
F333-C-16-24H 16 screw type 23 24 hour format

F333-CD-16

  16 screw type  27 hourly alarm
 F333-C-22 22  screw type 24
F333-CD-22  22  screw type 28   hourly alarm
 F333-D-6.3  6.3 snap-in  21
 F333-DD-6.3  6.3  SNAP-IN 22   hourly alarm
F333-Z-9.5     9.5    SNAP-IN      21
F333-ZD-9.5 9.5 snap-in  22 HOURLY ALARM
F333-DB-6.3 6.3 SNAP-IN 41.8 PENDULUM MOVEMENT SIZE:56*117.6*21.5MM

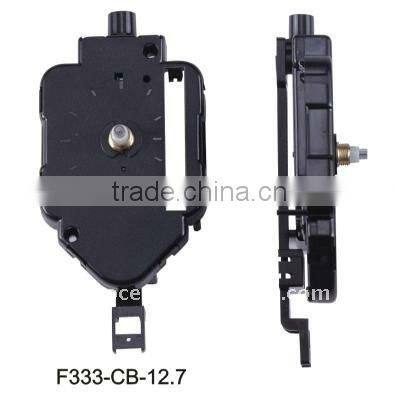

F333-CB-12.7 12.7 screw type 42.8 PENDULUM MOVEMENT SIZE:56*117.6*21.5MM
 F333-CB-16 16  screw type  43.8   PENDULUM MOVEMENT SIZE:56*117.6*21.5MM
 F333-CB-22  22  screw type  44.8   PENDULUM MOVEMENT SIZE:56*117.6*21.5MM


 standard non-alarm quartz clock movement

 standard non-alarm quartz clock movement
