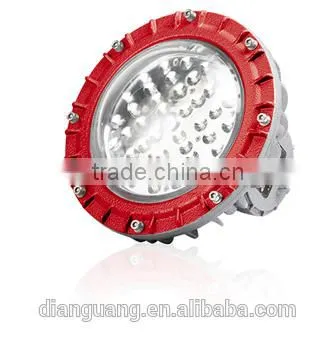

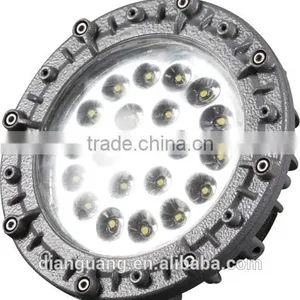

High efficiency LED Explosion proof light fixture used in IP66

High efficiency LED Explosion proof light fixture used in IP66

I. Summary

1. It adopts imported new-type chip to guarantee luminous flux and luminous efficiency. System power is optional from 20W to 40W with long life and high luminous efficiency, which can replace metal halide lamp of 40W~100W, incandescent lamp of 80W~200W, energy-saving lamp of 40W~80W, and electrodeless lamp of 45W~85W.

2. It adopts high intensity aluminum alloy housing, plate glass toughening lamp shade, IIC explosion protection design, and IP66 defense grade. With various selections of installation method and various designs of rated voltage, it provides customers with new-type energy-efficient, safe and reliable, and green lighting equipment.

II. Product Specification

Note: Lamps leave the factory without cable. If you need extra cable, please specify requirements.

III. Product Features

1. Integral structure characteristics

1). It adopts IIC explosion protection design, and IP66 defense grade with good explosion protection and protective function.

2). It adopts borosilicate toughened glass and resists high energy impact.

3). All fastener outsides and accessories are made of stainless steel with high corrosion resistance.

4).Various installation methods are optional.

2. Optical system features

1). Optimization of imported chip, with good luminous flux maintenance and high luminous efficiency.

2). It adopts SMT, drastically improve heat conduction.

3).Cleverly designed honeycomb coordination structure to efficiently improve lamp efficiency.

3. Cooling system features

1).The three independent chambers structure guarantees electronic components’ stability.

2). Heat elimination air guide groove with air diversion structure can guarantee LED light source’ service life.

3). Independent power source chamber structure can guarantee power source’s working free from LED heat, and ensure long term stability.

4. Power system features

1). It adopts constant-current driving, with functions of short-circuit and over voltage.

2).It possesses good EMC/EMI, and makes other electrical apparatus and transmission network free from any interference. The power source itself possesses good anti-EMI ability.

3). It possesses wide voltage compatibility, voltage fluctuation tolerance is 20%.

4).Driving power adopts glue seal technology, make sure component free of corrosion.

5). Multiple rated voltages are optional. It is applied to multiple voltages environment.

IV. The Site and Application

DBAD01-L20/30

l It is suitable for explosive gas atmosphere Zone 1 and Zone 2.

l It is suitable for combustible dust atmosphere Zone 20, Zone 21 and Zone 22.

l It is suitable for IIA, IIB, IIC explosive gas atmosphere.

l It is suitable for temperature classes of T1~T6.

l Lamp power specification: 20W/30W.

l Equipped with power LED light source

l Height: 2.0~4.0meter

l Mounting spacing: 4.0~6.0meter

l It is widely used in hazardous environment of oil exploitation, oil refining, chemical industry, military industry, ship and electric power, etc, and in the explosive protection lighting sites of oil platform and oil tanker.

l Typical sites: petroleum, fossilization, chemical equipments tower, furnace, platform, switch room, operating room, duty office, metering plant, infield pump room, field control room, various medium, low and high pump room, various channels, shipping, inner cabin, painting workshop, power distribution room, workshop control room, and duty office.

DBAD01-L40/50/60

l It is suitable for explosive gas atmosphere Zone 1 and Zone 2.

l It is suitable for combustible dust atmosphere Zone 20, Zone 21 and Zone 22.

l It is suitable for IIA, IIB, IIC explosive gas atmosphere.

l It is suitable for temperature classes of T1~T6.

l Lamp power specification: 40W/50W/60W.

l Equipped with power LED light source

l Height: 4.0~6.0meter

l Mounting spacing: 6.0~8.0meter

l It is widely used in hazardous environment of oil exploitation, oil refining, chemical industry, military industry, ship and electric power, etc, and explosion protection lighting sites of oil platform and oil tanker.

l Typical sites: petroleum, fossilization, chemical equipments tower, furnace, platform, switch room, operating room, duty office, metering plant, infield pump room, field control room, various medium, low and high pump room, various channels, shipping, inner cabin, painting workshop, power distribution room, workshop control room, and duty office.

V. Technical Parameter

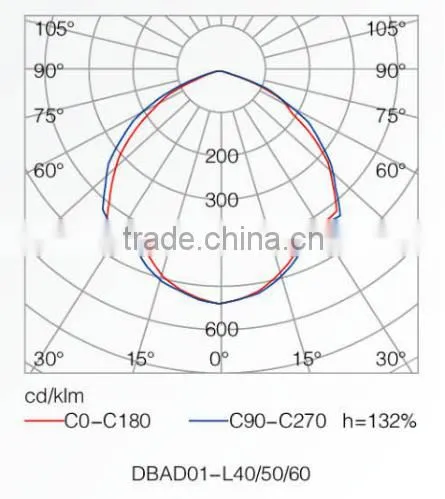

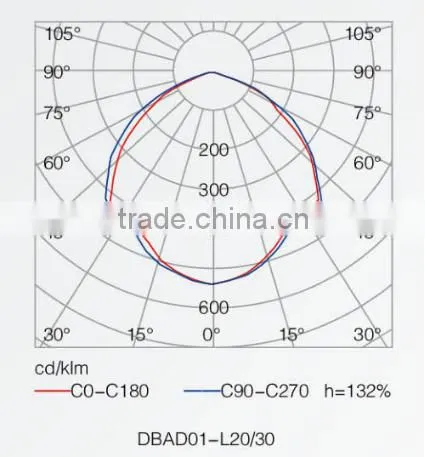

VI. Light Distribution Curve

VII. Illuminance Contrast

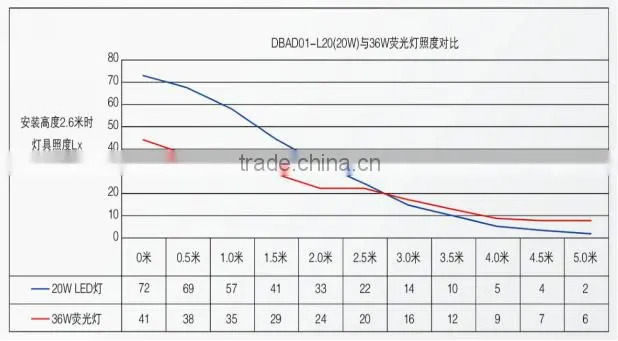

When the installation height is 2.6m:

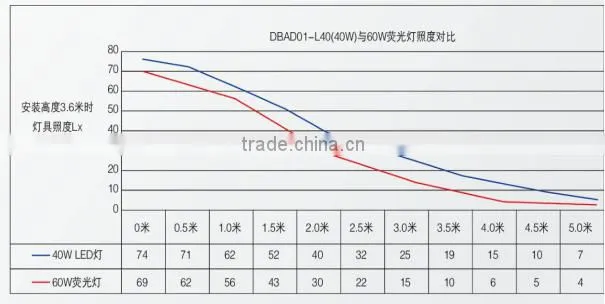

When the installation height is 3.6m:

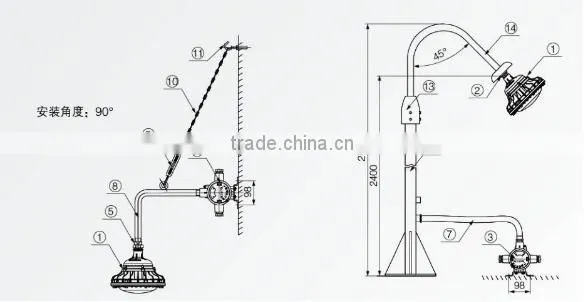

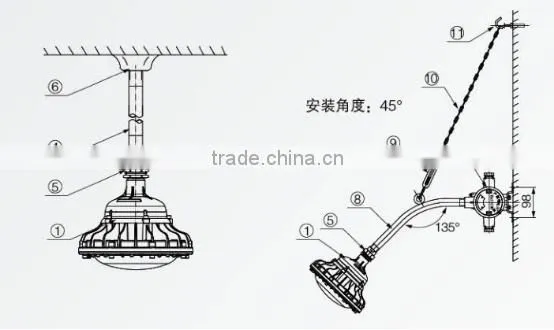

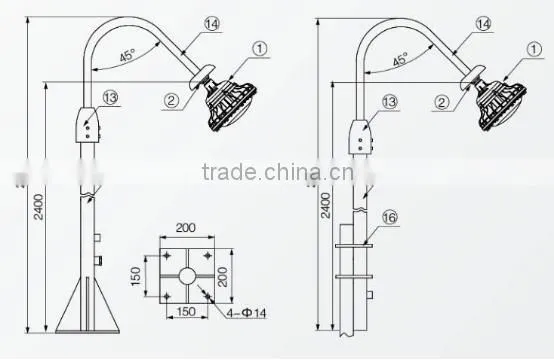

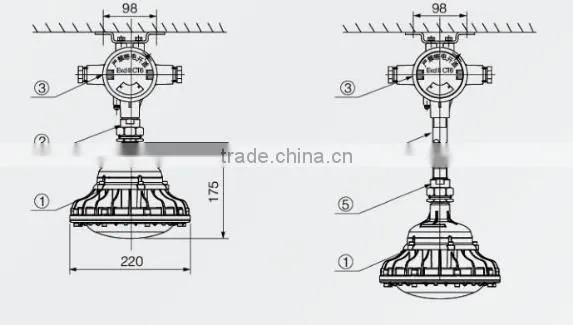

VIII. The Outline and Installation Dimension

DBAD01-L20/30:
